Important: This is special version for external Binding posts,
please remove a few onboard parts from EVAL1 in advanceSample Video by "Mike On Audio":
Is Purifi EVAL1 the Best Option?
What's the DIY case-kit?
- Case-kit is NOT amp-kit, excluding AMP or PSU modules
- Including aluminum encloser, connectors, screws, feet, led and needed internal harness...
- DIY (do-it-yourself) project: All parts packed in bulk, please assemble to the complete amp case by yourself
- Easy to assembly 4 parts (face/rear/top/bottom) to a completed case, so no instruction/guides provided
- Sample assembling by user: Hypex nCore NC252MP (Ghent case Assembly) (by Joseph Tham)
Brief Introduction
- Part number: C315a-S2 (C-series Encloser)
- 100% Aluminum, the best thermal material for amp

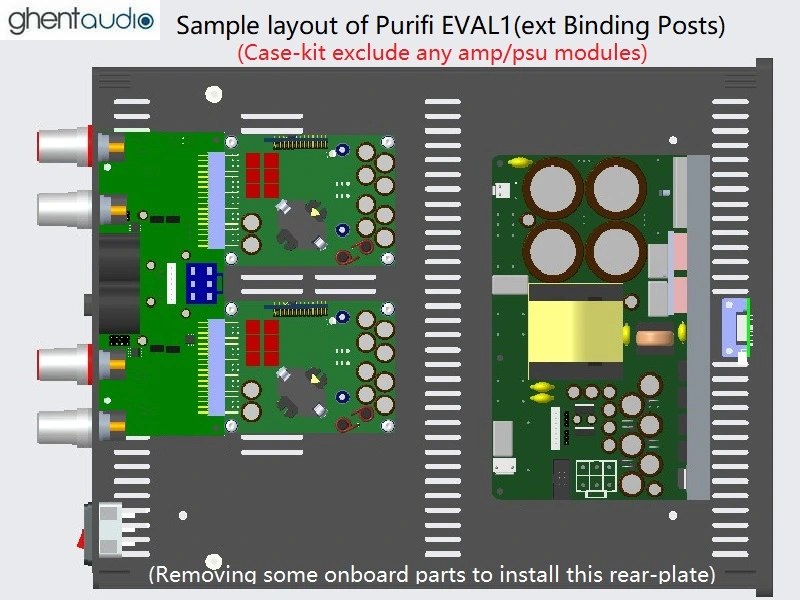

- Stereo(2CH) case pre-drilled for Purifi EVAL1 & Hypex SMPS1200A400 (case-kit excluding any modules)
- Input: 2 x XLR attached on EVAL1 board
- Output: 2 pairs of CMC 858-S-G gold-plated Binding Posts
- IEC-Inlet: Canny Well CW2B-10A-T Filter Fused Mains-Entry GP149

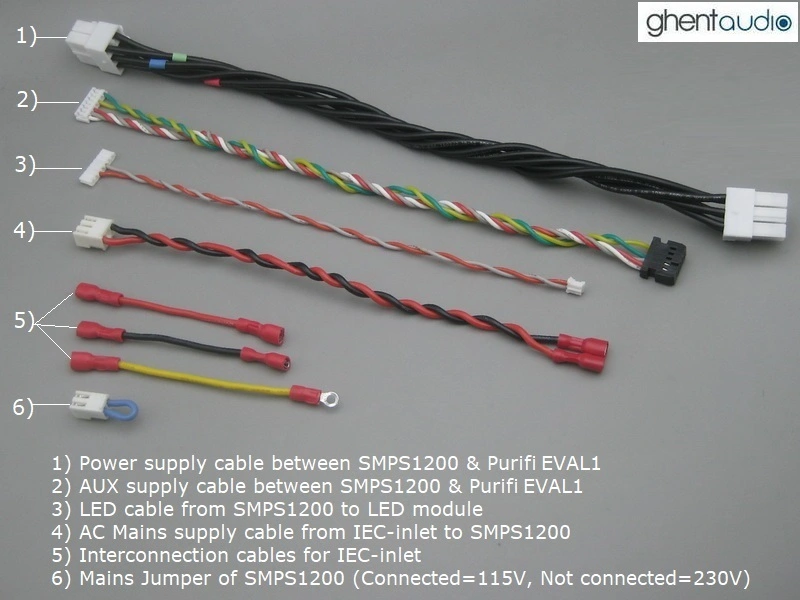

Internal Harness (Free included)
- Mains Input: from AC-Inlet to PSU
- High-power interconnect: from SMPS1200A400 to EVAL1
- Low-power interconnect: from SMPS1200A400 to EVAL1
- LED wire: from PSU to LED module
- IEC Interconnect(3pcs): betwee Power-Button and IEC-inlet, and Ground
- Mains-selection Jumper(SMPS1200): NOT Connected=230Vac Mains; Connected=115Vac Mains
Case Specification
- Internal size: 242mm(W) x 67mm(H) x 315mm(D)
- External size: 250mm(W) x 90mm(H) x 325mm(D)
(External size including feet, excluding connectors)
- Case Finish: Full-Black or Silver-Face with Black body

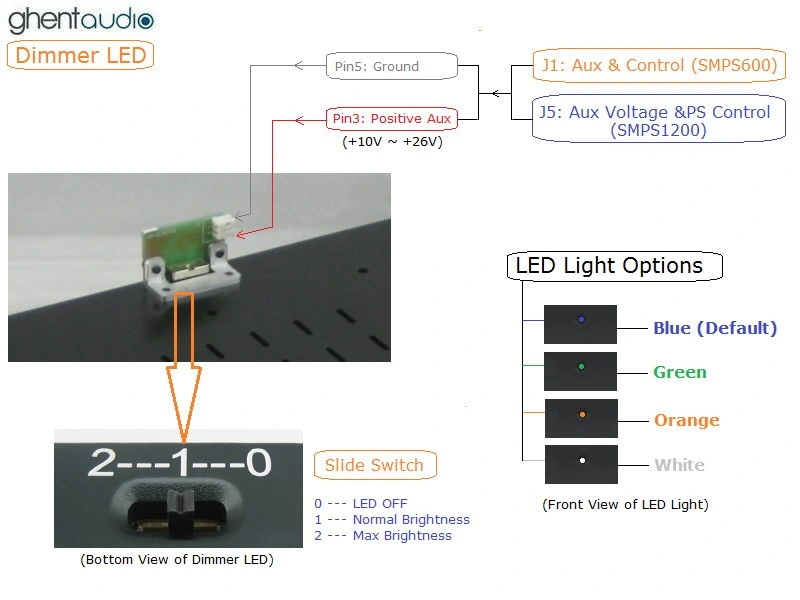

- LED: Blue/Green/Orange/White(Brightness adjustable)
- Face-plate: 8mm thickness
- Top-cover: 4mm thickness, venting holes or slots
- Bottom-plate: 4mm thickness, pre-drilled for modules
- Rear-plate: 3mm thickness, laser imprint text
Packing list (All parts packed
in Bulk)
| Encloser & Parts |
Audio Parts |
Front-Plate x 1
Top-Cover x 1
Bottom-Plate x 1
Rear-Plate x 1
Aluminum Foot x 4
Front-support x 2
Screws set |
Filter AC-Inlet & Switch x 1
CMC Binding Posts(Pair) x 2
Dimmer-LED x 1
Internal Harness |
