(B315b-M3) DIY Mono Case-kit for Purifi EVAL3

SKU:
0.0 (0)
22 Sold
$145.00 $0.00
B-series Mono case-kit, 200 x 315mm ( case-kit exclude the amp/psu modules)
------ applicable for Purifi EVAL3 & SMPS1200A400

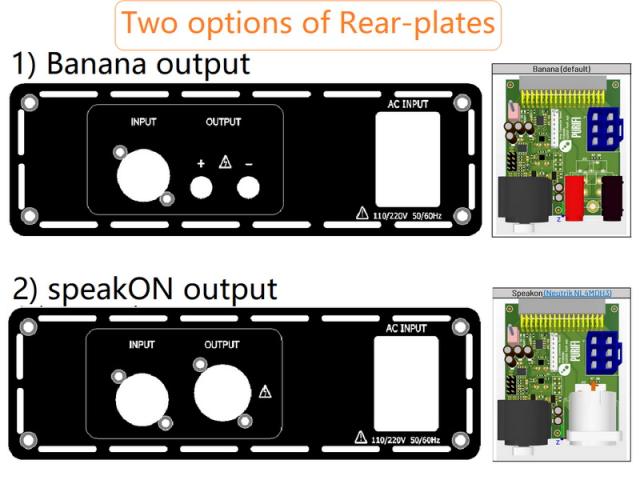

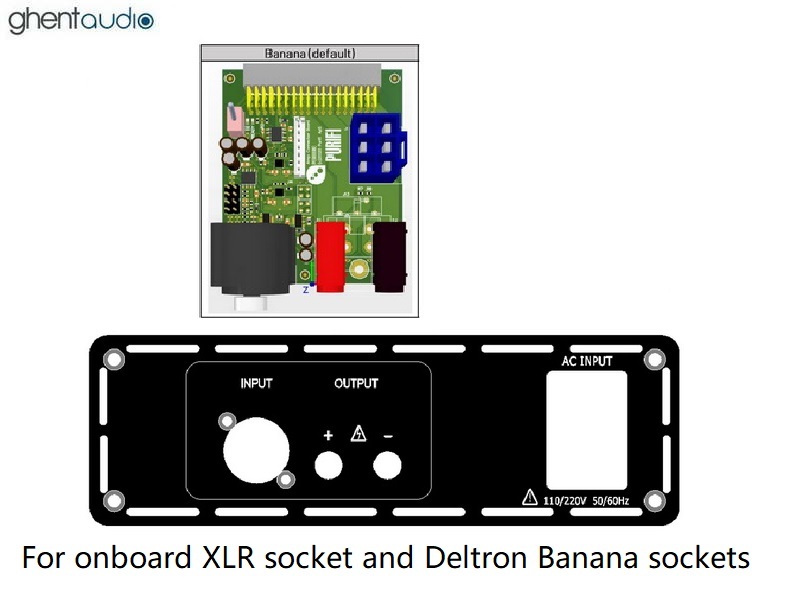

------ Two rear-plates for Banana or speakON outputs
------ Internal harness free included
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Face-plate:
  • LED color:
  • Rear-plate:
    Please select the information you wantX
Quantity:
  • (B315b-M3) DIY Mono Case-kit for Purifi EVAL3
  • (B265b-M1X) DIY Mono Case-kit for ICEpower 250ASP
  • (B315b-M2a) DIY Mono Case-kit for Purifi EVAL2 & EVAL3 (Std version)
  • (B265b-M1X) DIY Mono Case-kit for ICEpower 250ASP
  • (B315b-M1X) DIY Mono Case-kit for ICEpower 700AS1
  • (B315b-M2a) DIY Mono Case-kit for Purifi EVAL2 & EVAL3 (Std version)
  • (B315b-M2a) DIY Mono Case-kit for Purifi EVAL2 & EVAL3 (Std version)
  • (B315b-M2a) DIY Mono Case-kit for Purifi EVAL2 & EVAL3 (Std version)
  • (B315b-M2a) DIY Mono Case-kit for Purifi EVAL2 & EVAL3 (Std version)
  • Description
What's the DIY case-kit?
  • Case-kit is NOT amp-kit, excluding AMP or PSU modules
  • Including aluminum encloser, connectors, screws, feet, led and needed internal harness...
  • DIY (do-it-yourself) project: All parts packed in bulk, please assemble to the complete amp case by yourself
  • Easy to assembly 4 parts (face/rear/top/bottom) to a completed case, so no instruction/guides provided
  • Sample assembling by user: Hypex nCore NC252MP (Ghent case Assembly) (by Joseph Tham)

Brief Introduction
  • Part number: B315b-M3 (B-series Encloser)
  • 100% Aluminum, the best thermal material for amp

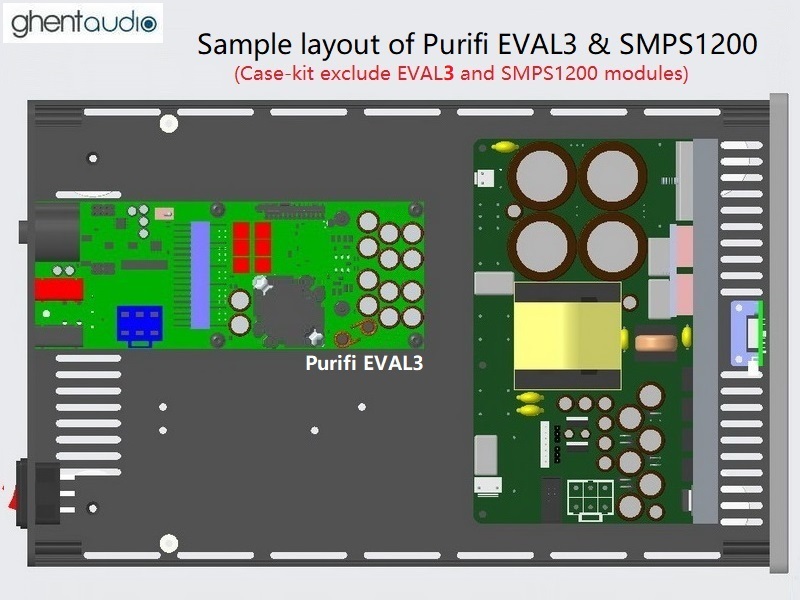

  • Mono(1CH) case pre-drilled for applicable modules (case-kit excluding any modules)
  • Input/Output: attached on EVAL3 board

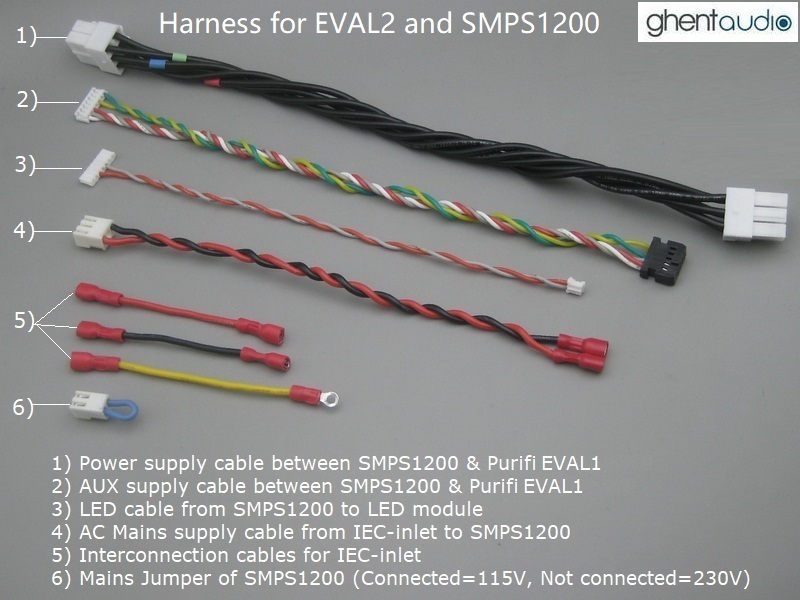

Internal Harness (Free included)
  • Mains Input: from AC-Inlet to PSU
  • High-power interconnect: from SMPS1200A400 to EVAL3
  • Low-power interconnect: from SMPS1200A400 to EVAL3
  • LED wire: from PSU to LED module
  • IEC-Inlet Interconnect(3pcs): betwee Power-Button and IEC-inlet, and Ground
  • Mains-selection Jumper(SMPS1200): NOT Connected=230Vac Mains; Connected=115Vac Mains

Case Specification
  • Internal size: 193mm(W) x 58mm(H) x 315mm(D)
  • External size: 200mm(W) x 78mm(H) x 325mm(D)
    (External size including feet, excluding connectors)

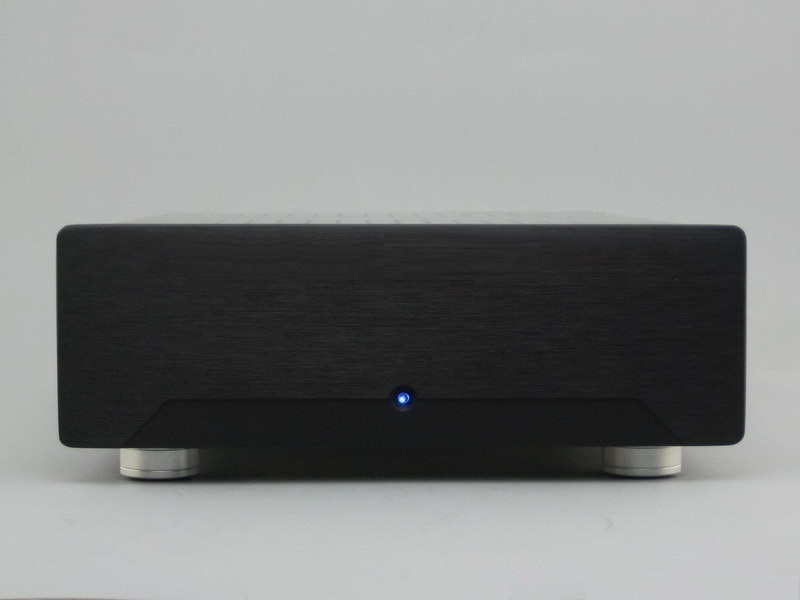

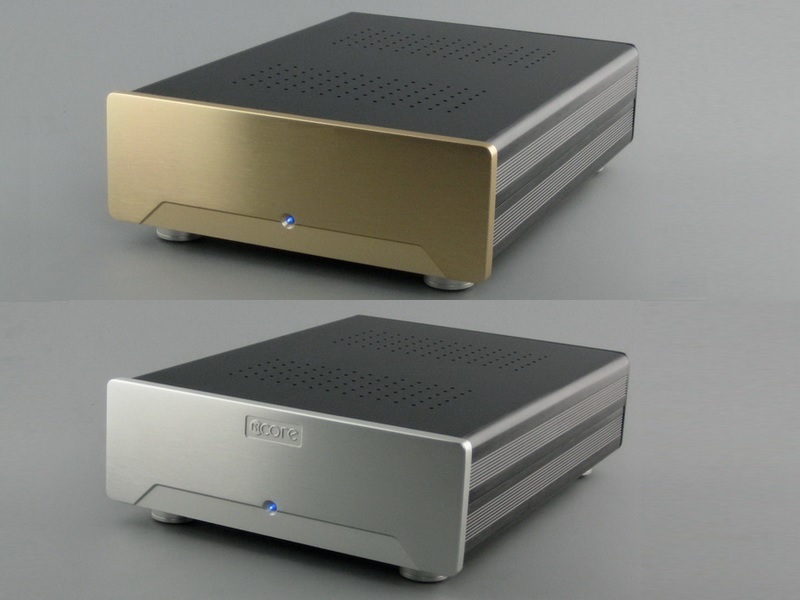

  • Case Finish:  Full-Black or Silver-Face with Black body

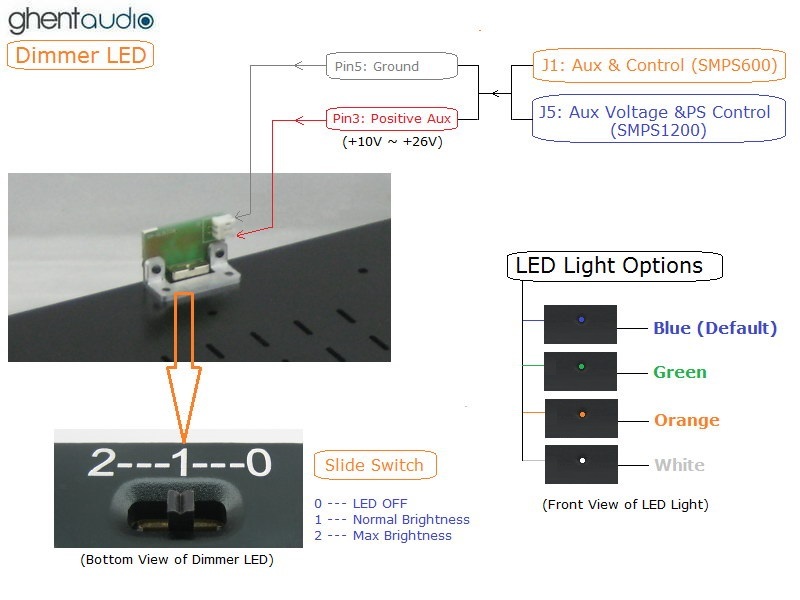

  • LED: Blue/Green/Orange/White(Brightness adjustable)
  • Face-plate: 8mm thickness
  • Top-cover: 3mm thickness, venting holes or slots

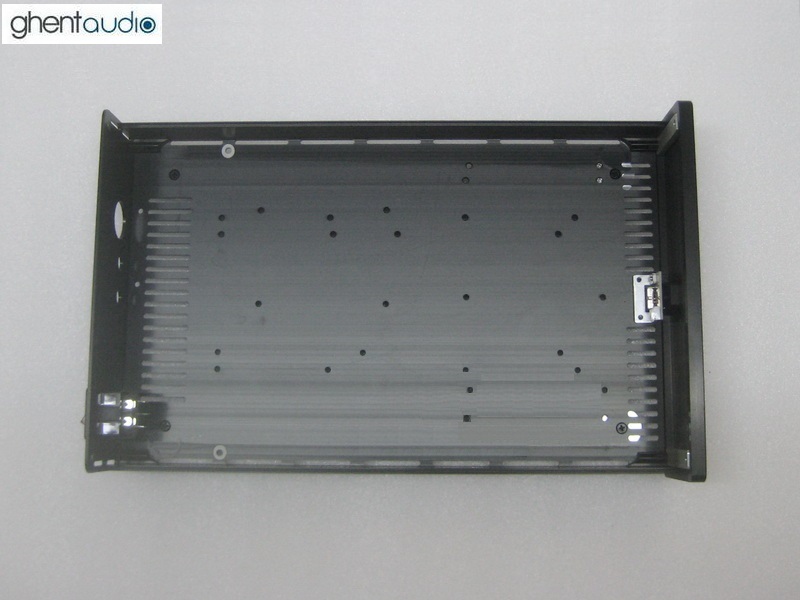

  • Bottom-plate: 3mm thickness, pre-drilled for modules

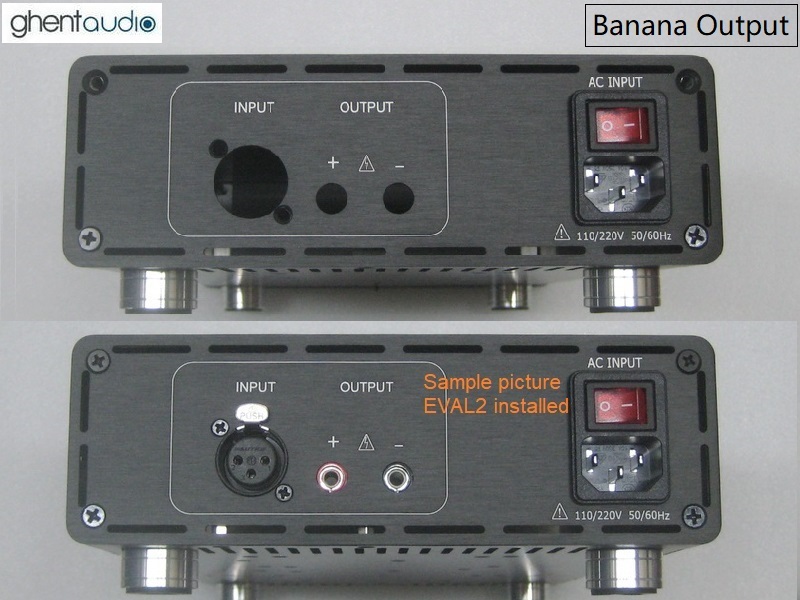

  • Rear-plate: 2mm thickness, laser imprint text

Packing list (All parts packed in Bulk)
Encloser & Parts Audio Parts
Front-Plate x 1
Top-Cover x 1
Bottom-Plate x 1
Rear-Plate x 1
Aluminum Foot x 4
Front-support x 2
Screws set
AC-Inlet & Switch x 1
Dimmer-LED x 1
Internal Harness
