(A265-M1) DIY Mono Case-kit for ICEpower 200ASC (RCA & XLR inputs)

Name: (A265-M1) DIY Mono Case-kit for ICEpower 200ASC (RCA & XLR inputs)
Brand: ghentaudio Do something for HiFi Fans
SKU: A265-M1
Price: 95 USD
Availability: InStock

0.0 (0)

2 Sold

$95.00

A-series Mono case-kit, applicable modules are:
( case-kit exclude the following module)

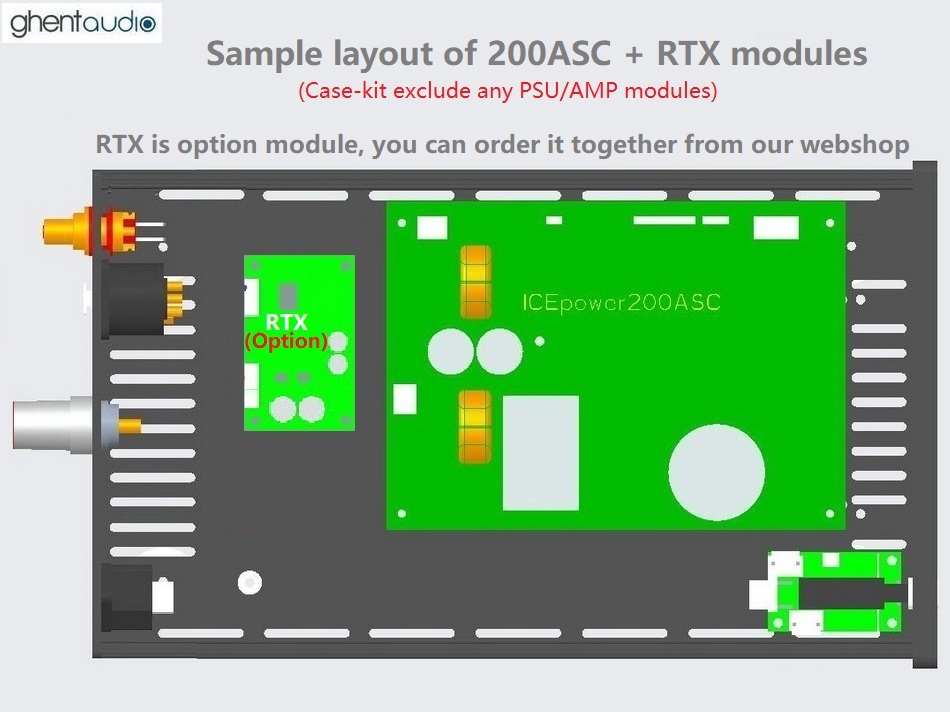

------ 200ASC + RTX module (RCA-to-XLR converting)

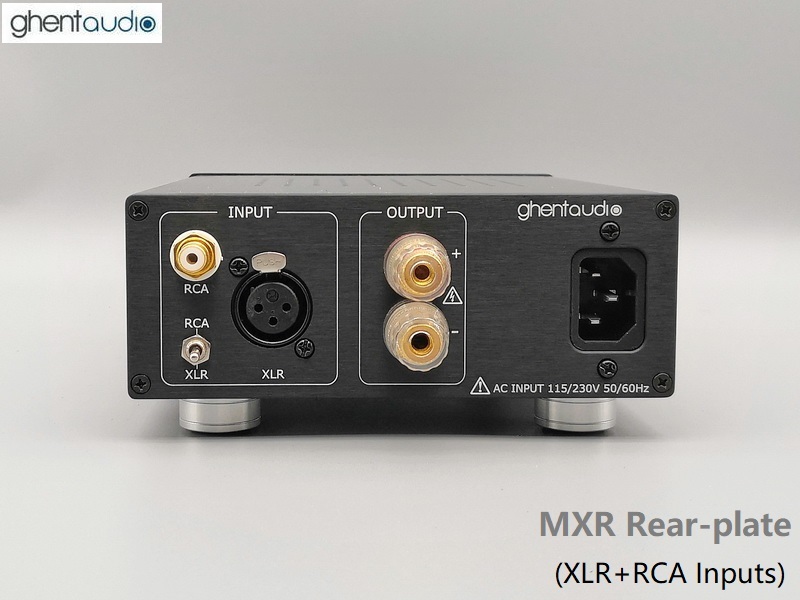

------ Both RCA and XLR inputs, switched by DPDT-6P
------ Longer case with pre-drilled holes for RTX module

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Important info about RTX module

ICEPower 200ASC would sound the best quality via balanced XLR inputs;
If pre-amp with RCA output only, then our RTX module could help to convert RCA to XLR signals;
This case-kit does not include RTX module, please click here to order RTX separately;

What's the DIY case-kit?

Case-kit is NOT amp-kit, excluding AMP or PSU modules
Including aluminum encloser, connectors, screws, feet, led and needed internal harness...
DIY (do-it-yourself) project: All parts packed in bulk, please assemble to the complete amp case by yourself
Easy to assembly 4 parts (face/rear/top/bottom) to a completed case, so no instruction/guides provided
Sample assembling by user: Hypex nCore NC252MP (Ghent case Assembly) (by Joseph Tham)

Brief Introduction

Part number: A265-M1 (A-series Encloser)
100% Aluminum, the best thermal material for amp
Mono(1CH) case pre-drilled for applicable modules (case-kit excluding any modules)

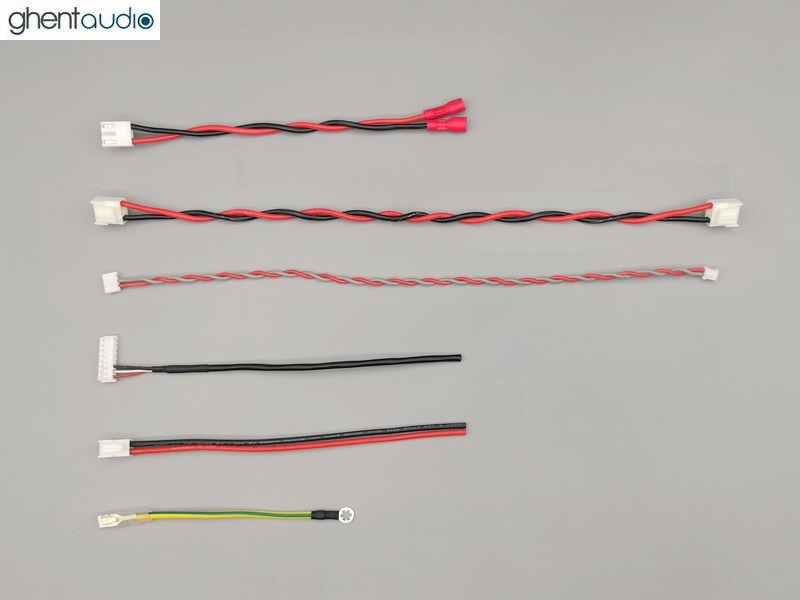

Internal Harness (Free included)

- Mains wire-1: from AC-Inlet to Power-Button-Kit
- Mains wire-2: from Power-Button-Kit to module
- Signal wires: XLR socket to amp-modules(2pcs)
- Speak wires: from amp-module to Binding Posts(2pcs)
- LED wire: from 200ASC to LED board
- Ground wire: from IEC-inlet to Ground area of Alu case

Case Specification

Internal size: 150mm(W) x 56mm(H) x 265mm(D)
External size: 160mm(W) x 73mm(H) x 276mm(D)
(External size including feet, excluding connectors)
Case Finish: Full-Black or Silver-Face with Black body
LED: Blue
Face-plate: 8mm thickness
Top-cover: 3mm thickness, venting holes or slots
Bottom-plate: 3mm thickness, pre-drilled for modules
Rear-plate: 3mm thickness, laser imprint text

Packing list (All parts packed in Bulk)

Encloser & Parts	Audio Parts
Front-Plate x 1 Top-Cover x 1 Bottom-Plate x 1 Rear-Plate x 1 Aluminum Foot x 4 Screws set	IEC-Inlet x 1 Power-Buton-Kit x 1 XLR socket x 1 RCA chasiss connetor x 1 6P On-On Toggle Switch x 1 Binding Post(Pair) x 1 Internal Harness
