(A215-M5) DIY Mono Case-kit for ICEpower 200ASC

Name: (A215-M5) DIY Mono Case-kit for ICEpower 200ASC
Brand: ghentaudio Do something for HiFi Fans
SKU: A215-M5
Price: 80 USD
Availability: InStock

0.0 (0)

7 Sold

$80.00

A-series Mono case-kit, applicable for 200ASC
( case-kit exclude the following module)
------ MX rear-plate: only XLR input
------ MXR rear-plate: both RCA + XLR inputs, with toggle switch

Received successfully

Coupon Code

CONTINUE SHOPPING

Quantity:

Add to Favorites (0)

Description

What's the DIY case-kit?

Case-kit is NOT amp-kit, excluding AMP or PSU modules
Including aluminum encloser, connectors, screws, feet, led and needed internal harness...
DIY (do-it-yourself) project: All parts packed in bulk, please assemble to the complete amp case by yourself
Easy to assembly 4 parts (face/rear/top/bottom) to a completed case, so no instruction/guides provided

Brief Introduction

Part number: A215-M5 (A-series Encloser)
100% Aluminum, the best thermal material for amp
Mono(1CH) case pre-drilled for applicable module (case-kit excluding any modules)
Rear-plate: Two type of Rear-plate for selection

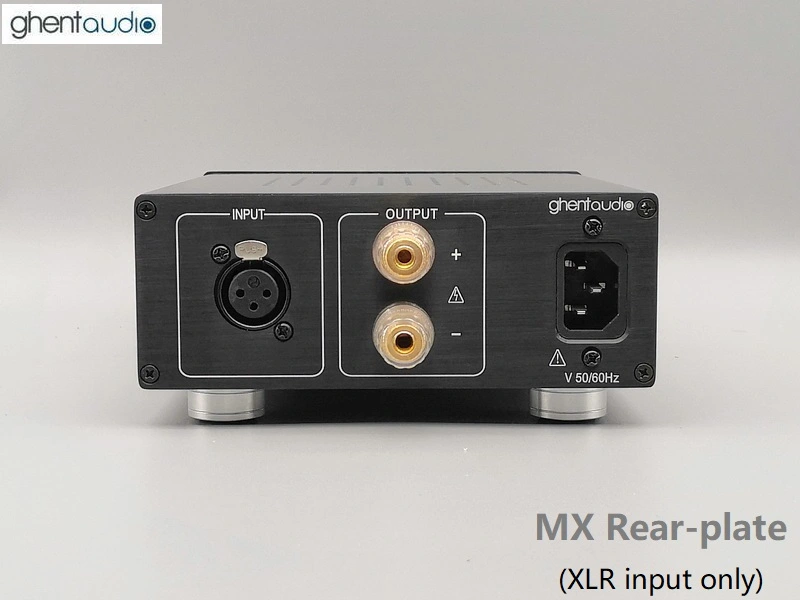

---MX type: only XLR input

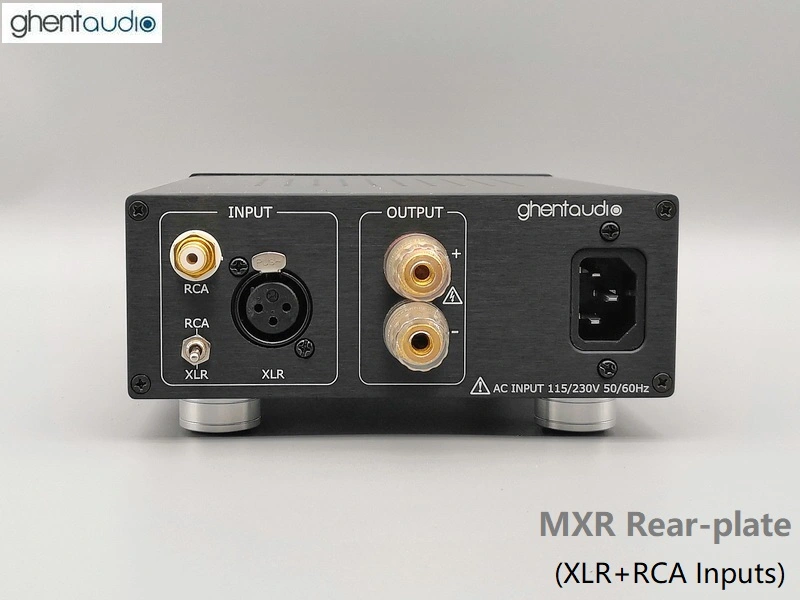

---MXR type: Both XLR & RCA inputs, with toggle switch

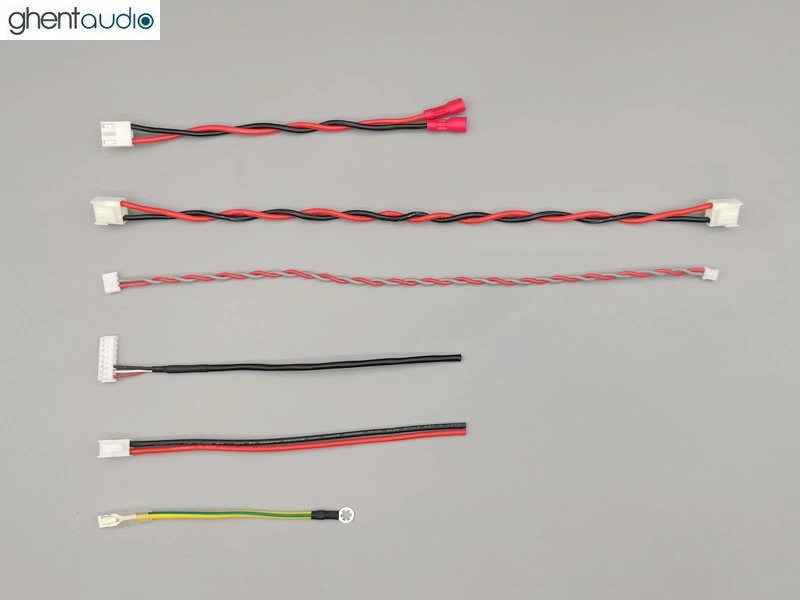

Internal Harness (Free included)

Mains wire-1: from AC-Inlet to Power-Button-Kit
Mains wire-2: from Power-Button-Kit to module
Signal wires: signal input connector to amp-module
Speak wires: from amp-module to Binding Posts
LED wire: from PSU to LED module

Case Specification

Internal size: 150mm(W) x 56mm(H) x 215mm(D)
External size: 160mm(W) x 73mm(H) x 226mm(D)
(External size including feet, excluding connectors)
Case Finish: Full-Black or Silver-Face with Black body
LED: Blue

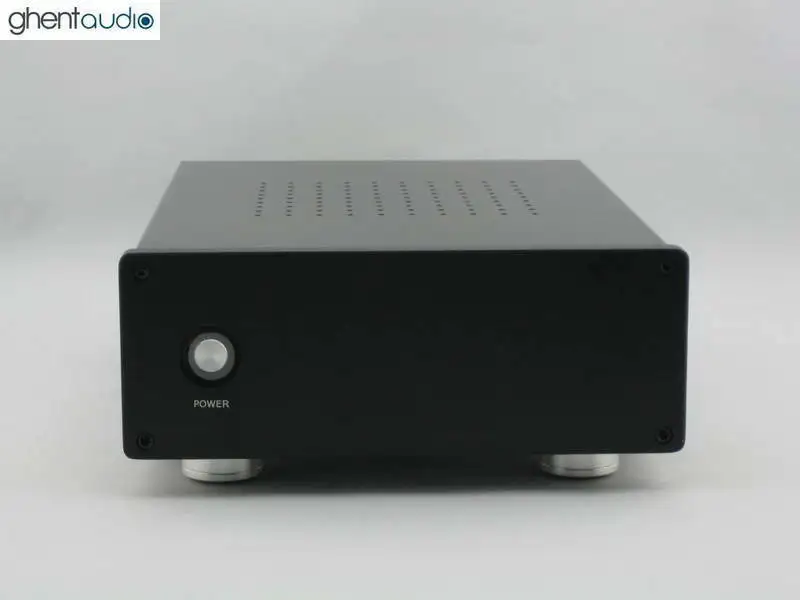

Face-plate: 8mm thickness
Top-cover: 3mm thickness, venting holes or slots
Bottom-plate: 3mm thickness, pre-drilled for modules
Rear-plate: 3mm thickness, laser imprint text

Packing list (All parts packed in Bulk)

Encloser & Parts	Audio Parts
Front-Plate x 1 Top-Cover x 1 Bottom-Plate x 1 Rear-Plate x 1 Aluminum Foot x 4 Screws set	IEC-Inlet x 1 Power-Buton-Kit x 1 XLR chassis connector x 1 RCA chasiss connetor x 1 (MXR only) 6P On-On Toggle Switch x 1 (MXR only) Binding Post(Pair) x 1 Internal Harness
