SGW110: Mundorf SilverGold 1.0mm (18AWG) PTFE Solid-Core Wire(1ft/0.3m)

SKU: SGW110YE
0.0 (0)
0 Sold
$52.50 $0.00
Mundorf SGW SilverGold 1.0mm wire , Solid-Core 18AWG(0.785 mm²)
99% silver + 1% gold = 100% music

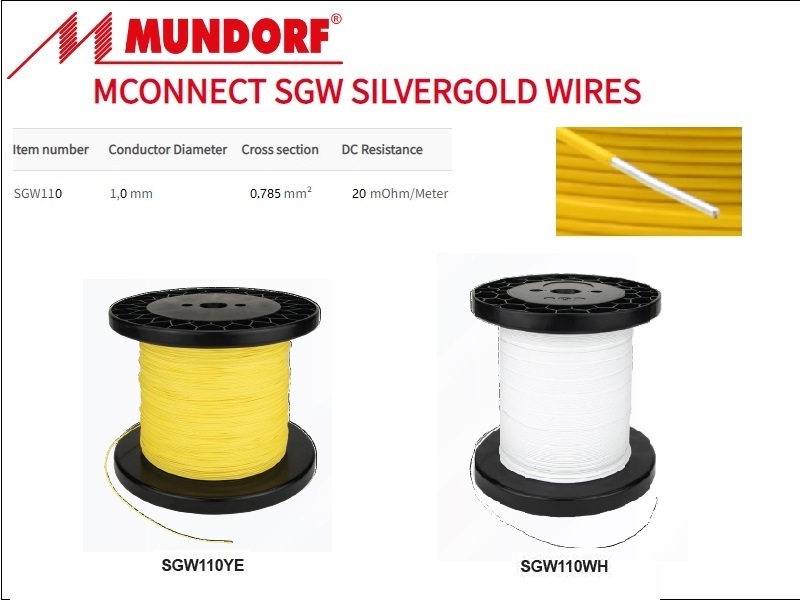

--- SGW110YE: Yellow PTFE Insulation
--- SGW110WH: White PTFE Insulation
Sold by per foot (0.3m):
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Color:
    Please select the information you wantX
Quantity:
  • SGW110: Mundorf SilverGold 1.0mm (18AWG) PTFE Solid-Core Wire(1ft/0.3m)
  • SGW110: Mundorf SilverGold 1.0mm (18AWG) PTFE Solid-Core Wire(1ft/0.3m)
  • SGW110: Mundorf SilverGold 1.0mm (18AWG) PTFE Solid-Core Wire(1ft/0.3m)
  • SGW110: Mundorf SilverGold 1.0mm (18AWG) PTFE Solid-Core Wire(1ft/0.3m)
1/1
  • SGW110: Mundorf SilverGold 1.0mm (18AWG) PTFE Solid-Core Wire(1ft/0.3m)
  • SGW110: Mundorf SilverGold 1.0mm (18AWG) PTFE Solid-Core Wire(1ft/0.3m)
  • Description
Price: sold by per foot (0.3 meter)

Mundorf SGW: SilverGold Solid Core Wire with PTFE Insulation
99% silver + 1% gold = 100% music

Mundorf`s silver/gold wire, is composed of 99% silver and 1% gold, single-core wire.
As used in their highly regarded interconnect and speaker cables.
The wire`s maximum rating is 250Vac and 1250Vdc.
Available as bare wire or PTFE sleeved, coloured white or yellow
No limit to length. Sold as a continuous length.

Features & Specifications
  • Conductor [mm]: 1.0mm SilverGold
  • AWG (approx.): 18-19
  • Conductor [mm²]: 1.767 mm²
  • Insulation: PTFE wrapped
  • Inner diameter: 1.0 mm
  • Outer diameter: 1.4 mm
  • Bending radius [mm]: 6mm
  • R DC [mOhm/m]: 20 mOhm/Meter
  • U rated [V]: 150
