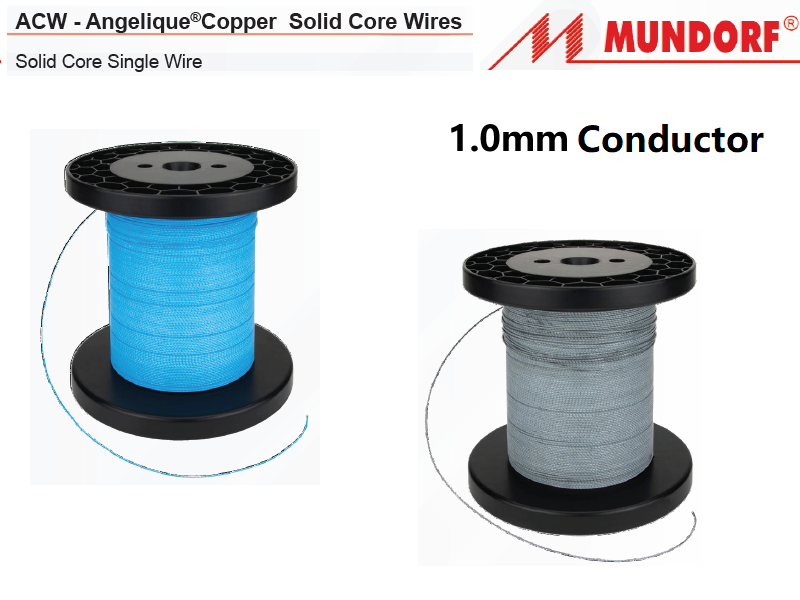

ACW110: Mundorf Angelique Copper 1.0mm (18AWG) PTFE Solid-core (1ft/0.3m)

Price: sold by per foot (0.3 meter)

With this patent-pending Copper Angelique Wire, an absolutely convincing star ensemble enters the stage of our wire alloys made from Copper, Silver and Gold: A true Master Class triad!

Indeed, Mundorf is a bit proud that in countless elaborate listening sessions with different alloy ratios, they eventually succeeded in uniting the outstanding musical talents of Silver (structure, analytics, transparency) and Gold (multi-faceted tonality and brilliance) with the energy and liveliness of Copper in this one perfect alloy.

Available with PTFE Insulation

• ACW110BU: Blue PTFE Wrapped
• ACW110BK: Black PTFE Wrapped

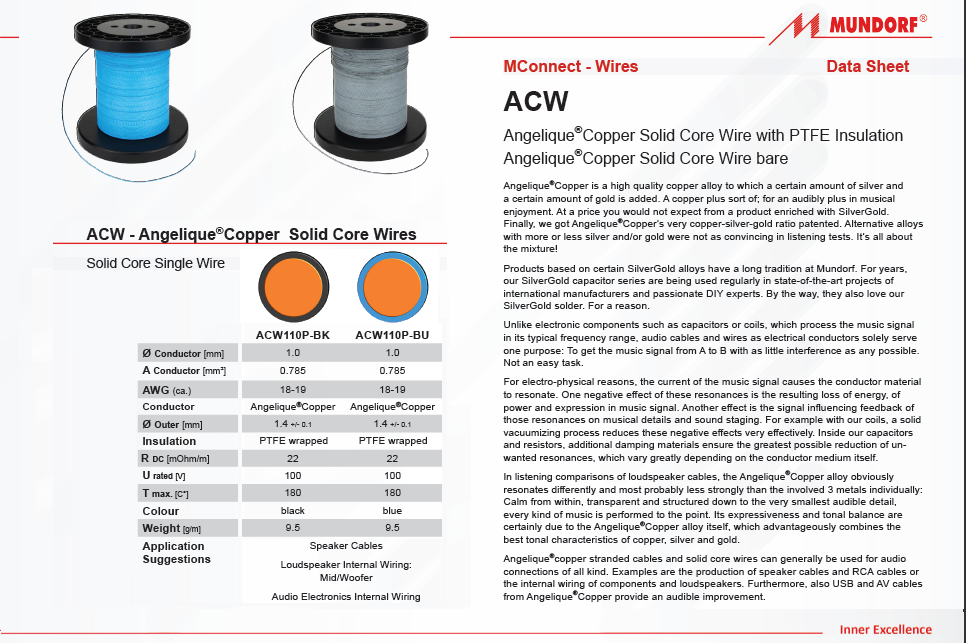

Features & Specifications

---

• Conductor [mm]: 1.0mm
• Conductor [mm²]: 0.785 mm² (Angelique®Copper)
• AWG (approx.): 18
• Insulation: PTFE Insulation
• Inner diameter: 1.0 mm
• Outer diameter: 1.4 mm
• R DC [mOhm/m]: 22
• U rated [V]: 100
• T max. [C°]: 180
• Application:  Speaker Cables Loudspeaker Internal Wiring: Mid Audio Electronics Internal Wiring Power Cords
