Introduction

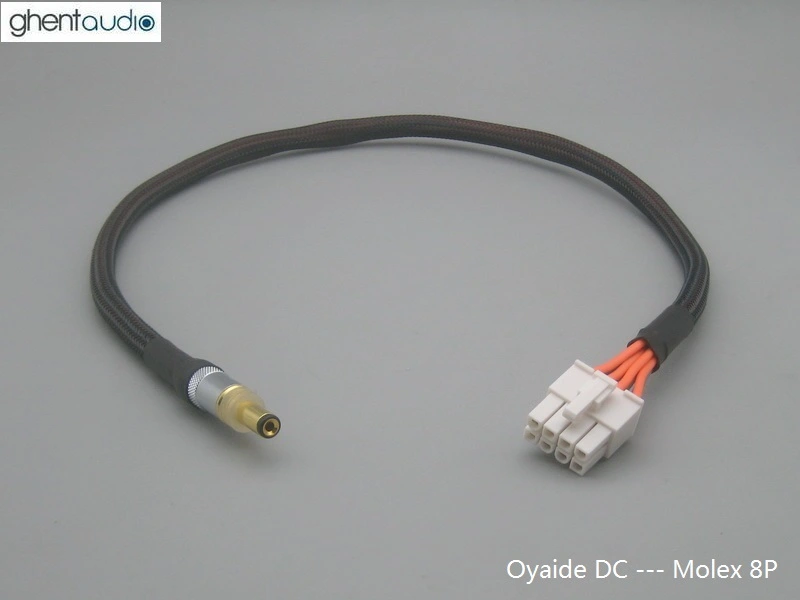

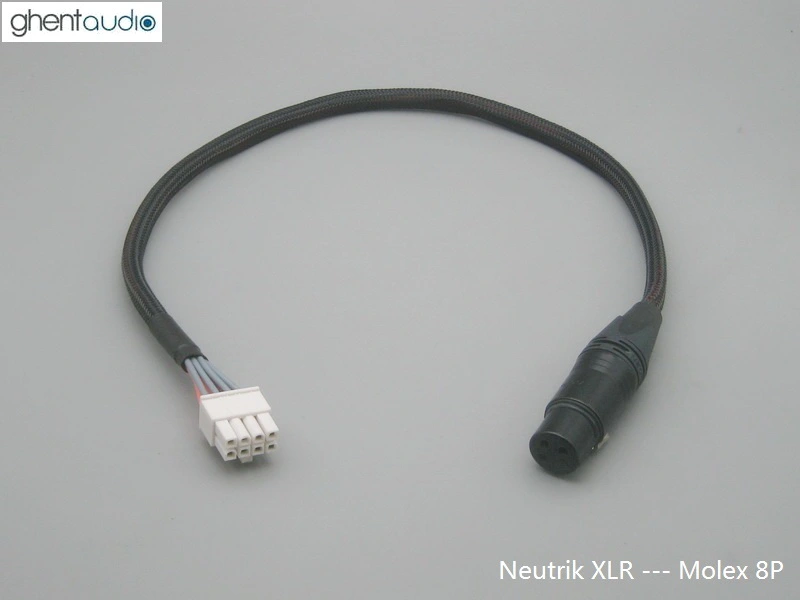

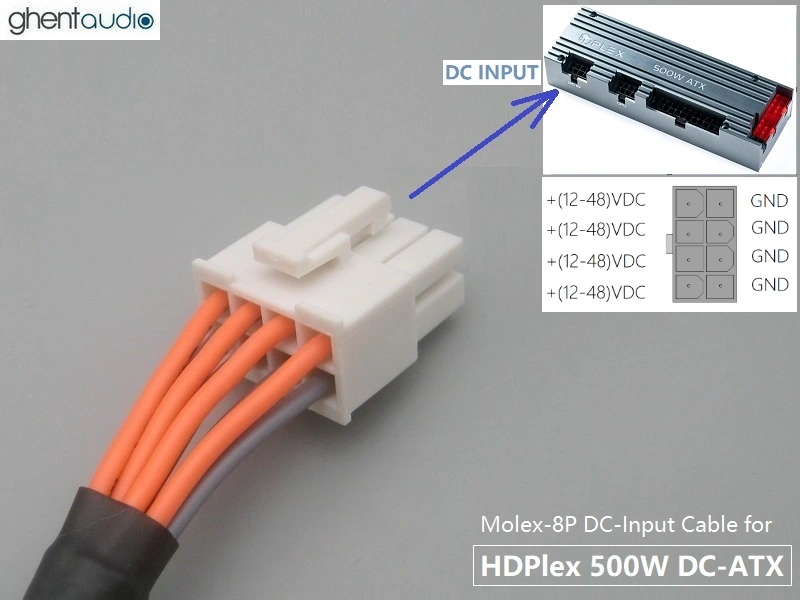

- PSU---8P: From external Power supply to Molex-8P DC-input of HDPlex 500W HiFi DC-ATX
- Cable Length: Including the length of connectors at two ends
- Pre-built JSSG360: Two layers of copper shield mesh to protect cable from the complicated EMI (Black sleeved)
Two kinds of Hook-up wires for selection
- Gotham OFC 18AWG: Stranded Copper 7x 0.388 (0.823 mm²), 18AWG in PVC Jacket, Highest OFC copper in all Gotham Cables
- Neotech UP-OCC 18AWG: Stranded Copper 19x0.25 (0.932 mm²), 18AWG in Teflon Insulation, 7N (99.99998%) Purity Copper wire
Source Connector (PSU side) for selection
Please contact your supplier to know the exact connector/pinout, here are some examples for Branded PSU
- HDPlex PSU: XLR Female-3P connector (P1 GND, P2 VCC+)
- KingRex MKII: XLR Male-3P connector (P1 VCC+, P3 GND)
- Mojo Audio: XLR Male-4P connector (P1/P2 VCC+, P3/P4 GND)
- Paul Hynes SR4/SR5: XLR Male-4P connector (P1 GND, P4 VCC+)

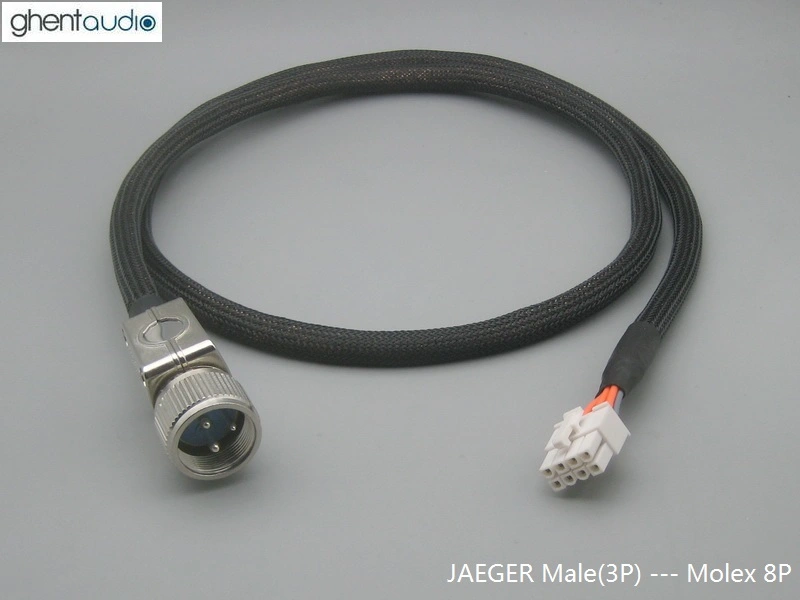

- Paul Hynes SR7: Jaeger Male-3P (P1 GND, P2 VCC+)
- Teradak PSU: GX16-2 Female connector (P1 GND, P2 VCC+)
- Aurender PSU: GX16-3 Female connector (P1 GND, P3 VCC+)

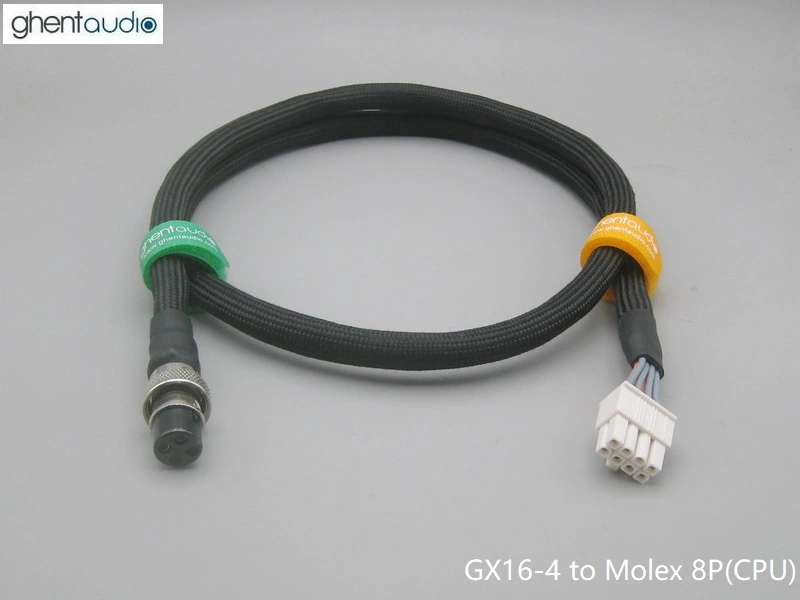

- Farad PSU: GX16-4 Female connector (P1/P3 GND, P2/P4 VCC+)
- Plixir PSU: GX16-4 Female connector (P1/P2 GND, P3/P4 VCC+)
- Reddo PSU: GX16-4 Female connector (P1/P2 VCC+, P3/P4 GND)
- Hypsos PSU: Weipu Male-4P connector (P1/P3 GND, P2/P4 VCC+)
- Sotm sPS-500: Hirose Male-4P connector (P1/P4 VCC+, P2/P2 GND)
- ......
Order Handling / Custom Length
- Handing time: 3-4 business days, since all cables are handmade carefully, thanks your patience
- Up-Level price policy for custom length: 0.35m = 0.5m, 1.2m = 1.5m, ...
- Welcome any other questions, please mail to [email protected] to contact us
