(PC31) PSU---6P DC-Input Cable for DC-ATX (JSSG360)

SKU:
0.0 (0)
24 Sold
$42.00 $0.00
From external PSU to 6P DC-Input (DC-ATX Converter), applicable for:
--- HDPLEX 200W Direct-Plug DC-ATX Converter
--- HDPLEX 300W/400W/800W HiFi DC-ATX Converter
--- Taiko Audio DC DC-ATX Converter
--- Other DC-ATX with the same Molex-6P(pinout)
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Hook-up Wire:
  • Cable Length (Including connectors):
    Please select the information you wantX
  • Source Connector (PSU side):
    Please select
    Please select
    Oyaide DC-2.1G (5.5/2.1)[ + $8.00 ]
    Oyaide DC-2.5G (5.5/2.5)[ + $8.00 ]
    GX16-2: P1+; P2-
    GX16-2: P1-; P2+
    GX16-3 (Aurender): P1-; P3+[ + $1.00 ]
    GX16-4 (Farad): P1/P3+; P2/P4-[ + $2.00 ]
    GX16-4 (Plixir): P1/P2-; P3/P4+[ + $2.00 ]
    XLR Female-3P (HDPlex): P1-; P2+[ + $6.00 ]
    XLR Male-3P (KingRex MKII PSU): P1+; P3-[ + $5.00 ]
    XLR Male-4P (Mojo Audio): P1/P2+; P3/P4-[ + $6.00 ]
    XLR Male-4P (Paul Hynes): P1-; P4+[ + $6.00 ]
    Jaeger Male-3P (Paul Hynes): P1-; P2+[ + $15.00 ]
    Weipu SF1210/P4 (Hypsos): P1/P3-; P2/P4+[ + $6.00 ]
    Female 5.5/2.1 DC Input Jack
    Female 5.5/2.5 DC Input Jack

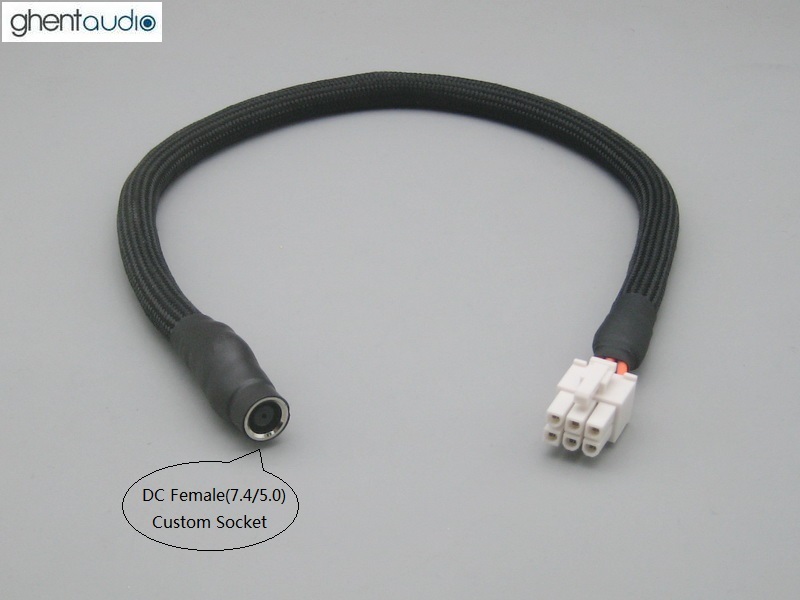

    Female 7.4/5.0(center pin) DC Input Jack
    GX16-4 (Sean Jacobs ARC6-contact Sean Jacobs for pinout info first): P1/P2+; P3/P4-[ + $2.00 ]
  • Total extras:$0.00
Quantity:
  • (PC31) PSU---6P DC-Input Cable for DC-ATX (JSSG360)
  • (PC31) PSU---6P DC-Input Cable for DC-ATX (JSSG360)
  • (PC31) PSU---6P DC-Input Cable for DC-ATX (JSSG360)
  • (PC31) PSU---6P DC-Input Cable for DC-ATX (JSSG360)
  • (PC31) PSU---6P DC-Input Cable for DC-ATX (JSSG360)
  • (PC31) PSU---6P DC-Input Cable for DC-ATX (JSSG360)
  • (PC31) PSU---6P DC-Input Cable for DC-ATX (JSSG360)
  • (PC31) PSU---6P DC-Input Cable for DC-ATX (JSSG360)
  • (PC31) PSU---6P DC-Input Cable for DC-ATX (JSSG360)
  • (PC31) PSU---6P DC-Input Cable for DC-ATX (JSSG360)
1/1
  • (PC31) PSU---6P DC-Input Cable for DC-ATX (JSSG360)
  • (PC31) PSU---6P DC-Input Cable for DC-ATX (JSSG360)
  • (PC31) PSU---6P DC-Input Cable for DC-ATX (JSSG360)
  • (PC31) PSU---6P DC-Input Cable for DC-ATX (JSSG360)
  • (PC31) PSU---6P DC-Input Cable for DC-ATX (JSSG360)
  • Description
Introduction

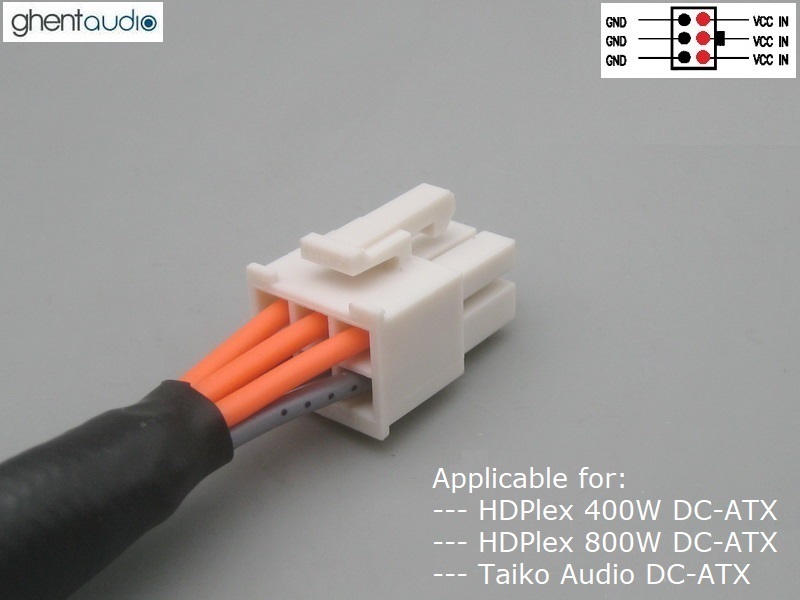

  • PSU---6P:  From external Power supply to Molex-6P DC-Input (DC-ATX Converter)
  • Cable Length: Including the length of connectors at two ends
  • Pre-built JSSG360: Two layers of copper shield mesh to protect cable from the complicated EMI (Black sleeved)

Applicable for
  • HDPlex:  200W Direct-Plug DC-ATX Converters
  • HDPlex:  300W / 400W / 800W HiFi DC-ATX Converters
  • Taiko Audio: Taiko Audio DC DC-ATX Converter
  • Other DC-ATX with the same Molex-6P(pinout)

Two kinds of Hook-up wires for selection
  • Gotham OFC 18AWG: Stranded Copper 7x 0.388 (0.823 mm²), 18AWG in PVC Jacket, Highest OFC copper in all Gotham Cables
  • Neotech UP-OCC 18AWG: Stranded Copper 19x0.25 (0.932 mm²), 18AWG in Teflon Insulation, 7N (99.99998%) Purity Copper wire

Source Connector (PSU side) for selection
Please contact your supplier to know the exact connector/pinout, here are some examples for Branded PSU
(Please mail to [email protected] if you have any other custom requirements)
  • HDPlex PSU: XLR Female-3P connector (P1 GND, P2 VCC+)
  • KingRex MKII: XLR Male-3P connector (P1 VCC+, P3 GND)
  • Mojo Audio: XLR Male-4P connector (P1/P2 VCC+, P3/P4 GND)
  • Paul Hynes SR4/SR5: XLR Male-4P connector (P1 GND, P4 VCC+)
  • Paul Hynes SR7: Jaeger Male-3P (P1 GND, P2 VCC+)
  • Teradak PSU: GX16-2 Female connector (P1 GND, P2 VCC+)
  • Aurender PSU: GX16-3 Female connector (P1 GND, P3 VCC+)
  • Farad PSU: GX16-4 Female connector (P1/P3 GND, P2/P4 VCC+)
  • Plixir PSU: GX16-4 Female connector (P1/P2 GND, P3/P4 VCC+)
  • Reddo PSU: GX16-4 Female connector (P1/P2 VCC+, P3/P4 GND)
  • Hypsos PSU: Weipu Male-4P connector (P1/P3 GND, P2/P4 VCC+)
  • Sotm sPS-500: Hirose Male-4P connector (P1/P4 VCC+, P2/P2 GND)
  • ......
(Please mail to [email protected] if you have any other custom requirements)

Order Handling / Custom Length
  • Handing time: 3-4 business days, since all cables are handmade carefully, thanks your patience
  • Up-Level price policy for custom length: 0.35m = 0.5m, 1.2m = 1.5m, ...
  • Welcome any other questions, please mail to [email protected] to contact us
