(D365c-S7B) DIY SE Case-kit for 2 x "SMPS1200+EVAL7" (ext. Binding Posts)

Name: (D365c-S7B) DIY SE Case-kit for 2 x "SMPS1200+EVAL7" (ext. Binding Posts)
Brand: ghentaudio Do something for HiFi Fans
SKU: D365c-S7B
Price: 265 USD
Availability: InStock

0.0 (0)

1 Sold

$265.00

D-series Stereo(Dual-mono) case-kit, applicable modules are:
------ 2 x "SMPS1200+EVAL7"
------ For external Binding Posts outputs (Pleaes remove a few onboard parts)
------ Internal harness free included

Received successfully

Coupon Code

CONTINUE SHOPPING

Quantity:

Add to Favorites (0)

1/1

Description

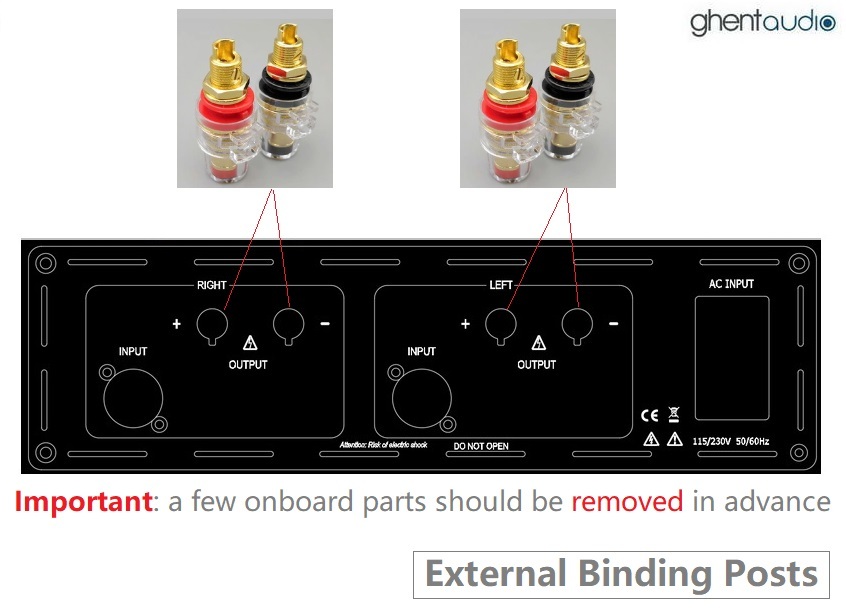

Important: please remove a few onboard parts from EVAL2 in advance

What's the DIY case-kit?

Case-kit is NOT amp-kit, excluding AMP or PSU modules
Including aluminum encloser, connectors, screws, feet, led and needed internal harness...
DIY (do-it-yourself) project: All parts packed in bulk, please assemble to the complete amp case by yourself
Easy to assembly 4 parts (face/rear/top/bottom) to a completed case, so no instruction/guides provided
Sample assembling by user: Hypex nCore NC252MP (Ghent case Assembly) (by Joseph Tham)

Brief Introduction

Part number: D365c-S7B (D-series Encloser)
100% Aluminum, the best thermal material for amp
Stereo case pre-drilled for 2 x "SMPS1200+EVAL7" (case-kit excluding any modules)
Input: XLR connector onboard
Output: GP100 Gold-plated Binding posts

Internal Harness (Free included)

Mains Input: from AC-Inlet to PSU
High-power interconnect: from SMPS1200A400 to EVAL
Low-power interconnect: from SMPS1200A400 to EVAL
LED wire: from PSU to LED module
IEC-Inlet Interconnect(3pcs): betwee Power-Button and IEC-inlet, and Ground
Mains-selection Jumper(SMPS1200): NOT Connected=230Vac Mains; Connected=115Vac Mains

Case Specification

Internal size: 288mm(W) x 75mm(H) x 365mm(D)
External size: 300mm(W) x 100mm(H) x 376mm(D)
(External size including feet, excluding connectors)

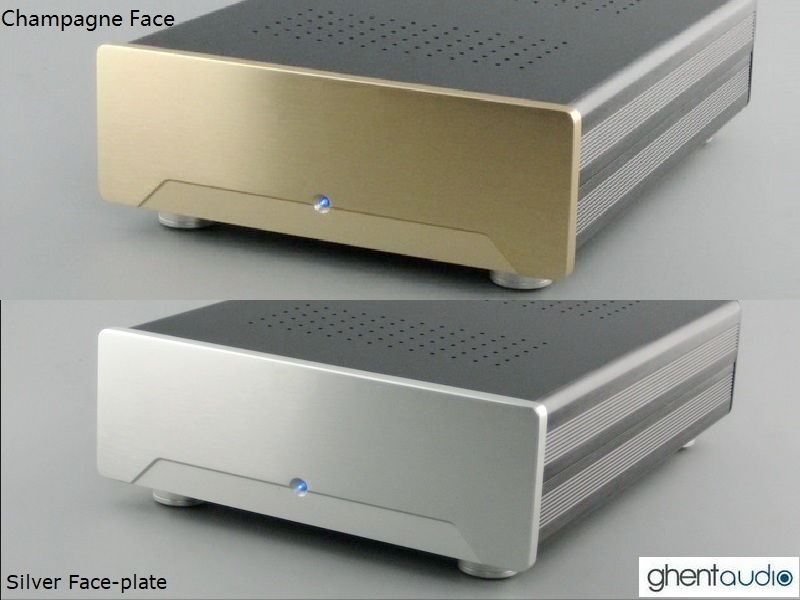

Case Finish: Full-Black or Silver-Face with Black body
LED: Blue/Green/Orange/White(Brightness adjustable)
Face-plate: 8mm thickness
Top-cover: 5mm thickness, venting holes or slots
Bottom-plate: 5mm thickness, pre-drilled for modules
Rear-plate: 3mm thickness, laser imprint text

Packing list (All parts packed in Bulk)

Encloser & Parts	Audio Parts
Front-Plate x 1 Top-Cover x 1 Bottom-Plate x 1 Rear-Plate x 1 Aluminum Foot x 4 Front-support x 2 Screws set	AC-Inlet & Switch x 1 Binding Post(Pair) x 2 Dimmer-LED x 1 Internal Harness
