(D315c-S1) DIY Stereo Case-kit for Hypex Ncore NC1200(x2)

Name: (D315c-S1) DIY Stereo Case-kit for Hypex Ncore NC1200(x2)
Brand: ghentaudio Do something for HiFi Fans
SKU: D315c-S1
Price: 255 USD
Availability: InStock

0.0 (0)

4 Sold

$255.00

D-series Stereo case-kit, applicable modules are:
------ 2 x NC1200
------ 1 x SMPS3K
------ Custom drilling for other suitable modules

Received successfully

Coupon Code

CONTINUE SHOPPING

Quantity:

Add to Favorites (0)

1/1

Description

What's the DIY case-kit?

Case-kit is NOT amp-kit, excluding AMP or PSU modules
Including aluminum encloser, connectors, screws, feet, led and needed internal harness...
DIY (do-it-yourself) project: All parts packed in bulk, please assemble to the complete amp case by yourself
Easy to assembly 4 parts (face/rear/top/bottom) to a completed case, so no instruction/guides provided
Sample assembling by user: Hypex nCore NC252MP (Ghent case Assembly) (by Joseph Tham)

Brief Introduction

Part number: D315c-S1 (D-series Encloser)
100% Aluminum, the best thermal material for amp

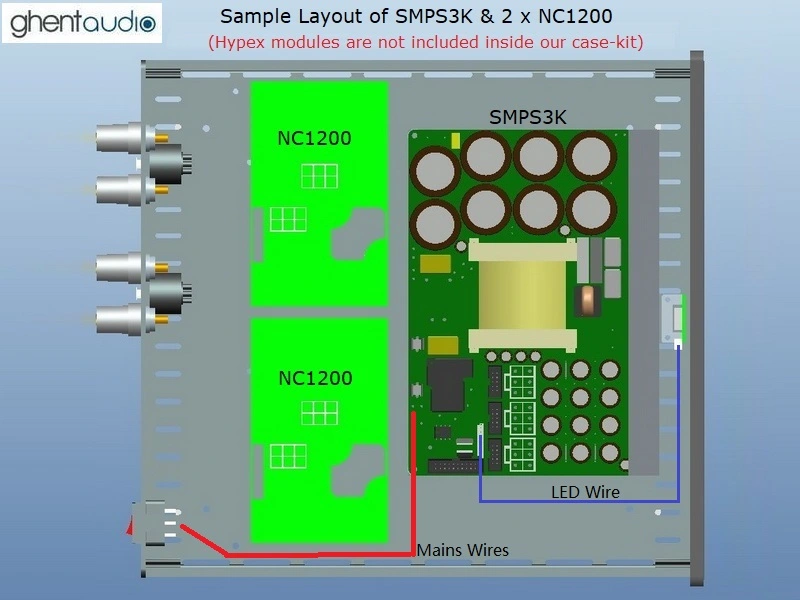

Stereo case pre-drilled for 2 x NC1200 & SMPS3K
(case-kit excluding any modules)
Input: GP110 Gold-plated XLR socket (included)
Output: GP100 Gold-plated Binding posts (included)

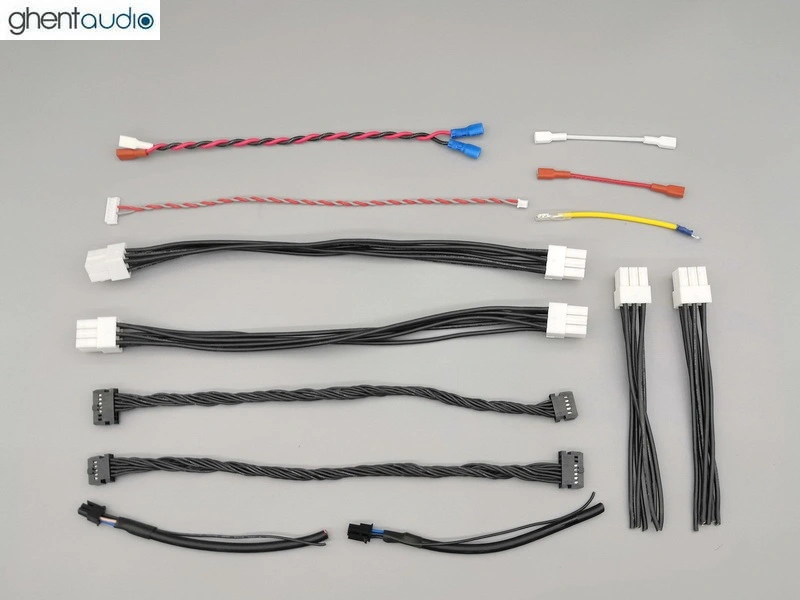

Internal Harness (Free included)

Mains wires: from AC-Inlet to PSU (250 Quick disconnectors)
Mains Interconnect: 2pcs, from SMPS3K to 2 x NC1200
Control Interface: 2pcs, from SMPS3K to 2 x NC1200
Audio Input: 2pcs, from XLR to NC1200
Speak wires: 2 cables, from NC1200 to Binding Posts
LED wire: from SMPS3K to LED module
Please prepare other signal/speaker/power supply wires...etc by yourself

Case Specification

Internal size: 288mm(W) x 75mm(H) x 315mm(D)
External size: 300mm(W) x 100mm(H) x 326mm(D)
(External size including feet, excluding connectors)
Case Finish: Full-Black or Silver-Face with Black body
LED: Blue/Green/Orange/White(Brightness adjustable)

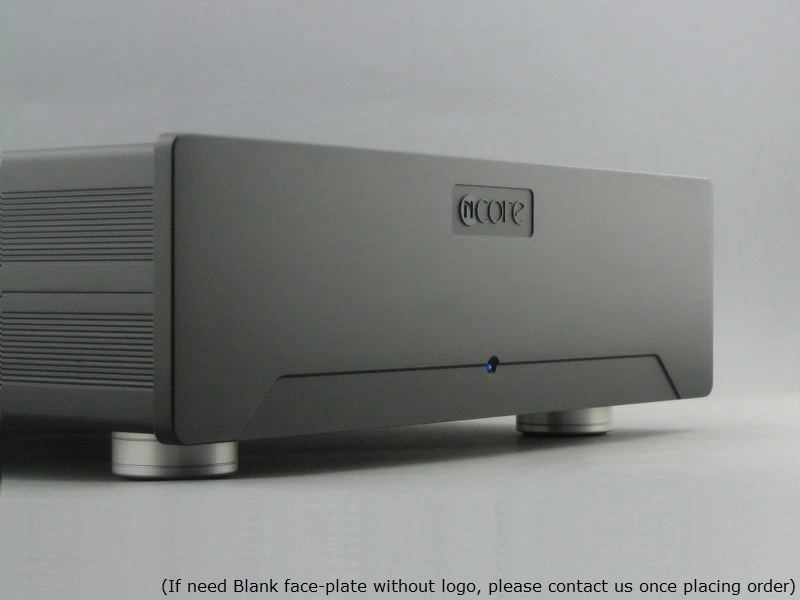

Face-plate: 8mm thickness

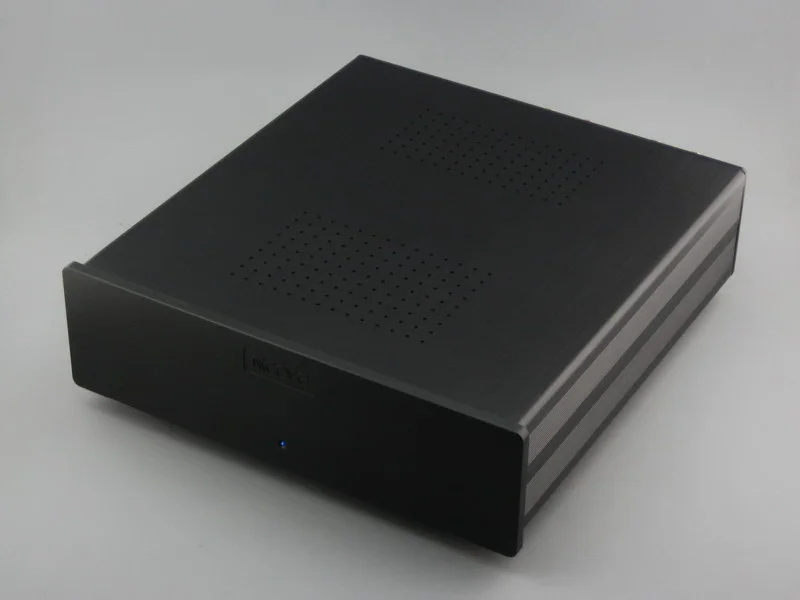

Top-cover: 5mm thickness, venting holes or slots
Bottom-plate: 5mm thickness, pre-drilled for modules

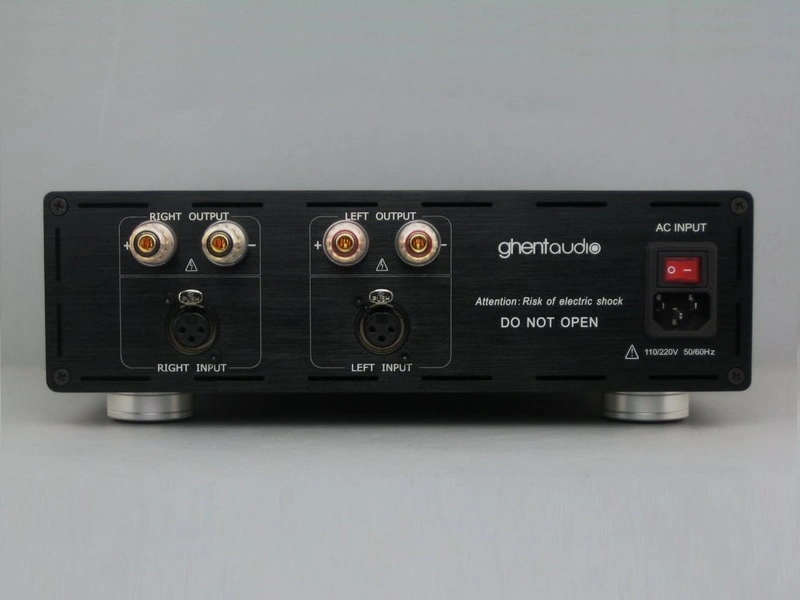

Rear-plate: 3mm thickness, laser imprint text

Packing list (All parts packed in Bulk)

Encloser & Parts	Audio Parts
Front-Plate x 1 Top-Cover x 1 Bottom-Plate x 1 Rear-Plate x 1 Aluminum Foot x 4 Front-support x 2 Screws set	AC-Inlet & Switch x 1 XLR chassis connector x 2 Binding Post(Pair) x 2 Dimmer-LED x 1 Internal Harness
