(D315a-S3) DIY Stereo Case-kit for Hypex Nilai500

SKU:
0.0 (0)
1 Sold
$240.00 $0.00
D-series Stereo case-kit, applicable modules are:
------ 2 x Nilai500 & PS500DIY
------ Pre-made harness included
------ Mogami signal cable, Belden speaker cable
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Face-plate:
  • LED color:
  • XLR Type:
    Please select the information you wantX
Quantity:
  • (D315a-S3) DIY Stereo Case-kit for Hypex Nilai500

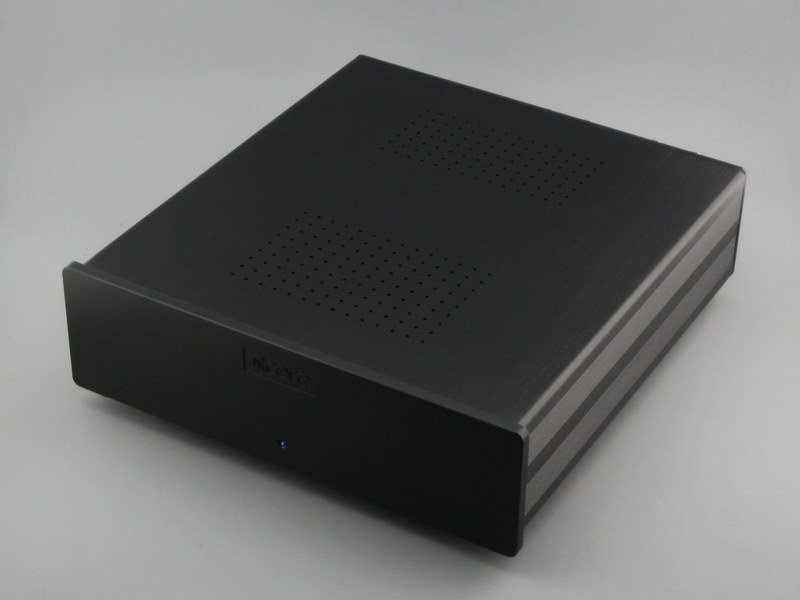

  • (D315a-S2) DIY Stereo Case-kit for Hypex Ncore NC500 OEM
  • (D315a-S2) DIY Stereo Case-kit for Hypex Ncore NC500 OEM
  • (D315a-S2) DIY Stereo Case-kit for Hypex Ncore NC500 OEM
  • (D315a-S3) DIY Stereo Case-kit for Hypex Nilai500
  • (D315c-M1) DIY Mono Case-kit for Hypex Ncore NC2K
  • (D315a-S3) DIY Stereo Case-kit for Hypex Nilai500
  • (D315c-M2) DIY Mono Case-kit for Hypex UcD2K
  • (D315c-M2) DIY Mono Case-kit for Hypex UcD2K
  • Description
What's the DIY case-kit?
  • Case-kit is NOT amp-kit, excluding AMP or PSU modules
  • Including aluminum encloser, connectors, screws, feet, led and needed internal harness...
  • DIY (do-it-yourself) project: All parts packed in bulk, please assemble to the complete amp case by yourself
  • Easy to assembly 4 parts (face/rear/top/bottom) to a completed case, so no instruction/guides provided
  • Sample assembling by user: Hypex nCore NC252MP (Ghent case Assembly) (by Joseph Tham)

Brief Introduction
  • Part number: D315a-S3 (D-series Encloser)
  • 100% Aluminum, the best thermal material for amp
  • Stereo case pre-drilled for 2 x Nilai500 & PS500DIY
    (case-kit excluding any modules)

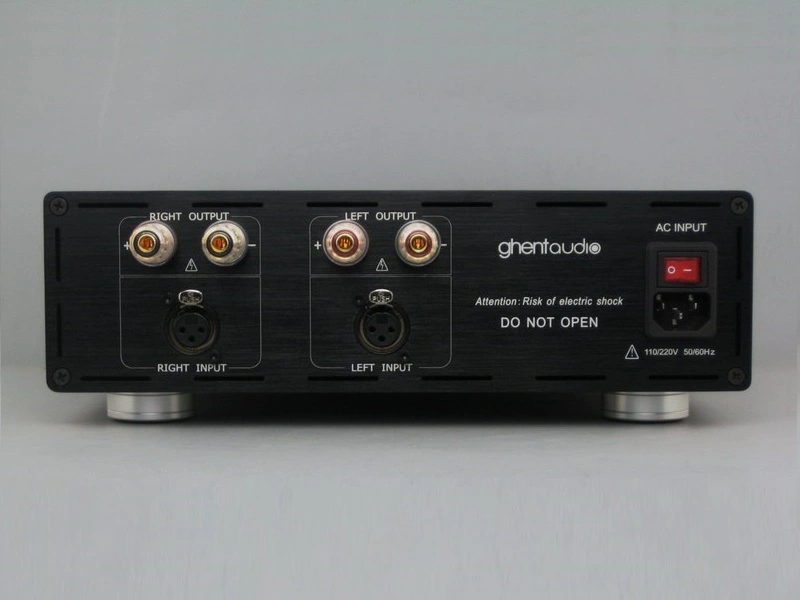

  • Input: we provide two kinds of XLR options:
    ---Soldering: GP110 Gold-plated XLR socket
    ---Screw-Type: GP119 Neutrik Gold-plated XLR socket
  • Output: GP100 Gold-plated Binding posts (included)
  • Solderless: It would be a solderless kit if choosing screw-type XLR

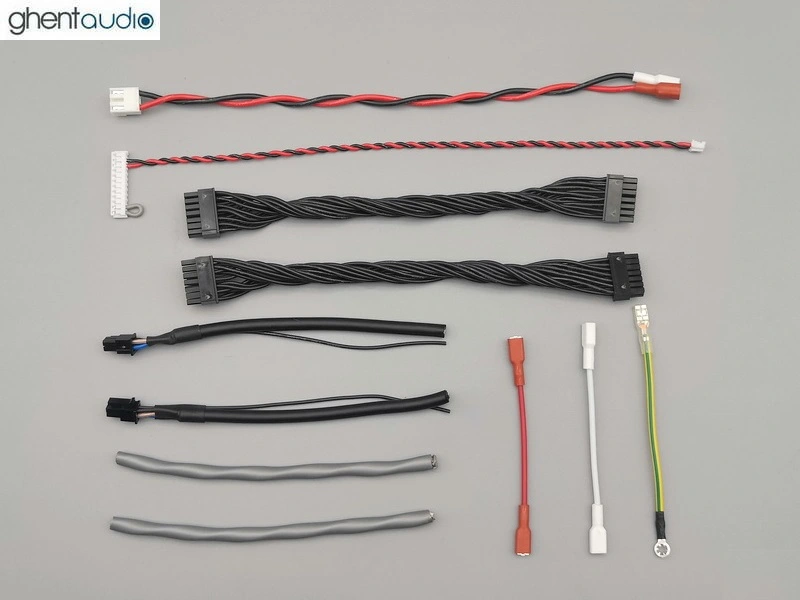

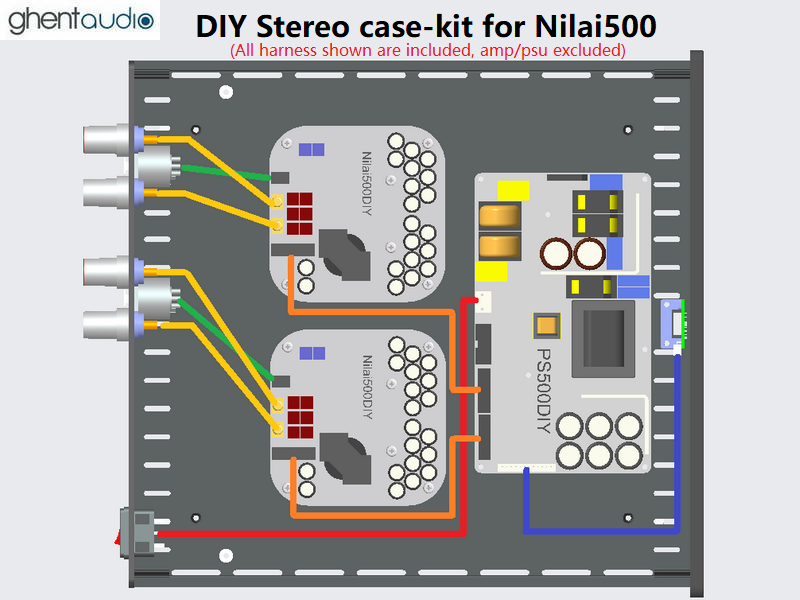

Internal Harness (Free included)
  • 1-Mains harness: from AC-Inlet to PS500DIY
  • 2-HBUS harness: from PS500DIY to Nilai500 (2pcs)
  • 3-LED harness: from PS500DIY to LED board
  • 4-Signal Input: from XLR to Nilai500 (Mogami OFC W2549 shielded signal cable) (2pcs)
  • 5-Speak output: from Nilai500 to Binding Posts (Belden 8471 speaker cable) (2pcs)

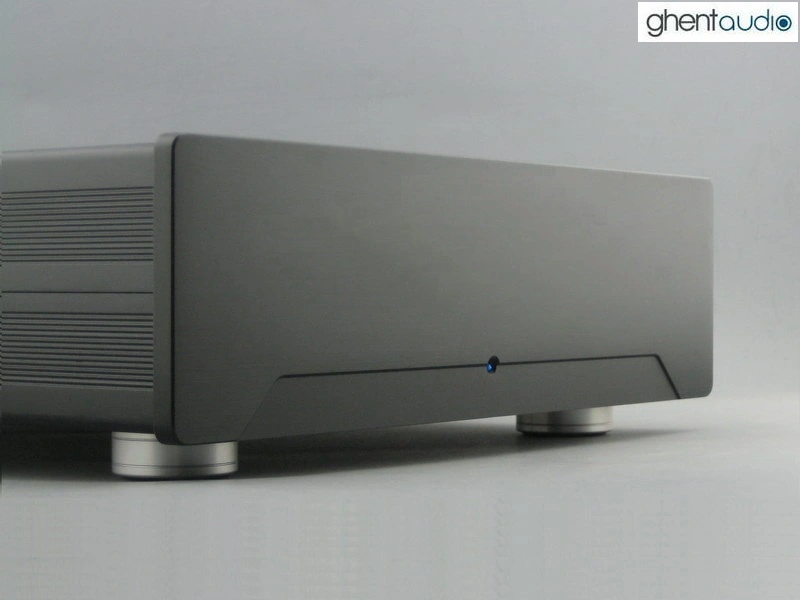

Case Specification
  • Internal size: 288mm(W) x 75mm(H) x 315mm(D)
  • External size: 300mm(W) x 100mm(H) x 326mm(D)
    (External size including feet, excluding connectors)
  • Case Finish:  Full-Black or Silver-Face with Black body
  • LED: Blue/Green/Orange/White(Brightness adjustable)
  • Face-plate: 8mm thickness
  • Top-cover: 5mm thickness, venting holes or slots
  • Bottom-plate: 5mm thickness, pre-drilled for modules
  • Rear-plate: 3mm thickness, laser imprint text

Packing list (All parts packed in Bulk)
Encloser & Parts Audio Parts
Front-Plate x 1
Top-Cover x 1
Bottom-Plate x 1
Rear-Plate x 1
Aluminum Foot x 4
Front-support x 2
Screws set
AC-Inlet & Switch x 1
XLR socket x 2
Binding Post(Pair) x 2
Dimmer-LED x 1
Internal Harness
