(C315a-S6A) DIY Stereo Case-kit for Purifi EVAL6 (Deltron Banana + ext. speakON)

Name: (C315a-S6A) DIY Stereo Case-kit for Purifi EVAL6 (Deltron Banana + ext. speakON)
Brand: ghentaudio Do something for HiFi Fans
SKU: C315a-S6A
Price: 180 USD
Availability: InStock

0.0 (0)

13 Sold

$180.00

C-series Stereo case-kit, applicable for Purifi EVAL6 & SMPS1200
--- Standard version for Onboard Deltron Banana sockets
--- Two external speakON connector
--- Internal harness free included

Received successfully

Coupon Code

CONTINUE SHOPPING

Quantity:

Add to Favorites (1)

1/1

Description

What's the DIY case-kit?

Case-kit is NOT amp-kit, excluding AMP or PSU modules
Including aluminum encloser, connectors, screws, feet, led and needed internal harness...
DIY (do-it-yourself) project: All parts packed in bulk, please assemble to the complete amp case by yourself
Easy to assembly 4 parts (face/rear/top/bottom) to a completed case, so no instruction/guides provided

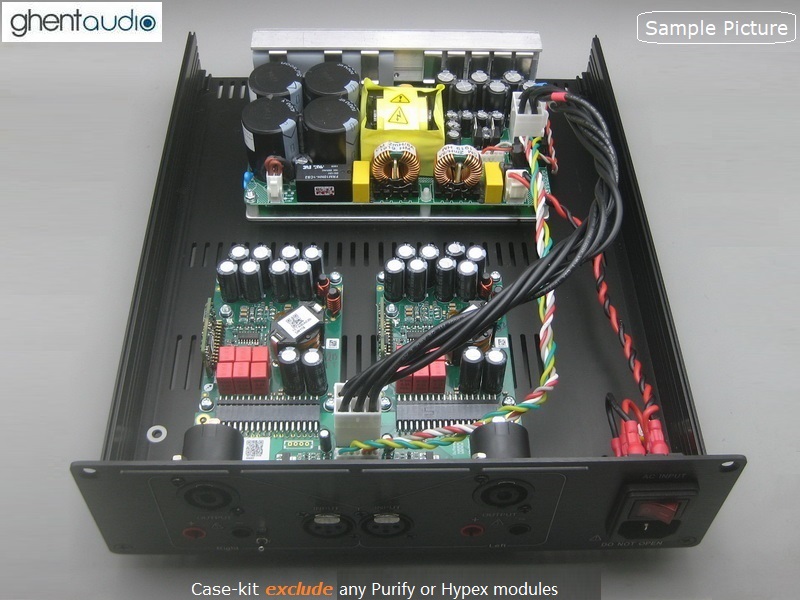

Sample assembling by user: Hypex nCore NC252MP (Ghent case Assembly) (by Joseph Tham)

Brief Introduction

Part number: C315a-S6A (C-series Encloser)
100% Aluminum, the best thermal material for amp

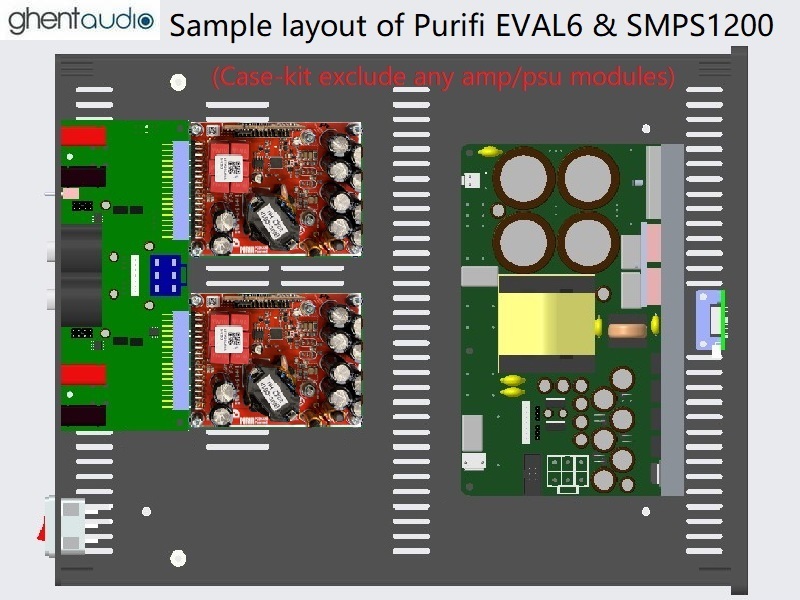

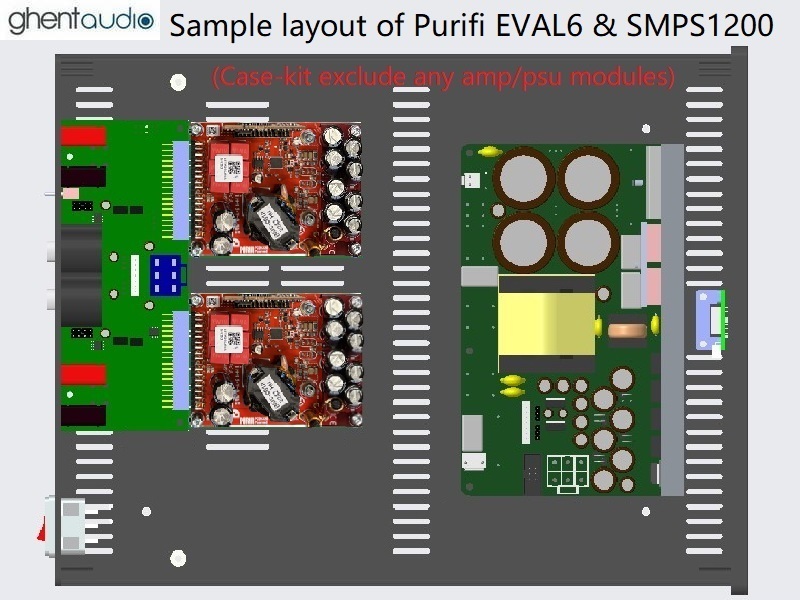

Stereo(2CH) case pre-drilled for Purifi EVAL6 & Hypex SMPS1200 (case-kit excluding any modules)

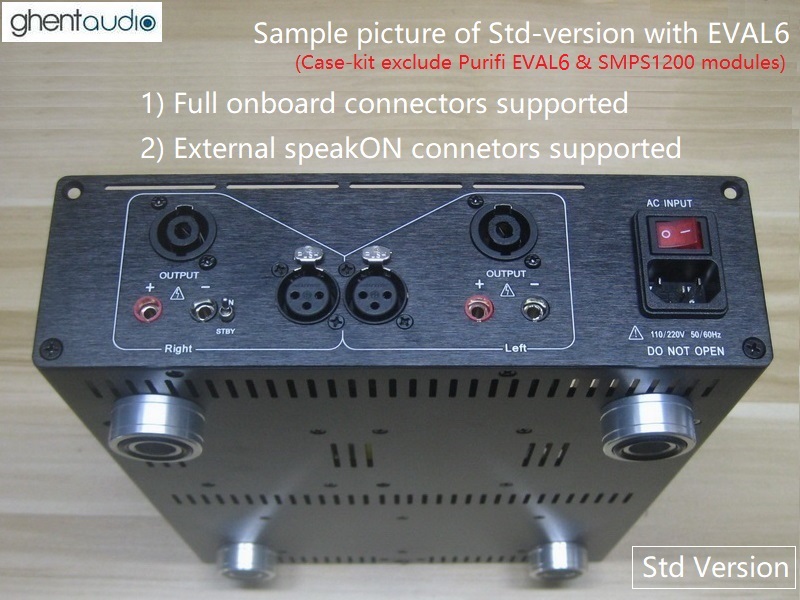

Input: 2 x XLR sockets onboard
Output:
--- 2 pairs of Deltron speaker outputs onboard
--- 2 x speakON: quality Gold-plated speakON

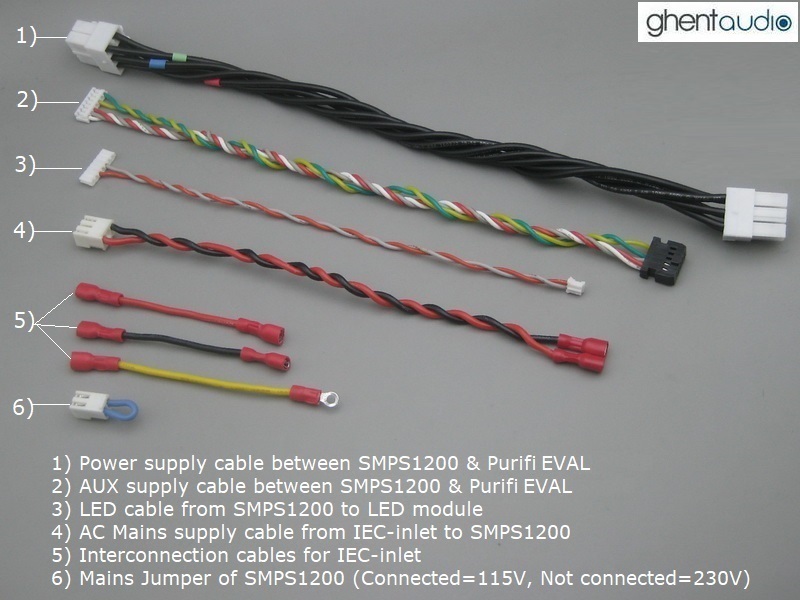

Internal Harness (Free included)

Mains Input: from AC-Inlet to PSU
High-power interconnect: from SMPS1200A400 to EVAL6
Low-power interconnect: from SMPS1200A400 to EVAL6
LED wire: from PSU to LED module
IEC-Inlet Interconnect(3pcs): betwee Power-Button and IEC-inlet, and Ground
Mains-selection Jumper(SMPS1200): NOT Connected=230Vac Mains; Connected=115Vac Mains

Case Specification

Internal size: 242mm(W) x 67mm(H) x 315mm(D)
External size: 250mm(W) x 90mm(H) x 324mm(D)
(External size including feet, excluding connectors)
Case Finish: Full-Black or Silver-Face with Black body
LED: Blue/Green/Orange/White(Brightness adjustable)
Face-plate: 8mm thickness
Top-cover: 4mm thickness, venting holes or slots

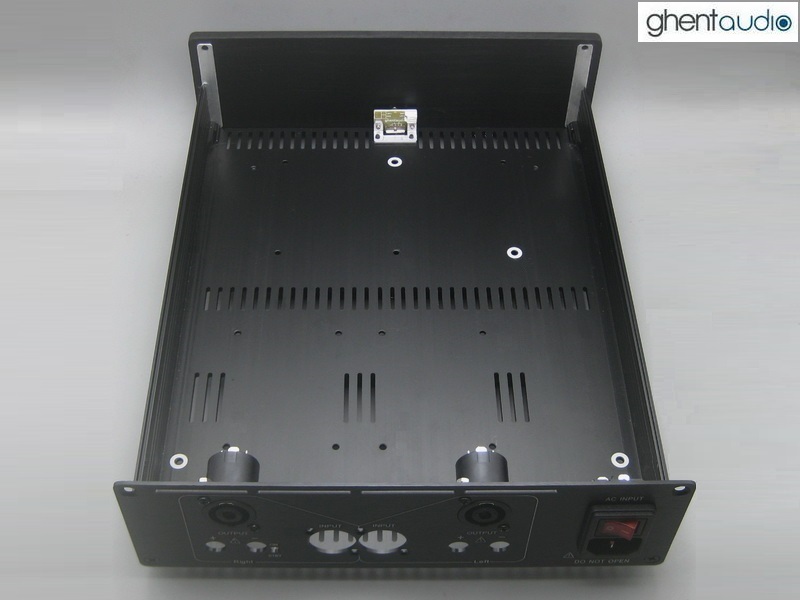

Bottom-plate: 4mm thickness, pre-drilled for modules
Rear-plate: 2mm thickness, laser imprint text

Packing list (All parts packed in Bulk)

Encloser & Parts	Audio Parts
Front-Plate x 1 Top-Cover x 1 Bottom-Plate x 1 Rear-Plate x 1 Aluminum Foot x 4 Front-support x 2 Screws set	AC-Inlet & Switch x 1 speakON chassis connector x 2 Dimmer-LED x 1 Internal Harness
