(BH365a-S1) DIY Stereo Case-kit for ICEpower 1200AS2

SKU:
0.0 (0)
39 Sold
$165.00 $0.00
BH-series Stereo case-kit, applicable modules are:
( case-kit exclude the following module)
------ 1200AS2
------ It's a solderless kit if choosing screw-type XLR :)
------ Custom drilling for other suitable modules
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Face-plate:
  • LED color:
  • XLR Type:
    Please select the information you wantX
Quantity:
  • (BH365a-S1) DIY Mono Case-kit for ICEpower 1200AS2
  • (B265b-M1X) DIY Mono Case-kit for ICEpower 250ASP
  • (B265b-M1X) DIY Mono Case-kit for ICEpower 250ASP
  • (B265b-M1X) DIY Mono Case-kit for ICEpower 250ASP
  • (BH365a-S1) DIY Stereo Case-kit for ICEpower 1200AS2
  • (B265b-M1X) DIY Mono Case-kit for ICEpower 250ASP
  • (B265b-M1X) DIY Mono Case-kit for ICEpower 250ASP
  • (BH315c-M1X) DIY Mono Case-kit for ICEpower 1000ASP
  • (BH365a-S1) DIY Mono Case-kit for ICEpower 1200AS2
  • (BH365a-S1) DIY Mono Case-kit for ICEpower 1200AS2
  • (B265b-M1X) DIY Mono Case-kit for ICEpower 250ASP
  • (B265b-M1X) DIY Mono Case-kit for ICEpower 250ASP
  • (B265b-M1X) DIY Mono Case-kit for ICEpower 250ASP
  • (BH365a-S1) DIY Stereo Case-kit for ICEpower 1200AS2
  • (B265b-M1X) DIY Mono Case-kit for ICEpower 250ASP
  • (B265b-M1X) DIY Mono Case-kit for ICEpower 250ASP
  • (BH315c-M1X) DIY Mono Case-kit for ICEpower 1000ASP
  • (BH365a-S1) DIY Mono Case-kit for ICEpower 1200AS2
1/1
  • (BH365a-S1) DIY Mono Case-kit for ICEpower 1200AS2
  • (B265b-M1X) DIY Mono Case-kit for ICEpower 250ASP
  • (B265b-M1X) DIY Mono Case-kit for ICEpower 250ASP
  • (B265b-M1X) DIY Mono Case-kit for ICEpower 250ASP
  • (BH365a-S1) DIY Stereo Case-kit for ICEpower 1200AS2
  • (B265b-M1X) DIY Mono Case-kit for ICEpower 250ASP
  • (B265b-M1X) DIY Mono Case-kit for ICEpower 250ASP
  • (BH315c-M1X) DIY Mono Case-kit for ICEpower 1000ASP
  • (BH365a-S1) DIY Mono Case-kit for ICEpower 1200AS2
  • Description
What's the DIY case-kit?
  • Case-kit is NOT amp-kit, excluding AMP or PSU modules
  • Including aluminum encloser, connectors, screws, feet, led and needed internal harness...
  • DIY (do-it-yourself) project: All parts packed in bulk, please assemble to the complete amp case by yourself
  • Easy to assembly 4 parts (face/rear/top/bottom) to a completed case, so no instruction/guides provided
  • Sample assembling by user: Hypex nCore NC252MP (Ghent case Assembly) (by Joseph Tham)

Brief Introduction
  • Part number: BH365a-S1 (BH-series Encloser)
  • 100% Aluminum, the best thermal material for amp
  • Stereo(2CH) case pre-drilled for applicable modules (case-kit excluding any modules)
  • Input: we provide two kinds of XLR options:
    ---Soldering: GP110 Gold-plated XLR socket

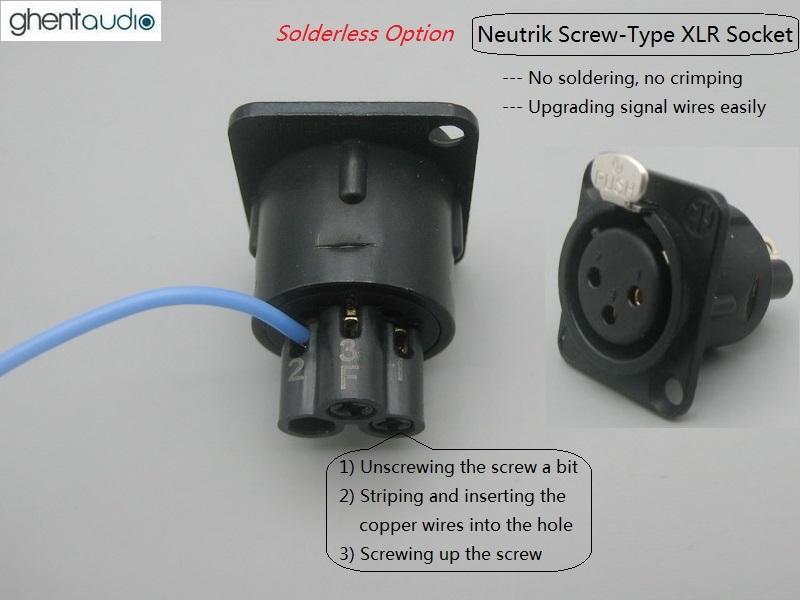

    ---Screw-Type: GP119 Neutrik Gold-plated XLR socket
  • Output: GP100 Gold-plated Binding posts, support soldering or screw-type
  • Solderless: It would be a solderless kit if choosing screw-type XLR :)

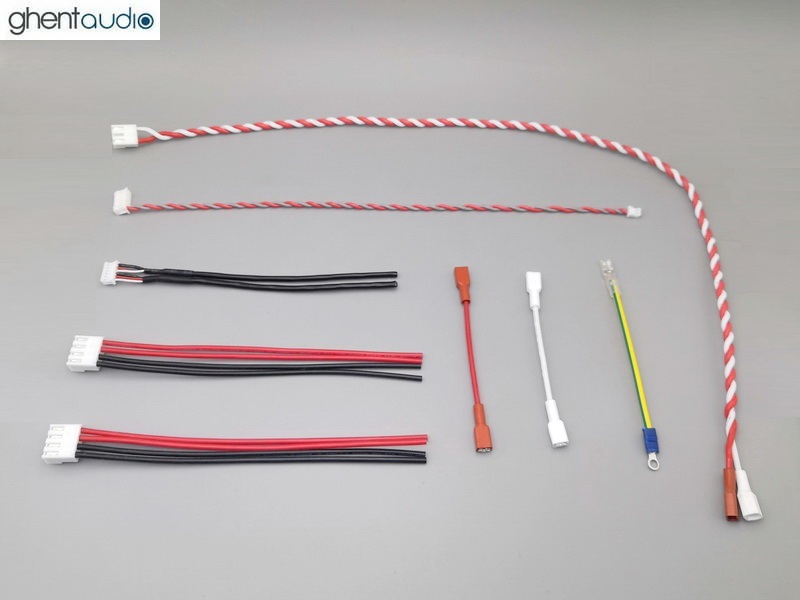

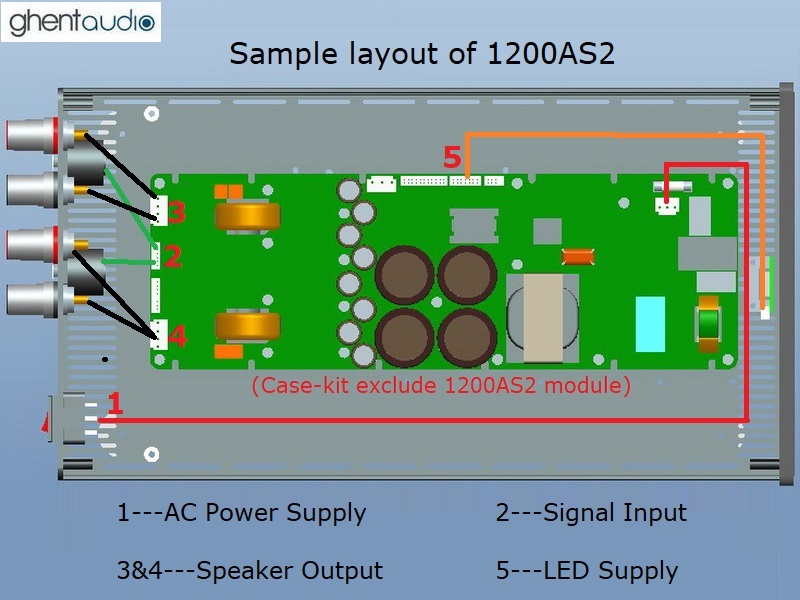

Internal Harness (Free included)
  • Mains wires: from AC-Inlet to PSU
  • Signal wires: XLR socket to amp-module
  • Speak wires: from amp-module to Binding Posts
  • LED wire: from PSU to LED module

Case Specification
  • Internal size: 193mm(W) x 70mm(H) x 365mm(D)
  • External size: 200mm(W) x 90mm(H) x 376mm(D)
    (External size including feet, excluding connectors)
  • Case Finish:  Full-Black or Silver-Face with Black body
  • LED: Blue/Green/Orange/White(Brightness adjustable)
  • Face-plate: 8mm thickness
  • Top-cover: 3mm thickness, venting holes or slots
  • Bottom-plate: 3mm thickness, pre-drilled for modules
  • Rear-plate: 3mm thickness, laser imprint text

Packing list (All parts packed in Bulk)
Encloser & Parts Audio Parts
Front-Plate x 1
Top-Cover x 1
Bottom-Plate x 1
Rear-Plate x 1
Aluminum Foot x 4
Front-support x 2
Screws set
AC-Inlet & Switch x 1
XLR socket x 2
Binding Post(Pair) x 2
Dimmer-LED x 1
Internal Harness
