(B315b-M5S) DIY Mono Case-kit for Purifi EVAL5 (speakON output)

Name: (B315b-M5S) DIY Mono Case-kit for Purifi EVAL5 (speakON output)
Brand: ghentaudio Do something for HiFi Fans
SKU: B315b-M5S
Price: 160 USD
Availability: InStock

0.0 (0)

0 Sold

$160.00

B-series Mono case-kit, 200 x 315mm ( case-kit exclude modules)
------ applicable for Purifi EVAL5 & SMPS1200A180
------ ext. speakON output
------ Internal harness free included

Received successfully

Coupon Code

CONTINUE SHOPPING

Quantity:

Add to Favorites (0)

1/1

Description

What's the DIY case-kit?

Case-kit is NOT amp-kit, excluding AMP or PSU modules
Including aluminum encloser, connectors, screws, feet, led and needed internal harness...
DIY (do-it-yourself) project: All parts packed in bulk, please assemble to the complete amp case by yourself
Easy to assembly 4 parts (face/rear/top/bottom) to a completed case, so no instruction/guides provided
Sample assembling by user: Hypex nCore NC252MP (Ghent case Assembly) (by Joseph Tham)

Brief Introduction

Part number: B315b-M5S (B-series Encloser)
100% Aluminum, the best thermal material for amp
Mono(1CH) case pre-drilled for applicable modules (case-kit excluding any modules)
Input: XLR socket attached on EVAL5 board

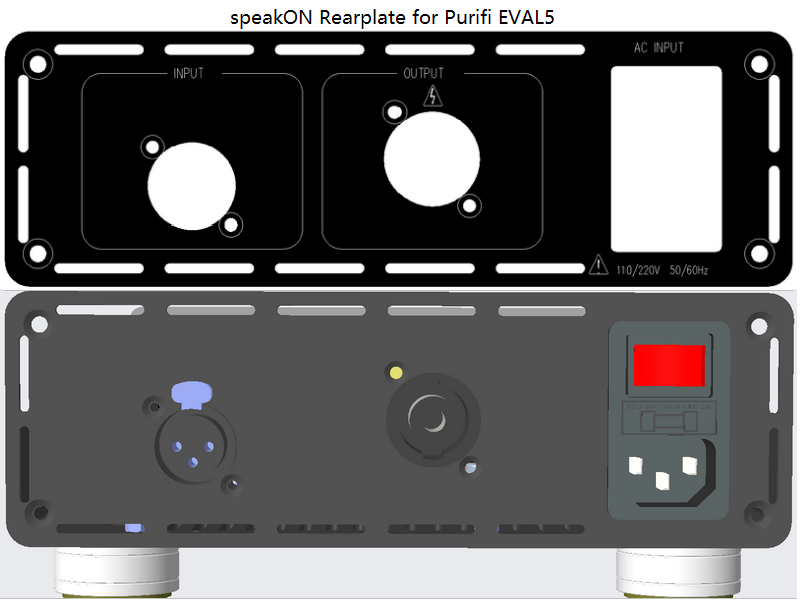

Output: ext. 4-Pole speakON chassis connector

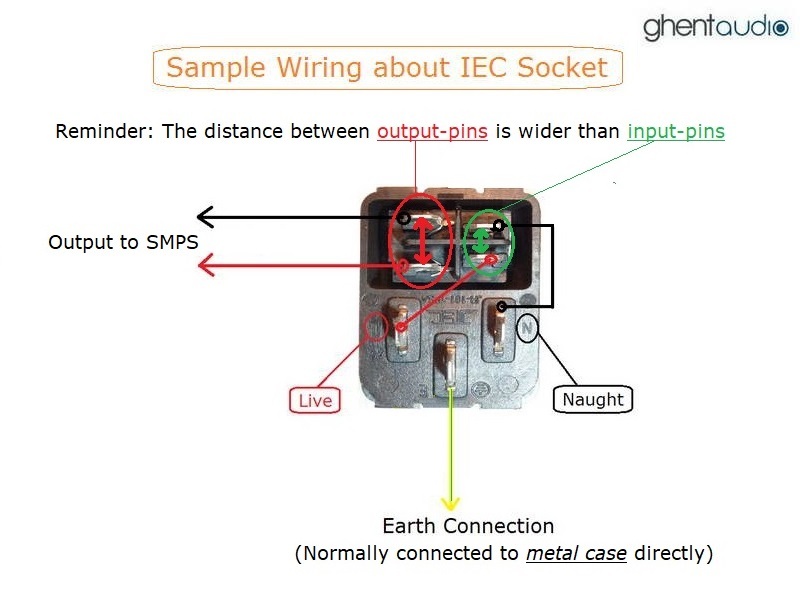

IEC-Inlet: JEC JR-101-1FRS Fused Mains IEC-Inlet with Switch

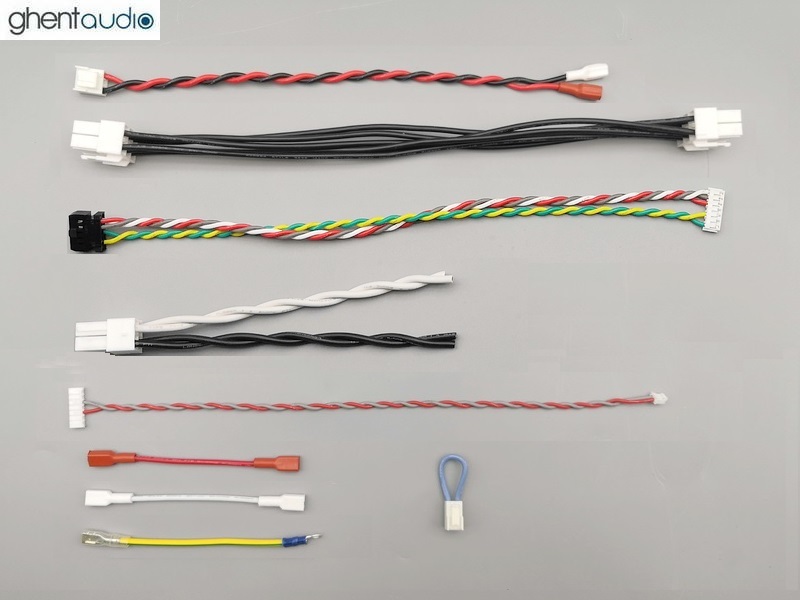

Internal Harness (Free included)

Mains Input: from AC-Inlet to PSU
Power interconnect: from SMPS1200 to EVAL5
Speaker Output: from EVAL5 to Binding Posts
LED wire: from SMPS1200 to LED module
IEC-Inlet Interconnect(3pcs): betwee Power-Button and IEC-inlet, and Ground
Mains-selection Jumper(SMPS1200): NOT Connected=230Vac Mains; Connected=115Vac Mains

Case Specification

Internal size: 193mm(W) x 58mm(H) x 315mm(D)
External size: 200mm(W) x 78mm(H) x 325mm(D)
(External size including feet, excluding connectors)
Case Finish: Full-Black or Silver-Face with Black body

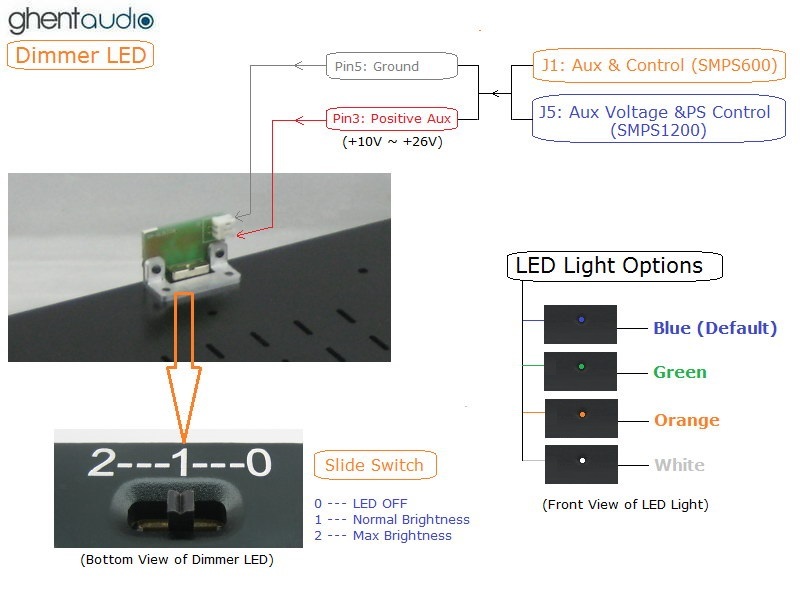

LED: Blue/Green/Orange/White(Brightness adjustable)
Face-plate: 8mm thickness
Top-cover: 3mm thickness, venting holes or slots
Bottom-plate: 3mm thickness, pre-drilled for modules
Rear-plate: 2mm thickness, laser imprint text
