(B265c-M1) DIY Mono Case-kit for Hypex NC500MP

SKU:
0.0 (0)
0 Sold
$135.00 $0.00
B-series Mono case-kit, applicable modules are:
------ Hypex NC500MP
------ Custom drilling for other suitable modules
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Face-plate:
  • LED color:
  • XLR Type:
    Please select the information you wantX
Quantity:
Add to Favorites (0)
  • (B265c-M1) DIY Mono Case-kit for Hypex NC500MP
  • (B265a-M3) DIY Mono Case-kit for Hypex Ncore NC1200
  • (B265a-M4) DIY Mono Case-kit for Hypex UcD400
  • (B265a-M2) DIY Mono Case-kit for UcD400/UcD700
  • (B265c-M1) DIY Mono Case-kit for Hypex NC500MP
  • (B265a-M4) DIY Mono Case-kit for Hypex UcD400
  • (B265a-M3) DIY Mono Case-kit for Hypex Ncore NC1200
  • (B265a-M3) DIY Mono Case-kit for Hypex Ncore NC1200
  • (B265a-M1) DIY Mono Case-kit for Hypex Ncore NC400
  • (B265c-M1) DIY Mono Case-kit for Hypex NC500MP
  • (B265a-M3) DIY Mono Case-kit for Hypex Ncore NC1200
  • (B265a-M4) DIY Mono Case-kit for Hypex UcD400
  • (B265a-M2) DIY Mono Case-kit for UcD400/UcD700
  • (B265c-M1) DIY Mono Case-kit for Hypex NC500MP
  • (B265a-M4) DIY Mono Case-kit for Hypex UcD400
  • (B265a-M3) DIY Mono Case-kit for Hypex Ncore NC1200
  • (B265a-M3) DIY Mono Case-kit for Hypex Ncore NC1200
  • (B265a-M1) DIY Mono Case-kit for Hypex Ncore NC400
1/1
  • (B265c-M1) DIY Mono Case-kit for Hypex NC500MP
  • (B265a-M3) DIY Mono Case-kit for Hypex Ncore NC1200
  • (B265a-M4) DIY Mono Case-kit for Hypex UcD400
  • (B265a-M2) DIY Mono Case-kit for UcD400/UcD700
  • (B265c-M1) DIY Mono Case-kit for Hypex NC500MP
  • (B265a-M4) DIY Mono Case-kit for Hypex UcD400
  • (B265a-M3) DIY Mono Case-kit for Hypex Ncore NC1200
  • (B265a-M3) DIY Mono Case-kit for Hypex Ncore NC1200
  • (B265a-M1) DIY Mono Case-kit for Hypex Ncore NC400
  • Description
What's the DIY case-kit?
  • Case-kit is NOT amp-kit, excluding AMP or PSU modules
  • Including aluminum encloser, connectors, screws, feet, led and needed internal harness...
  • DIY (do-it-yourself) project: All parts packed in bulk, please assemble to the complete amp case by yourself
  • Easy to assembly 4 parts (face/rear/top/bottom) to a completed case, so no instruction/guides provided
  • Sample assembling by user: Hypex nCore NC252MP (Ghent case Assembly) (by Joseph Tham)

Brief Introduction
  • Part number: B265c-M1 (B-series Encloser)
  • 100% Aluminum, the best thermal material for amp
  • Mono(1CH) case pre-drilled for NC1200 OEM & SMPS1200
    (case-kit excluding any modules)
  • Input: GP110 Soldering XLR socket, or GP111 Screw-Type XLR socket
  • Output: GP100 Gold-plated Binding posts (included)

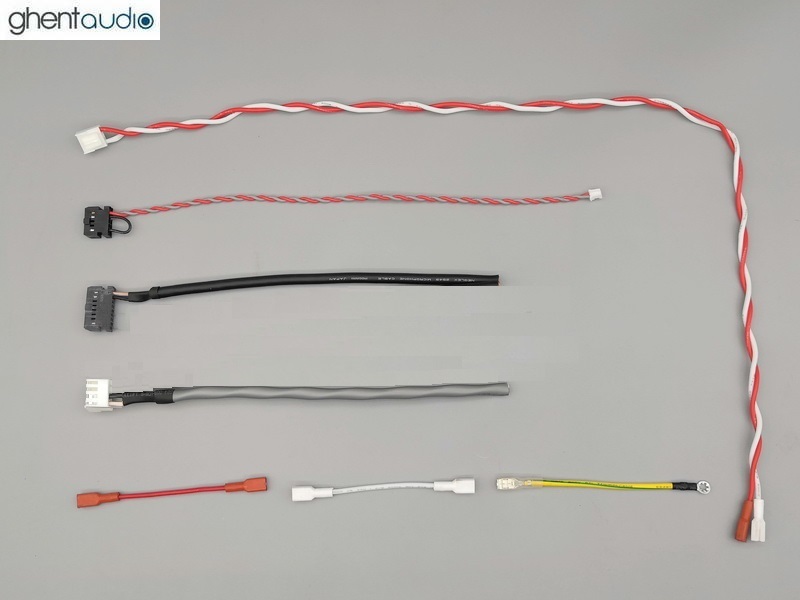

Internal Harness (Free included)
  • Mains wires-1: from AC-Inlet to NC500MP
  • Signal Input: from XLR socket to NC500MP
  • Speak output: from NC500MP to Binding Posts
  • LED wire: from NC500MP to LED board



Case Specification
  • Internal size: 193mm(W) x 58mm(H) x 265mm(D)
  • External size: 200mm(W) x 78mm(H) x 276mm(D)
    (External size including feet, excluding connectors)
  • Case Finish:  Full-Black or Silver-Face with Black body
  • LED: Blue/Green/Orange/White(Brightness adjustable)
  • Face-plate: 8mm thickness
  • Top-cover: 3mm thickness, venting holes or slots
  • Bottom-plate: 3mm thickness, pre-drilled for modules
  • Rear-plate: 3mm thickness, laser imprint text

Packing list (All parts packed in Bulk)
Encloser & Parts Audio Parts
Front-Plate x 1
Top-Cover x 1
Bottom-Plate x 1
Rear-Plate x 1
Aluminum Foot x 4
Front-support x 2
Screws set		 AC-Inlet & Switch x 1
XLR socket x 1
Binding Post(Pair) x 1
Dimmer-LED x 1
Internal Harness
