(B265b-S1R) DIY Stereo Case-kit for ICEpower 2 x 125ASX2(BTL) (RCA inputs)

SKU:
0.0 (0)
2 Sold
$125.00 $0.00
B-series Stereo case-kit, applicable modules are:
( case-kit exclude the following module)
------ 2 x 125ASX2(BTL) (RCA inputs)
------ (Option) ghentaudio RTX module (Converting RCA to balanced XLR)
------ Custom drilling for other suitable modules
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Face-plate:
  • LED color:
    Please select the information you wantX
Quantity:
  • (B265b-S1R) DIY Stereo Case-kit for ICEpower 2 x 125ASX2(BTL) (RCA inputs)

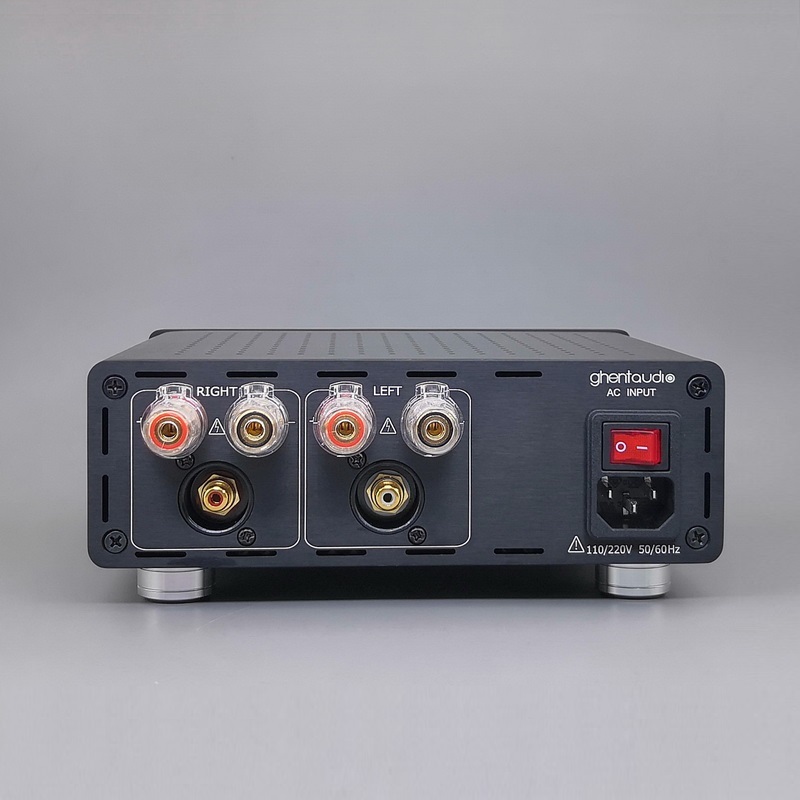

  • (B180a-S1) DIY Stereo Case-kit for NC122MP
  • (B180a-M1) DIY Mono Case-kit for Hypex NC250MP
  • (B180b-M1) DIY Mono Case-kit for ICEpower 100AS1
  • (B180b-S3) DIY Mono Case-kit for ICEpower 100AS2
  • (B235a-S1R) DIY Stereo Case-kit for ICEpower 2 x 50ASX2BTL (RCA inputs)
  • (B235a-S1R) DIY Stereo Case-kit for ICEpower 2 x 50ASX2BTL (RCA inputs)
  • Description

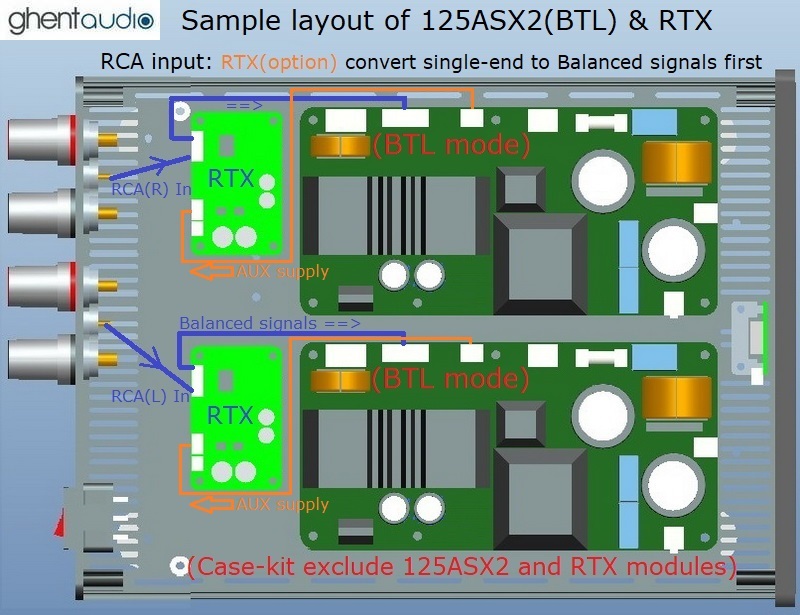

Important info about RTX module
  • 125ASX2(BTL mode) would sound the best quality via balanced XLR inputs;
  • If pre-amp with RCA output only, then our RTX module could help to convert RCA to XLR signals;
  • Each RTX support 1/ch converting, so two RTX modules for Stereo requirements
  • This case-kit does not include RTX module, please click here to order RTX separately;

What's the DIY case-kit?
  • Case-kit is NOT amp-kit, excluding AMP or PSU modules
  • Including aluminum encloser, connectors, screws, feet, led and needed internal harness...
  • DIY (do-it-yourself) project: All parts packed in bulk, please assemble to the complete amp case by yourself
  • Easy to assembly 4 parts (face/rear/top/bottom) to a completed case, so no instruction/guides provided
  • Sample assembling by user: Hypex nCore NC252MP (Ghent case Assembly) (by Joseph Tham)

Brief Introduction
  • Part number: B265b-S1R (B-series Encloser)
  • 100% Aluminum, the best thermal material for amp
  • Stereo(2CH) case pre-drilled for applicable modules (case-kit excluding any modules)

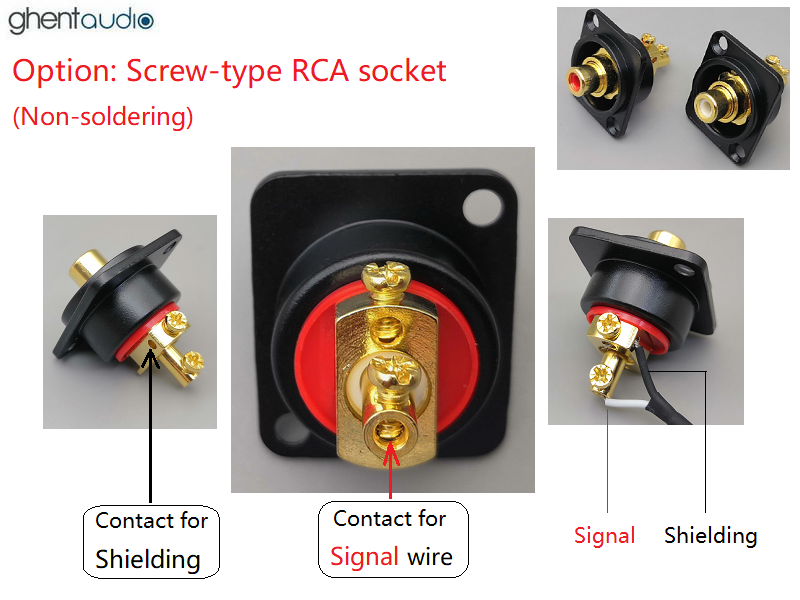

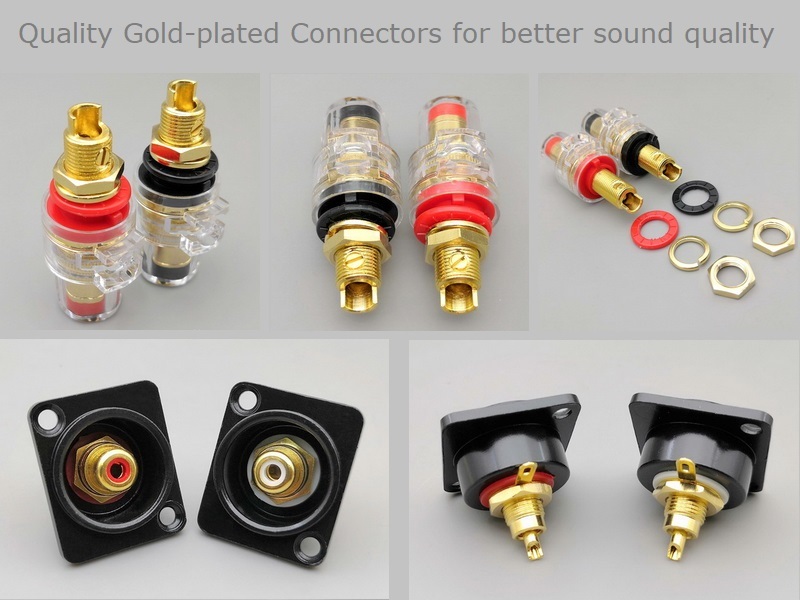

  • Input: GP120 Gold-plated RCA socket (Soldering connector)
  • Output: GP100 Gold-plated Binding posts, support soldering or screw-type

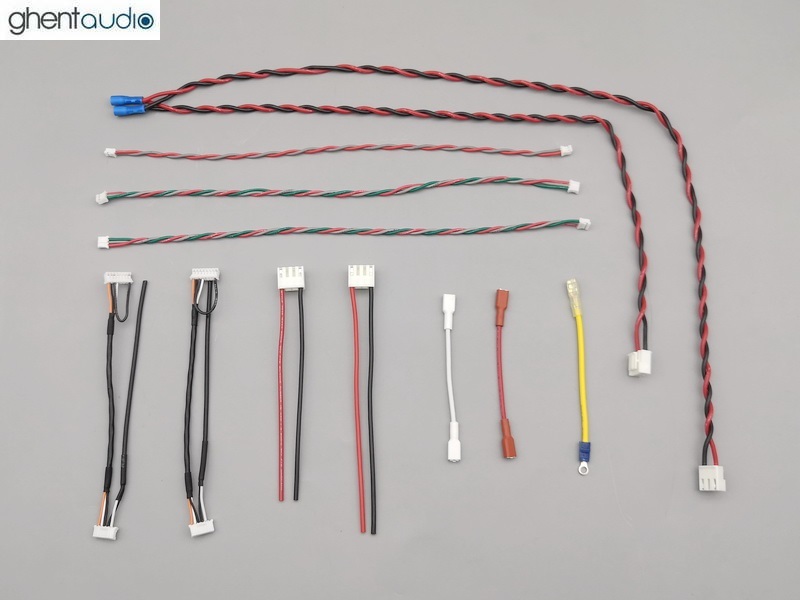

Internal Harness (Free included)
  • Mains wires: from AC-Inlet to PSU
  • Signal wires: XLR socket to amp-module
  • Speak wires: from amp-module to Binding Posts
  • LED wire: from PSU to LED module

(Option) RTX Module (click here to order RTX)
  • If pre-amp with RCA Output but 50ASX2BTL need Balanced Input, then RTX help :)
  • Well designed circuit for "unbalanced to balanced" converting: RCA-in then XLR-out
  • One RTX module support 1/ch converting, so two RTX modules for Stereo requirements
  • Power input: ±24 or ±12V (jumper setting) from AUX of class-D modules, no extra noise from external PSU
  • DC out for LED light (please put a resistor in series)
  • All needed Jumpers/cables/brass studs/screws are provided together

Case Specification
  • Internal size: 193mm(W) x 58mm(H) x 265mm(D)
  • External size: 200mm(W) x 78mm(H) x 276mm(D)
    (External size including feet, excluding connectors)
  • Case Finish:  Full-Black or Silver-Face with Black body
  • LED: Blue/Green/Orange/White(Brightness adjustable)
  • Face-plate: 8mm thickness
  • Top-cover: 3mm thickness, venting holes or slots
  • Bottom-plate: 3mm thickness, pre-drilled for modules
  • Rear-plate: 3mm thickness, laser imprint text

Packing list (All parts packed in Bulk)
Encloser & Parts Audio Parts
Front-Plate x 1
Top-Cover x 1
Bottom-Plate x 1
Rear-Plate x 1
Aluminum Foot x 4
Front-support x 2
Screws set
AC-Inlet & Switch x 1
RCA socket x 2
Binding Post(Pair) x 2
Dimmer-LED x 1
Internal Harness
