(B265a-M1S) DIY Mono Case-kit(speakON) for Hypex Ncore NC400

SKU:
0.0 (0)
1 Sold
$120.00 $0.00
B-series Mono case-kit, applicable modules are:
------ NC400 & SMPS600
------ speakON output
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Face-plate:
  • LED color:
  • XLR Type:
    Please select the information you wantX
Quantity:
  • (B265a-M1S) DIY Mono Case-kit(speakON) for Hypex Ncore NC400
  • (B265a-M1S) DIY Mono Case-kit(speakON) for Hypex Ncore NC400
  • (B265a-M4) DIY Mono Case-kit for Hypex UcD400
  • (B265a-M2) DIY Mono Case-kit for UcD400/UcD700
  • (B265a-M4) DIY Mono Case-kit for Hypex UcD400
  • (B265a-M4) DIY Mono Case-kit for Hypex UcD400
  • (B265a-M1) DIY Mono Case-kit for Hypex Ncore NC400
  • (B265a-M1) DIY Mono Case-kit for Hypex Ncore NC400
  • Description
What's the DIY case-kit?
  • Case-kit is NOT amp-kit, excluding AMP or PSU modules
  • Including aluminum encloser, connectors, screws, feet, led and needed internal harness...
  • DIY (do-it-yourself) project: All parts packed in bulk, please assemble to the complete amp case by yourself
  • Easy to assembly 4 parts (face/rear/top/bottom) to a completed case, so no instruction/guides provided
  • Sample assembling by user: Hypex nCore NC252MP (Ghent case Assembly) (by Joseph Tham)

Brief Introduction
  • Part number: B265a-M1S (B-series Encloser)
  • 100% Aluminum, the best thermal material for amp

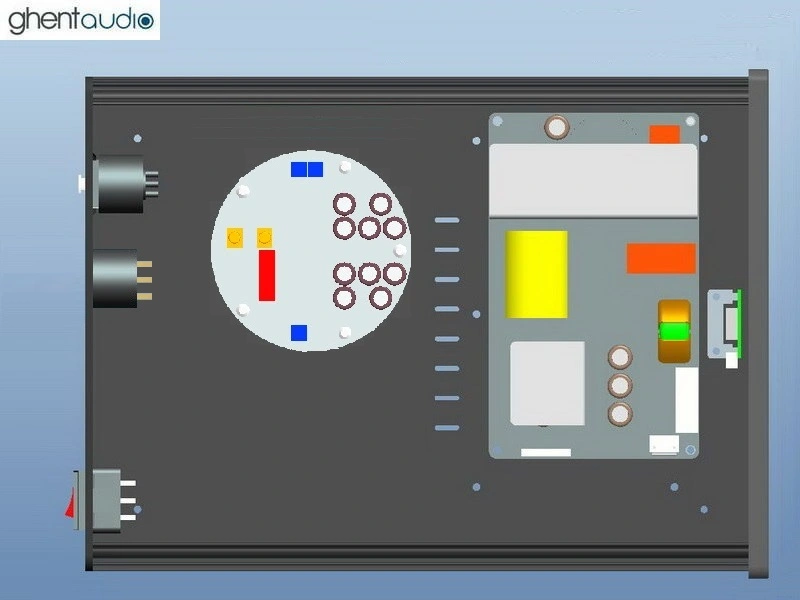

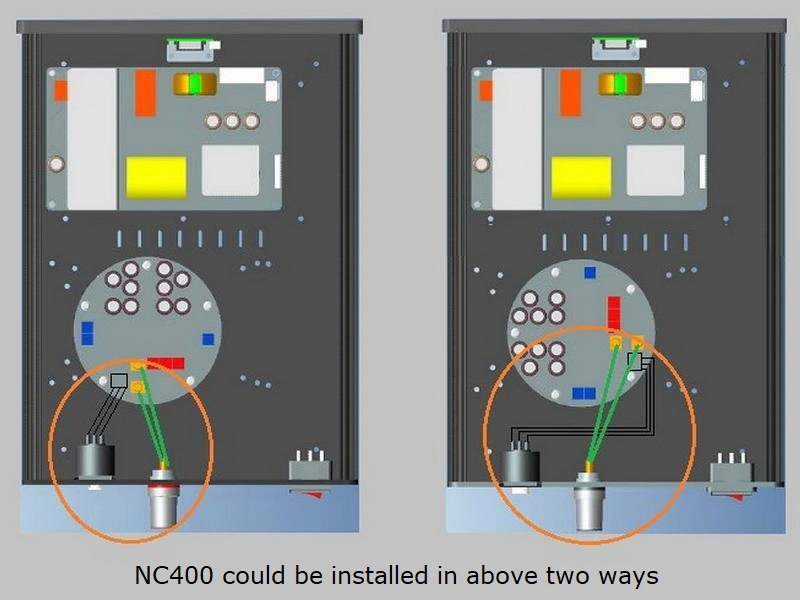

  • Mono(1CH) case pre-drilled for NC400 & SMPS600
    (case-kit excluding any modules)
  • Input: we provide two kinds of XLR options:
    ---Soldering: GP110 Gold-plated XLR socket
    ---Screw-Type: GP119 Neutrik Gold-plated XLR socket
  • Output: GP130 Gold-plated speakON Chassis connector
  • Solderless: It would be a solderless kit if choosing screw-type XLR

Internal Harness (Free included)
  • Mains wires: from AC-Inlet to PSU
  • Speak wires: from NC400 to Binding Posts
  • LED wire: from PSU to LED module
  • Please prepare other signal/speaker/power supply wires...etc by yourself

Case Specification
  • Internal size: 193mm(W) x 58mm(H) x 265mm(D)
  • External size: 200mm(W) x 78mm(H) x 276mm(D)
    (External size including feet, excluding connectors)

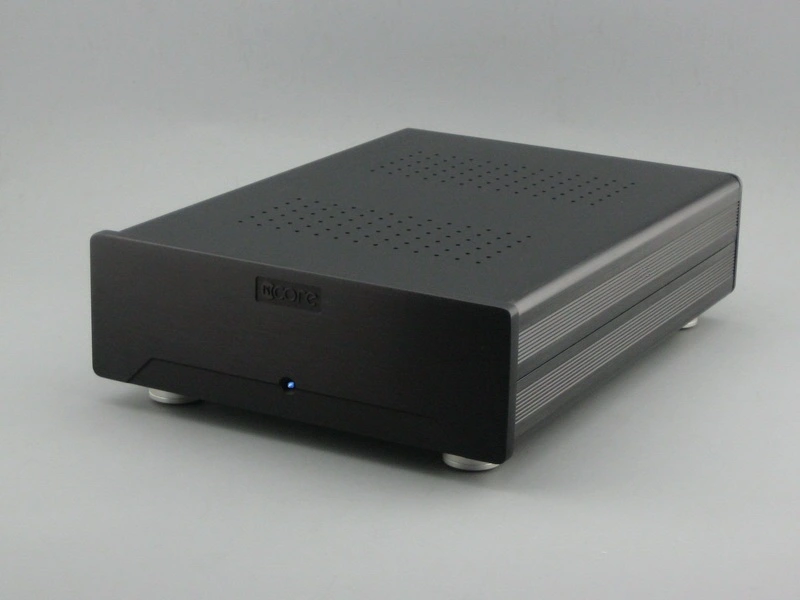

  • Case Finish:  Full-Black or Silver-Face with Black body
  • LED: Blue/Green/Orange/White(Brightness adjustable)
  • Face-plate: 8mm thickness
  • Top-cover: 3mm thickness, venting holes or slots
  • Bottom-plate: 3mm thickness, pre-drilled for modules

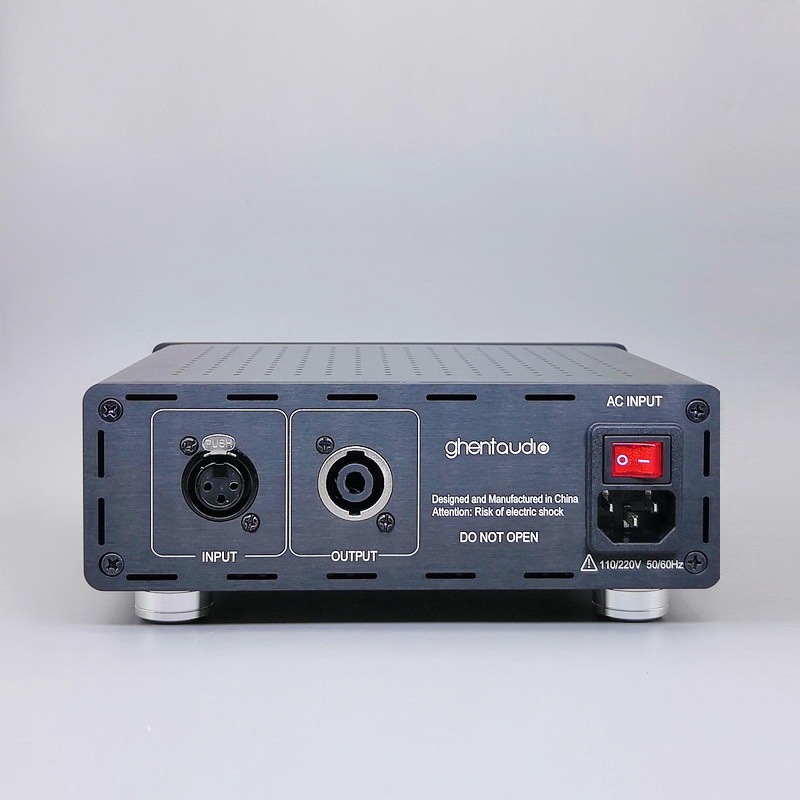

  • Rear-plate: 3mm thickness, laser imprint text

Packing list (All parts packed in Bulk)
Encloser & Parts Audio Parts
Front-Plate x 1
Top-Cover x 1
Bottom-Plate x 1
Rear-Plate x 1
Aluminum Foot x 4
Front-support x 2
Screws set
AC-Inlet & Switch x 1
XLR socket x 1
speakON Chassis connector x 1
Dimmer-LED x 1
Internal Harness
