(B235a-M1XR) DIY Mono Case-kit for ICEpower 250ASP

Name: (B235a-M1XR) DIY Mono Case-kit for ICEpower 250ASP
Brand: ghentaudio Do something for HiFi Fans
Price: 115 USD
Availability: InStock

0.0 (0)

0 Sold

$115.00

B-series Mono case-kit, both RCA and XLR inputs. Applicable modules:
( case-kit exclude the following module)
------ 250ASP
------ (Option) RTX module (Converting RCA to balanced XLR)
------ Custom drilling for other suitable modules

Received successfully

Coupon Code

CONTINUE SHOPPING

Quantity:

Add to Favorites (0)

Description

What's the DIY case-kit?

Case-kit is NOT amp-kit, excluding AMP or PSU modules
Including aluminum encloser, connectors, screws, feet, led and needed internal harness...
DIY (do-it-yourself) project: All parts packed in bulk, please assemble to the complete amp case by yourself
Easy to assembly 4 parts (face/rear/top/bottom) to a completed case, so no instruction/guides provided
Sample assembling by user: Hypex nCore NC252MP (Ghent case Assembly) (by Joseph Tham)

Brief Introduction

Part number: B235a-M1XR (B-series Encloser)
100% Aluminum, the best thermal material for amp

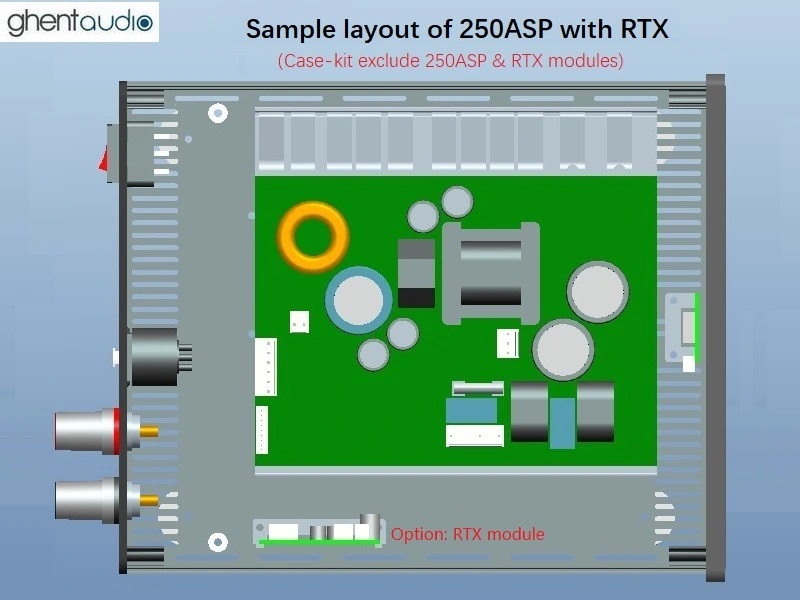

Mono(1CH) case pre-drilled for applicable modules (case-kit excluding any modules)
Input: Both RCA and XLR inputs:
---RCA: GP129 Gold-plated RCA socket (RTX could convert RCA to Balanced XLR)
---XLR: GP110 Gold-plated XLR socket
---Toggle Switch: GP901 DPDT 6Pins
---User could use any one as input, or both inputs switched by DPDT
Output: GP100 Gold-plated Binding posts, support soldering or screw-type

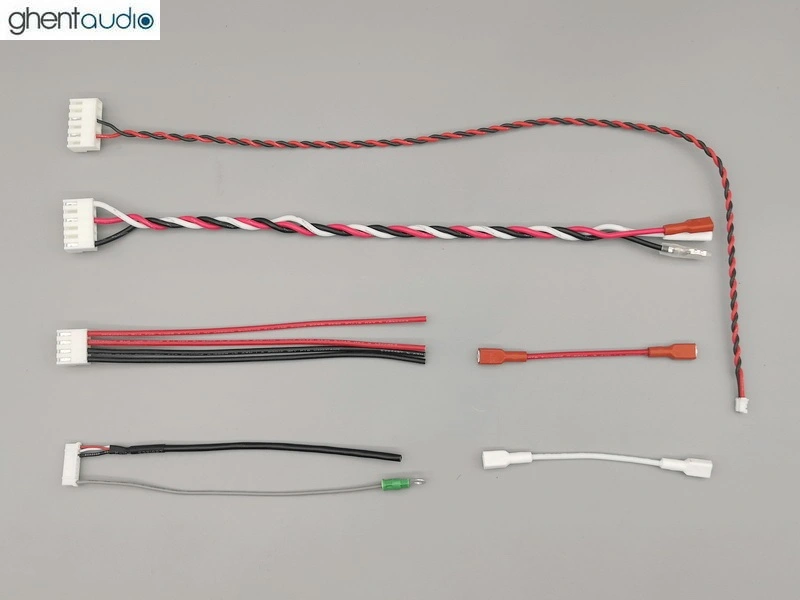

Internal Harness (Free included)

Mains wires: from AC-Inlet to PSU
Signal wires: XLR socket to amp-module
Speak wires: from amp-module to Binding Posts
LED wire: from PSU to LED module

(Option) RTX Module (click here to order RTX)

If pre-amp with RCA Output but module need Balanced Input, then RTX help :)
Well designed circuit for "unbalanced to balanced" converting: RCA-in then XLR-out
One RTX module support 1/ch converting, so two RTX modules for Stereo requirements
Power input: ±24 or ±12V (jumper setting) from AUX of class-D modules, no extra noise from external PSU
DC out for LED light (please put a resistor in series)
All needed Jumpers/cables/brass studs/screws are provided together

Case Specification

Internal size: 193mm(W) x 58mm(H) x 235mm(D)
External size: 200mm(W) x 78mm(H) x 246mm(D)
(External size including feet, excluding connectors)

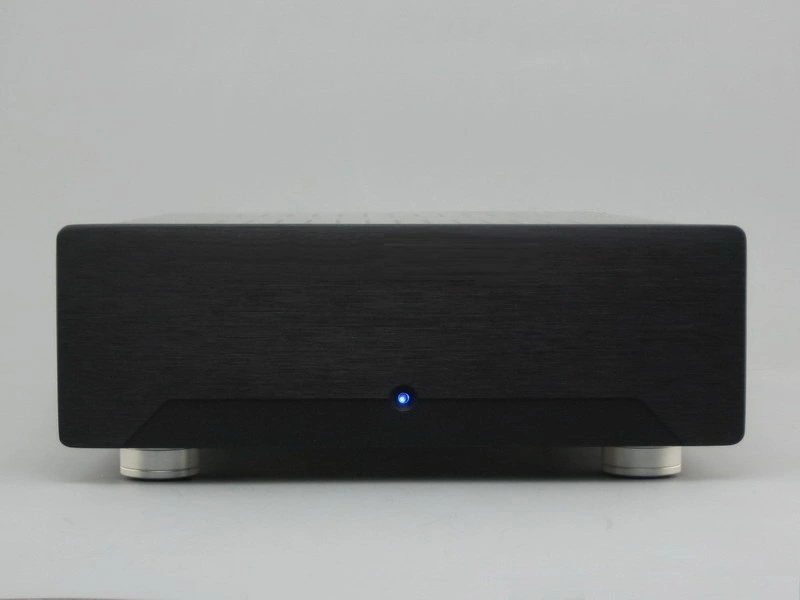

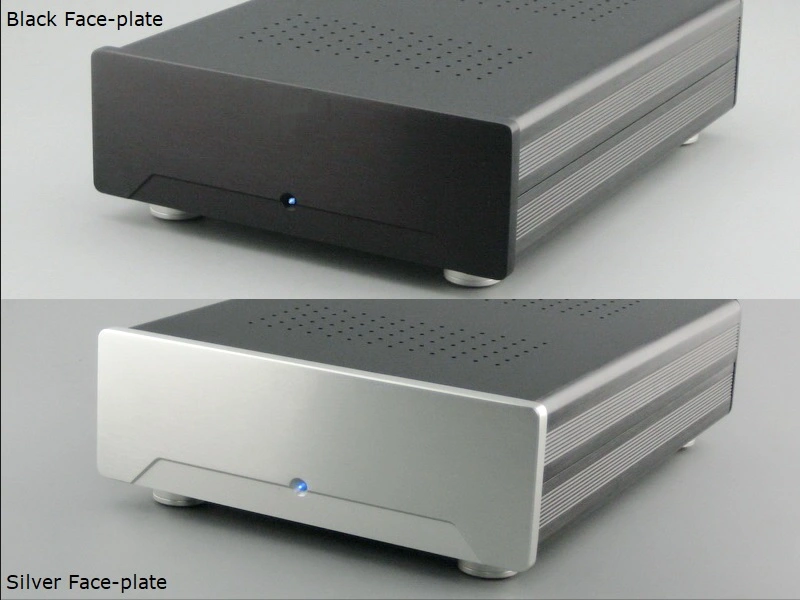

Case Finish: Full-Black or Silver-Face with Black body

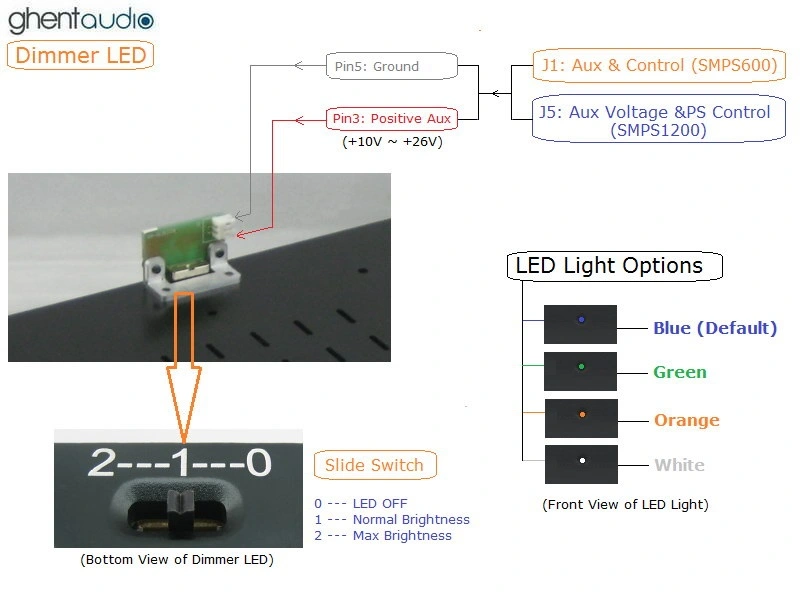

LED: Blue/Green/Orange/White(Brightness adjustable)
Face-plate: 8mm thickness
Top-cover: 3mm thickness, venting holes or slots
Bottom-plate: 3mm thickness, pre-drilled for modules
Rear-plate: 3mm thickness, laser imprint text

Packing list (All parts packed in Bulk)

Encloser & Parts	Audio Parts
Front-Plate x 1 Top-Cover x 1 Bottom-Plate x 1 Rear-Plate x 1 Aluminum Foot x 4 Front-support x 2 Screws set	AC-Inlet & Switch x 1 RCA socket x 1 XLR socket x 1 DPDT toggle switch x 1 Binding Post(Pair) x 1 Dimmer-LED x 1 Internal Harness
