(B180a-M2) DIY Mono Case-kit for Hypex NC500MP

Name: (B180a-M2) DIY Mono Case-kit for Hypex NC500MP
Brand: ghentaudio Do something for HiFi Fans
Price: 95 USD
Availability: InStock

0.0 (0)

2 Sold

$95.00

B-series Mono case-kit, applicable modules are:
( case-kit exclude the following module)
------ NC500MP
------ It's a solderless kit if choosing screw-type XLR :)
------ Custom drilling for other suitable modules

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Face-plate:
LED color:
XLR Type:

Quantity:

Add to Favorites (0)

Description

What's the DIY case-kit?

Case-kit is NOT amp-kit, excluding AMP or PSU modules
Including aluminum encloser, connectors, screws, feet, led and needed internal harness...
DIY (do-it-yourself) project: All parts packed in bulk, please assemble to the complete amp case by yourself
Easy to assembly 4 parts (face/rear/top/bottom) to a completed case, so no instruction/guides provided
Sample assembling by user: Hypex nCore NC252MP (Ghent case Assembly) (by Joseph Tham)

Brief Introduction

Part number: B180a-M2 (B-series Encloser)
100% Aluminum, the best thermal material for amp

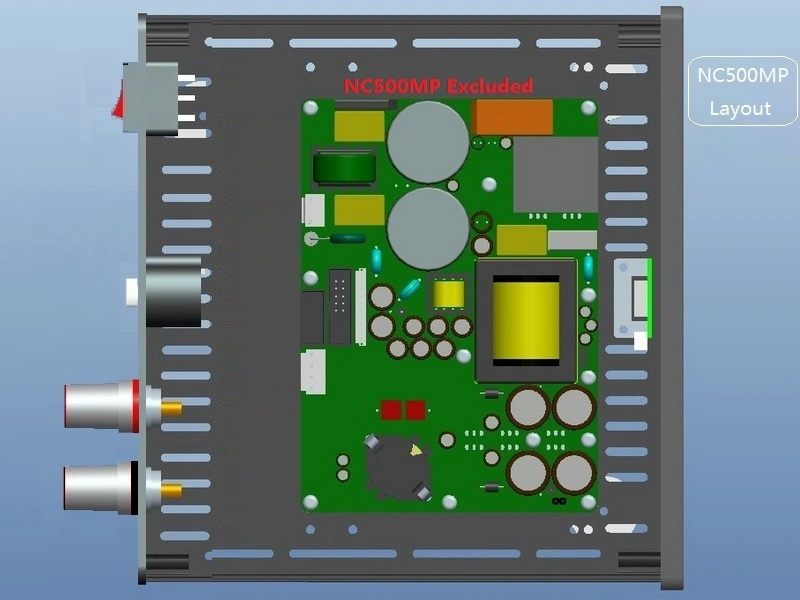

Mono(1CH) case pre-drilled for applicable modules (case-kit excluding any modules)
Input: we provide two kinds of XLR options：
---Soldering: GP110 Gold-plated XLR socket
---Screw-Type: GP119 Neutrik Gold-plated XLR socket
Output: GP100 Gold-plated Binding posts, support soldering or screw-type

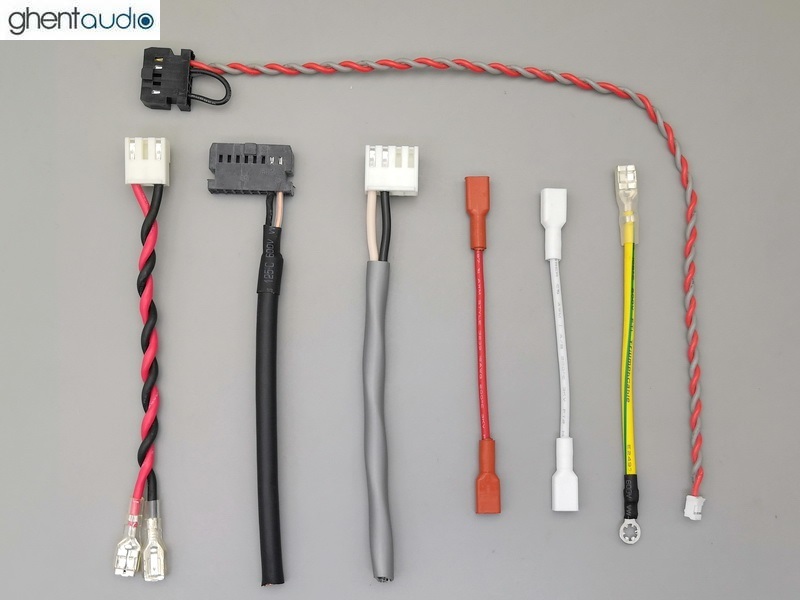

Internal Harness (Free included)

Mains wires: from AC-Inlet to PSU
Signal wires: XLR socket to amp-module
Speak wires: from amp-module to Binding Posts
LED wire: from PSU to LED module

Case Specification

Internal size: 193mm(W) x 58mm(H) x 180mm(D)
External size: 200mm(W) x 78mm(H) x 191mm(D)
(External size including feet, excluding connectors)
Case Finish: Full-Black or Silver-Face with Black body
LED: Blue/Green/Orange/White(Brightness adjustable)

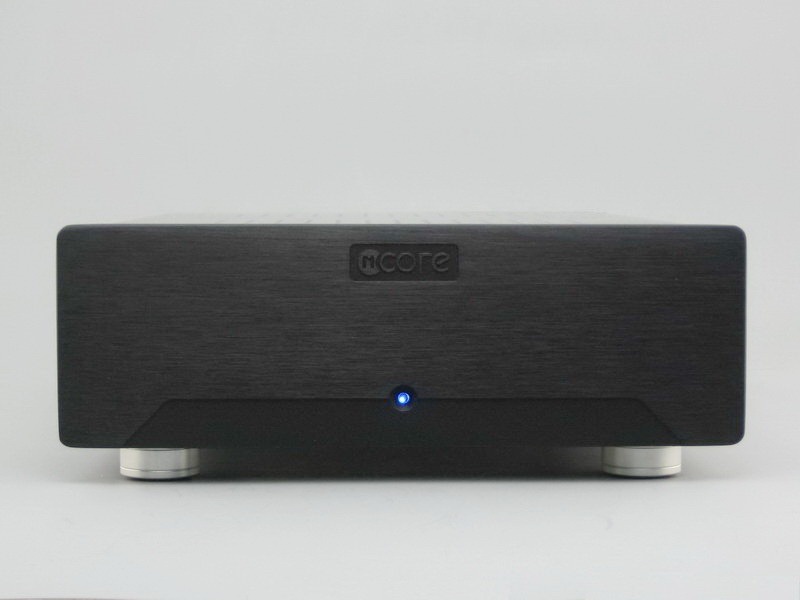

Face-plate: 8mm thickness
Top-cover: 3mm thickness, venting holes or slots
Bottom-plate: 3mm thickness, pre-drilled for modules

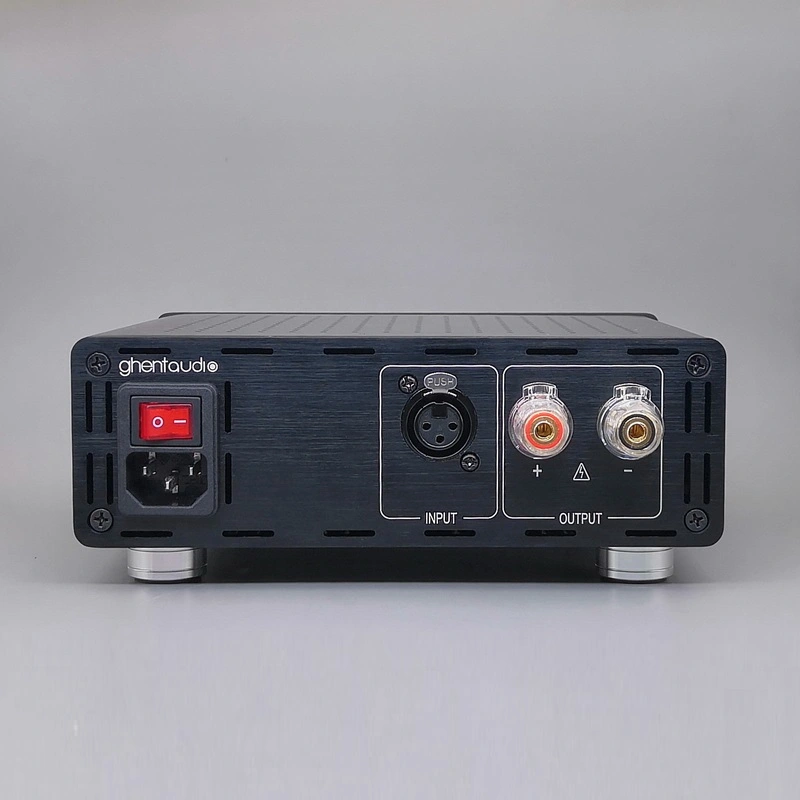

Rear-plate: 3mm thickness, laser imprint text

Packing list (All parts packed in Bulk)

Encloser & Parts	Audio Parts
Front-Plate x 1 Top-Cover x 1 Bottom-Plate x 1 Rear-Plate x 1 Aluminum Foot x 4 Front-support x 2 Screws set	AC-Inlet & Switch x 1 XLR socket x 1 Binding Post(Pair) x 1 Dimmer-LED x 1 Internal Harness
