(B180a-M1) DIY Mono Case-kit for Hypex NC250MP

0.0 (0)
0 Sold
$95.00 $0.00
B-series Mono case-kit, applicable modules are:
( case-kit exclude the following module)
------ NC250MP
------ It's a solderless kit if choosing screw-type XLR :)
------ Custom drilling for other suitable modules
Received successfully
Coupon Code
    Please select the information you want X
  • Face-plate:
  • LED color:
  • XLR Type:
    Please select the information you wantX
  • (B265a-M2) DIY Mono Case-kit for UcD400/UcD700
  • (B180a-M1) DIY Mono Case-kit for Hypex NC250MP
  • (B180a-M1) DIY Mono Case-kit for Hypex NC250MP
  • (B265a-M1) DIY Mono Case-kit for Hypex Ncore NC400
  • (B180a-M1) DIY Mono Case-kit for Hypex NC250MP
  • (B180a-S1) DIY Stereo Case-kit for NC122MP
  • (B180a-S1) DIY Stereo Case-kit for NC122MP
  • (B180a-S1) DIY Stereo Case-kit for NC122MP
  • (B180a-M1) DIY Mono Case-kit for Hypex NC250MP
  • Description
What's the DIY case-kit?
  • Case-kit is NOT amp-kit, excluding AMP or PSU modules
  • Including aluminum encloser, connectors, screws, feet, led and needed internal harness...
  • DIY (do-it-yourself) project: All parts packed in bulk, please assemble to the complete amp case by yourself
  • Easy to assembly 4 parts (face/rear/top/bottom) to a completed case, so no instruction/guides provided
  • Sample assembling by user: Hypex nCore NC252MP (Ghent case Assembly) (by Joseph Tham)

Brief Introduction
  • Part number: B180a-M1 (B-series Encloser)
  • 100% Aluminum, the best thermal material for amp

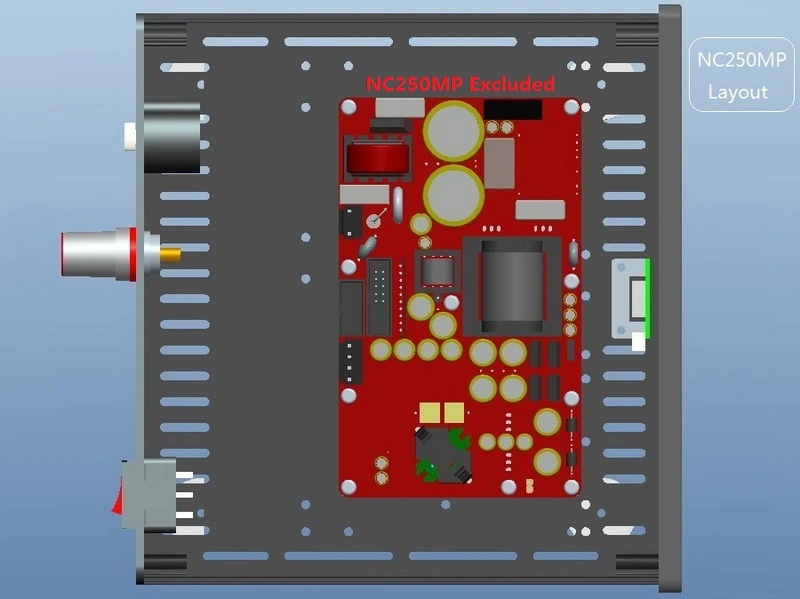

  • Mono(1CH) case pre-drilled for applicable modules (case-kit excluding any modules)
  • Input: we provide two kinds of XLR options:
    ---Soldering: GP110 Gold-plated XLR socket

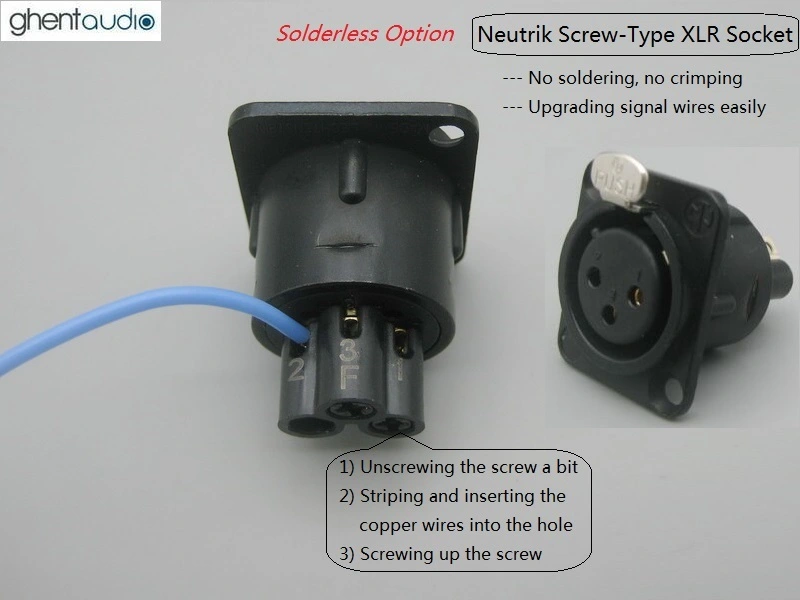

    ---Screw-Type: GP119 Neutrik Gold-plated XLR socket
  • Output: GP100 Gold-plated Binding posts, support soldering or screw-type

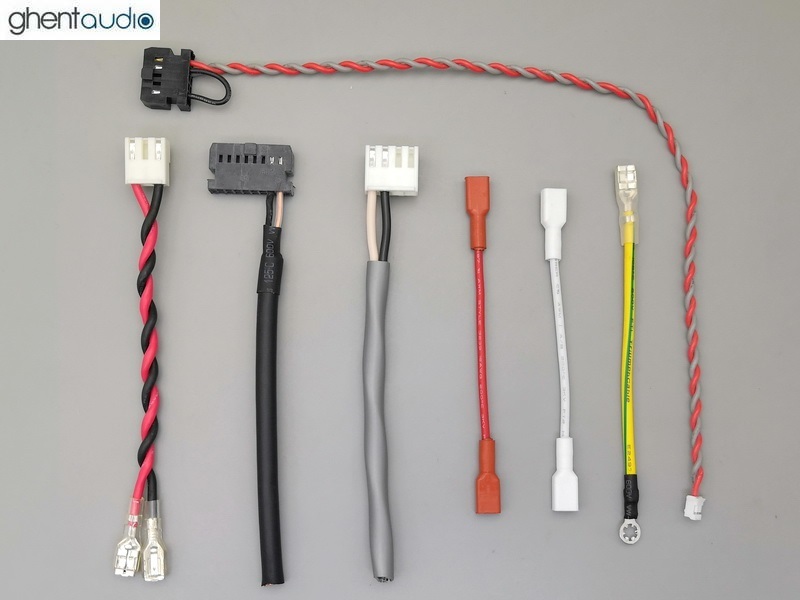

Internal Harness (Free included)
  • Mains wires: from AC-Inlet to PSU
  • Signal wires: XLR socket to amp-module
  • Speak wires: from amp-module to Binding Posts
  • LED wire: from PSU to LED module

Case Specification
  • Internal size: 193mm(W) x 58mm(H) x 180mm(D)
  • External size: 200mm(W) x 78mm(H) x 191mm(D)
    (External size including feet, excluding connectors)

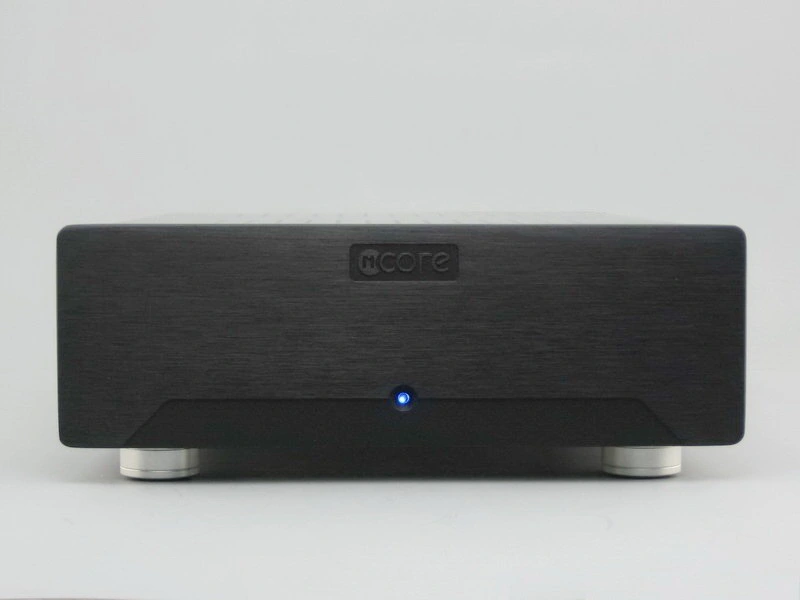

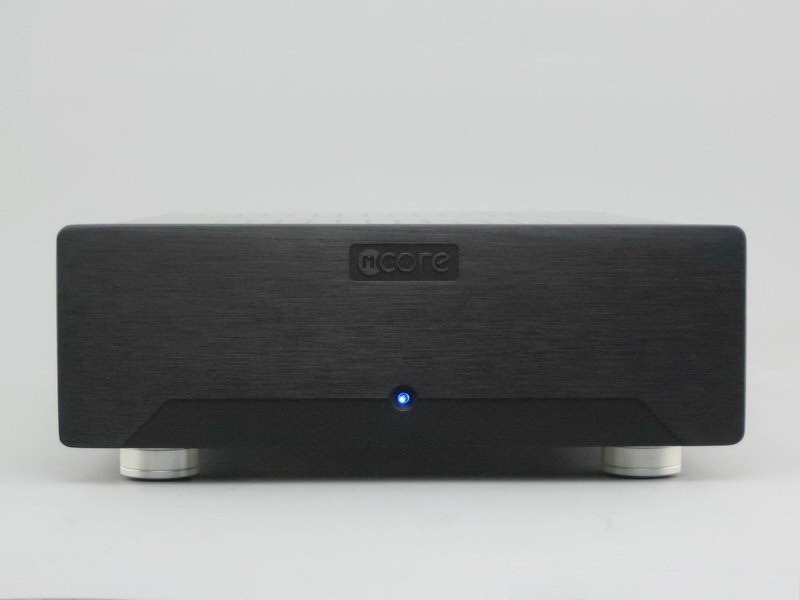

  • Case Finish:  Full-Black or Silver-Face with Black body
  • LED: Blue/Green/Orange/White(Brightness adjustable)
  • Face-plate: 8mm thickness
  • Top-cover: 3mm thickness, venting holes or slots
  • Bottom-plate: 3mm thickness, pre-drilled for modules

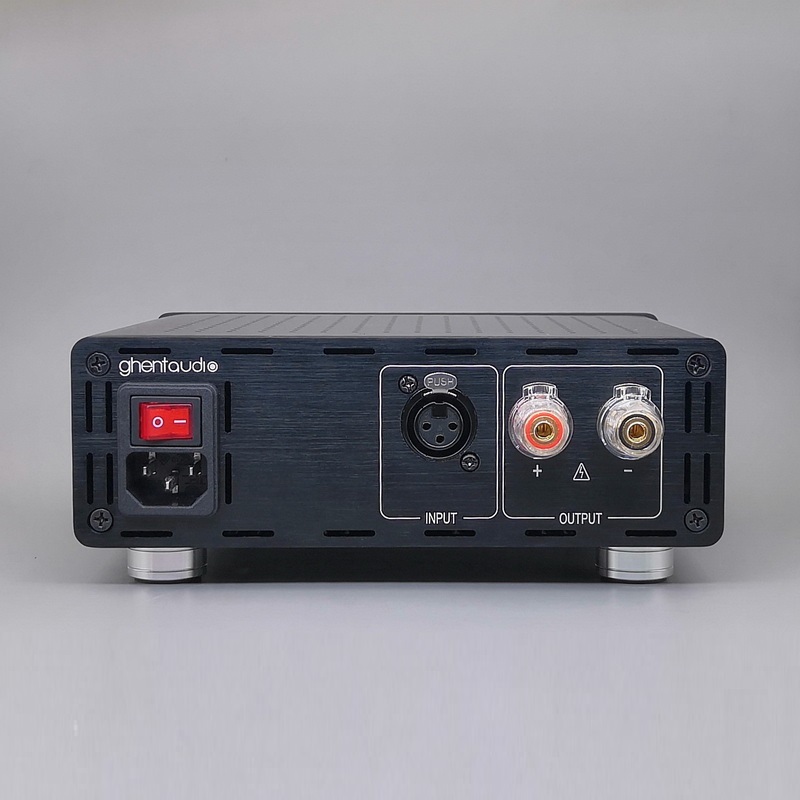

  • Rear-plate: 3mm thickness, laser imprint text

Packing list (All parts packed in Bulk)
Encloser & Parts Audio Parts
Front-Plate x 1
Top-Cover x 1
Bottom-Plate x 1
Rear-Plate x 1
Aluminum Foot x 4
Front-support x 2
Screws set
AC-Inlet & Switch x 1
XLR socket x 1
Binding Post(Pair) x 1
Dimmer-LED x 1
Internal Harness
