(A265-S3) DIY Stereo Case-kit for ICEpower 300AS1+300A1

Name: (A265-S3) DIY Stereo Case-kit for ICEpower 300AS1+300A1
Brand: ghentaudio Do something for HiFi Fans
SKU: A265-S3
Price: 90 USD
Availability: InStock

0.0 (0)

10 Sold

$90.00

A-series Stereo case-kit, applicable modules are: ( case-kit exclude the following module) ------ 300AS1+300A1

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

What's the DIY case-kit?

Case-kit is NOT amp-kit, excluding AMP or PSU modules
Including aluminum encloser, connectors, screws, feet, led and needed internal harness...
DIY (do-it-yourself) project: All parts packed in bulk, please assemble to the complete amp case by yourself
Easy to assembly 4 parts (face/rear/top/bottom) to a completed case, so no instruction/guides provided
Sample assembling by user: Hypex nCore NC252MP (Ghent case Assembly) (by Joseph Tham)

Brief Introduction

Part number: A265-S3 (A-series Encloser)
100% Aluminum, the best thermal material for amp
Stereo(2CH) case pre-drilled for applicable modules (case-kit excluding any modules)

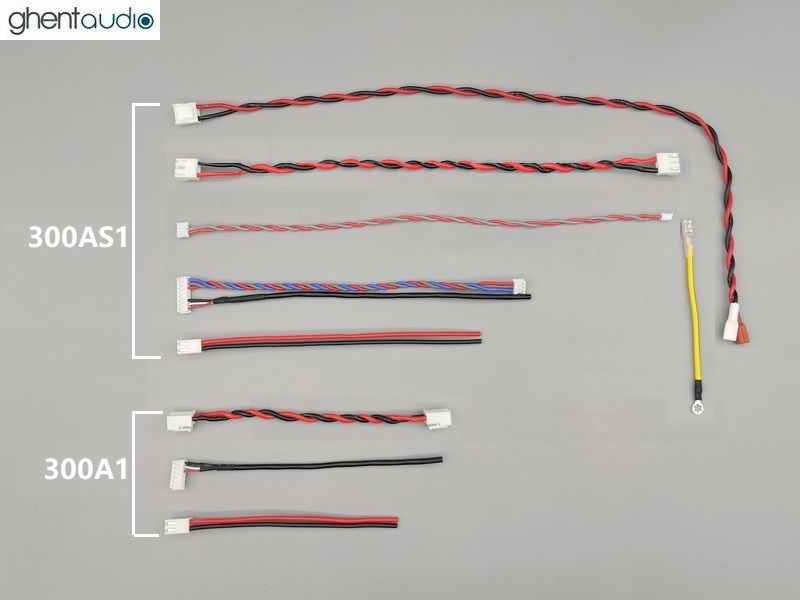

Internal Harness (Free included)

Mains wire-1: from AC-Inlet to Power-Button-Kit
Mains wire-2: from Power-Button-Kit to module
Mains wire-3: from 300AS1 to 300A1
Signal wires: XLR socket to amp-modules(2pcs)
Speak wires: from amp-module to Binding Posts(2pcs)
LED wire: from 300AS1 to LED board
Ground wire: from IEC-inlet to Ground area of Alu case

Case Specification

Internal size: 150mm(W) x 56mm(H) x 265mm(D)
External size: 160mm(W) x 73mm(H) x 276mm(D)
(External size including feet, excluding connectors)
Case Finish: Full-Black or Silver-Face with Black body
LED: Blue
Face-plate: 8mm thickness
Top-cover: 3mm thickness, venting holes or slots
Bottom-plate: 3mm thickness, pre-drilled for modules
Rear-plate: 3mm thickness, laser imprint text

Packing list (All parts packed in Bulk)

Encloser & Parts	Audio Parts
Front-Plate x 1 Top-Cover x 1 Bottom-Plate x 1 Rear-Plate x 1 Aluminum Foot x 4 Screws set	IEC-Inlet x 1 Power-Buton-Kit x 1 XLR socket x 2 Binding Post(Pair) x 2 Internal Harness
