XHP-3 Housing & Contact (3-ways)

Name: XHP-3 Housing & Contact (3-ways)
Brand: ghentaudio Do something for HiFi Fans
SKU: XHP-3
Price: 0.7 USD
Availability: InStock

0.0 (0)

0 Sold

$0.70

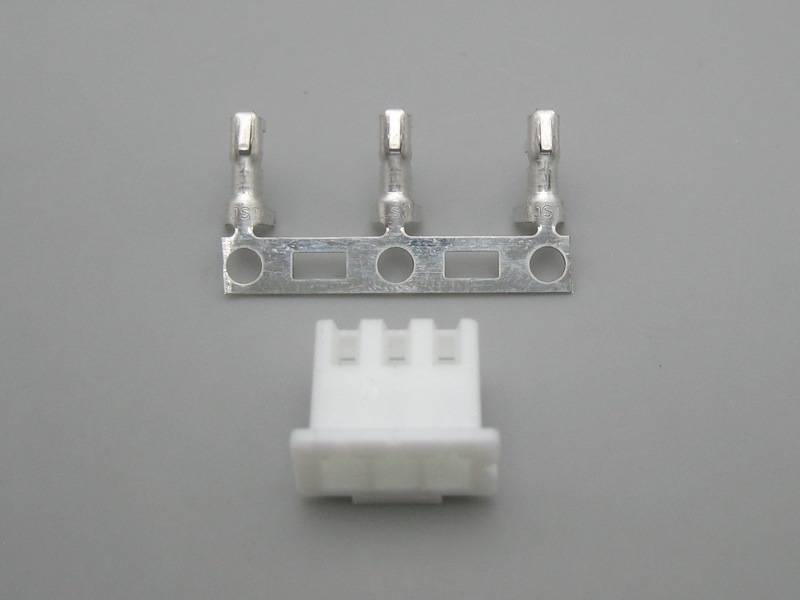

Each set including:
--- 1 x XHP-3 Housing
--- 3 x Crimp Contacts(pins)

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Each set including

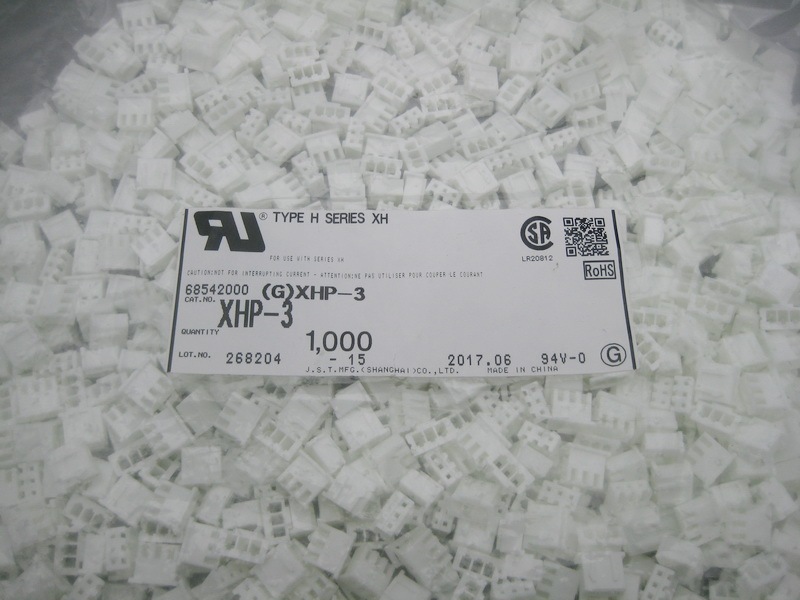

1 x XHP-3 Housing
3 x Crimp contacts(pins)

Features & Specifications

JST: JAPAN SOLDERLESS TERMINALS, The Quality Connection

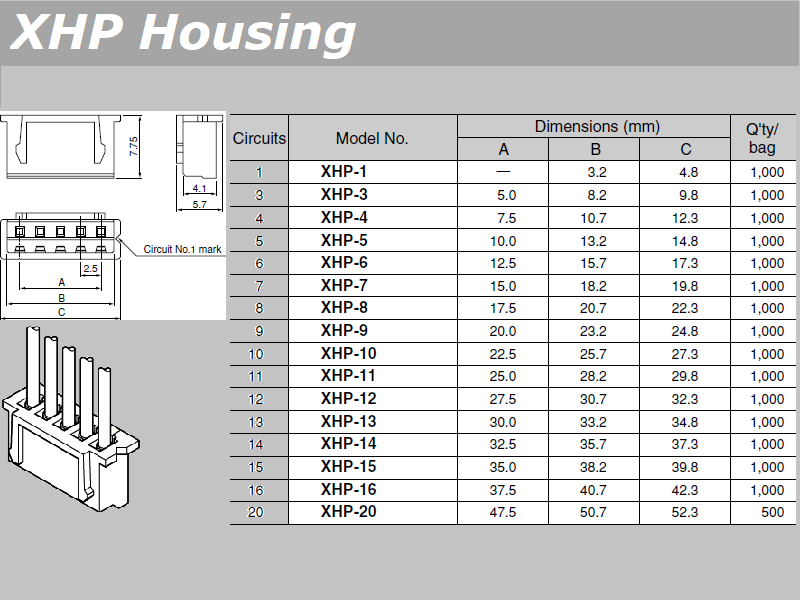

Housing Manufacturer Part No: XHP-3
No. of Ways: 3

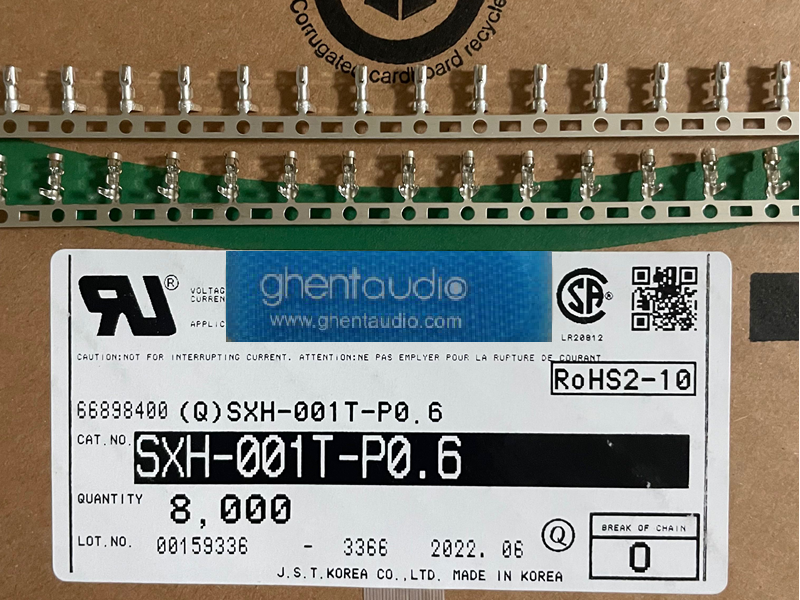

Conatct Manufacturer Part No: SXH-001T-P0.6
2.5mm pitch/Disconnectable Crimp style connector
Pitch Spacing: 2.5mm, Material: Nylon 6.6, Colour: White
Applicable wire: AWG #28 to #22, Crimp style
Contact Plating: Tin, Contact Material: Phosphor Bronze
Current rating: 3A AC, DC (AWG #22), Voltage rating: 250V AC, DC
Temperature range: -25 ̊C to +85 ̊C(including temperature rise in applying electrical current)
Contact resistance: Initial value/ 10m Ω max. After environmental testing/ 20m Ω max.
Insulation resistance: 1,000M ohm min., Withstanding voltage: 800V AC/ minute
