(U22) Type-A to Type-B Cable with DC-Input

SKU:
0.0 (0)
2 Sold
$38.00 $0.00

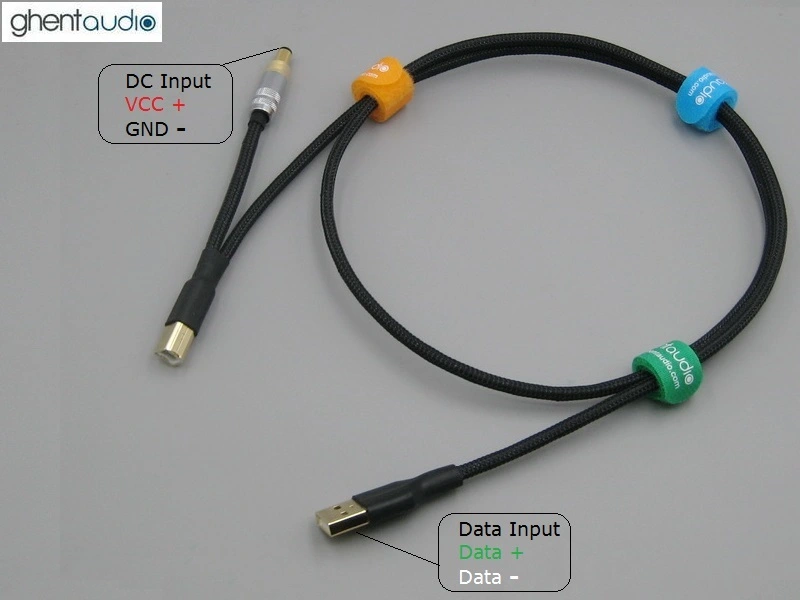

Type-A to Type-B USB 2.0 Cable, with DC-Input(5V/GND) from external PSU
--- Type-B: Full connection of Data+/- and VCC+/GND-
--- Type-A: Data+ and Data- only
--- DC-Input: 5V+ and GND- only
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Cable Length (Type-A to Type-B):

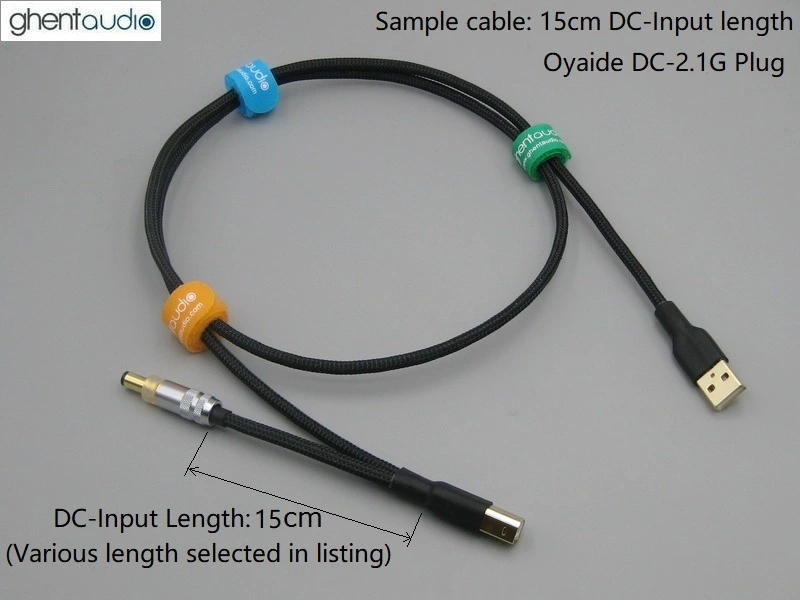

  • DC-Input Length (Type-B to ext PSU):
    Please select the information you wantX
  • DC-Input Connector:
    Please select
    Please select
    Oyaide DC-2.1G (5.5/2.1)[ + $8.00 ]
    Oyaide DC-2.5G (5.5/2.5)[ + $8.00 ]
    GX16-2: P1+; P2-
    GX16-2: P1-; P2+
    GX16-3 (Aurender): P1-; P3+[ + $1.00 ]
    GX16-4 (Farad): P1/P3+; P2/P4-[ + $2.00 ]
    GX16-4 (Plixir): P1/P2-; P3/P4+[ + $2.00 ]
    XLR Female-3P (HDPlex): P1-; P2+[ + $6.00 ]
    XLR Male-3P (KingRex MKII PSU): P1+; P3-[ + $5.00 ]
    XLR Male-4P (Mojo Audio): P1/P2+; P3/P4-[ + $6.00 ]
    XLR Male-4P (Paul Hynes): P1-; P4+[ + $6.00 ]
    Jaeger Male-3P (Paul Hynes): P1-; P2+[ + $15.00 ]
    Weipu SF1210/P4 (Hypsos): P1/P3-; P2/P4+[ + $5.00 ]
    Female 5.5/2.1 DC Input Jack
    Female 5.5/2.5 DC Input Jack
    Hirose Male-4P (Sotm sPS-500): P1/P4 +, P2/P2-[ + $10.00 ]
  • Total extras:$0.00
Quantity:
Add to Favorites (0)
  • (U22) Type-B to [Type-A + DC-Input] splitting USB Y-Cable
  • (U22) Type-B to [Type-A + DC-Input] splitting USB Y-Cable
  • (U22) Type-B to [Type-A + DC-Input] splitting USB Y-Cable
  • (U22) Type-B to [Type-A + DC-Input] splitting USB Y-Cable
  • (U22) Type-B to [Type-A + DC-Input] splitting USB Y-Cable
  • Description
Introduction
  • USB 2.0: Type-A to Type-B USB Cable, with DC-Input(5V/GND) from external PSU
  • Cable length: not only the cable, but also including the size of plugs at both ends
  • Packaging: Single(1pc)

USB Connection

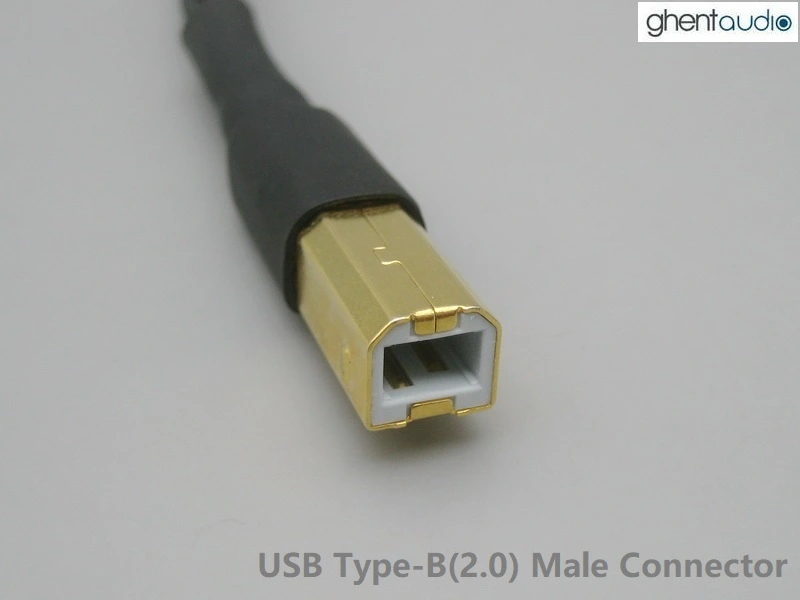

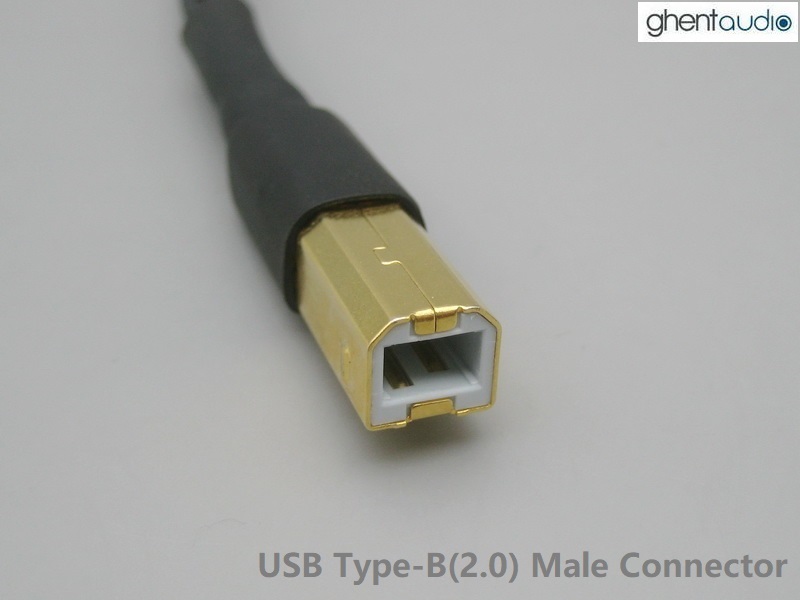

  • Type-B: Full connection of Data+/- and VCC+/GND-

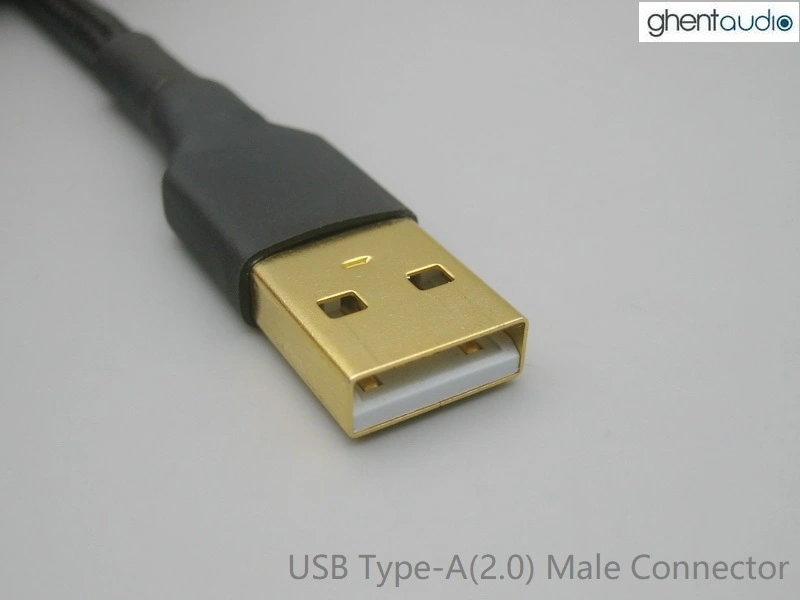

  • Type-A: Data+ and Data- connected only
  • DC-Input: 5V+ and GND- connected only (Please selecte correct DC connector with ideal length for external PSU)

DC-Input Connector (for external PSU)
Please contact your supplier to know the exact connector/pinout, here are some examples for Branded PSU
(Please mail to [email protected] if you have any other custom requirements)
  • HDPlex PSU: XLR Female-3P connector (P1 GND, P2 VCC+)
  • KingRex MKII: XLR Male-3P connector (P1 VCC+, P3 GND)
  • Mojo Audio: XLR Male-4P connector (P1/P2 VCC+, P3/P4 GND)
  • Paul Hynes SR4/SR5: XLR Male-4P connector (P1 GND, P4 VCC+)
  • Paul Hynes SR7: Jaeger Male-3P (P1 GND, P2 VCC+)
  • Teradak PSU: GX16-2 Female connector (P1 GND, P2 VCC+)
  • Aurender PSU: GX16-3 Female connector (P1 GND, P3 VCC+)
  • Farad PSU: GX16-4 Female connector (P1/P3 GND, P2/P4 VCC+)
  • Plixir PSU: GX16-4 Female connector (P1/P2 GND, P3/P4 VCC+)
  • Reddo PSU: GX16-4 Female connector (P1/P2 VCC+, P3/P4 GND)
  • Hypsos PSU: Weipu Male-4P connector (P1/P3 GND, P2/P4 VCC+)
  • Sotm sPS-500: Hirose Male-4P connector (P1/P4 VCC+, P2/P2 GND)
  • ......
(Please mail to [email protected] if you have any other custom requirements)

Order Handling / Custom length
  • Handling time: 3-4 business days, since all cables are handmade carefully
  • Up-Level price policy: for custom length: 0.35m = 0.5m, 1.6m = 2m...
  • Example: Custom 1.2m, then buy 1.5m and write "custom 1.2m length" mail to [email protected]
  • Invoice for custom order: or we could send Paypal invoice for custom order if contacting us in advance

Features & Specifications

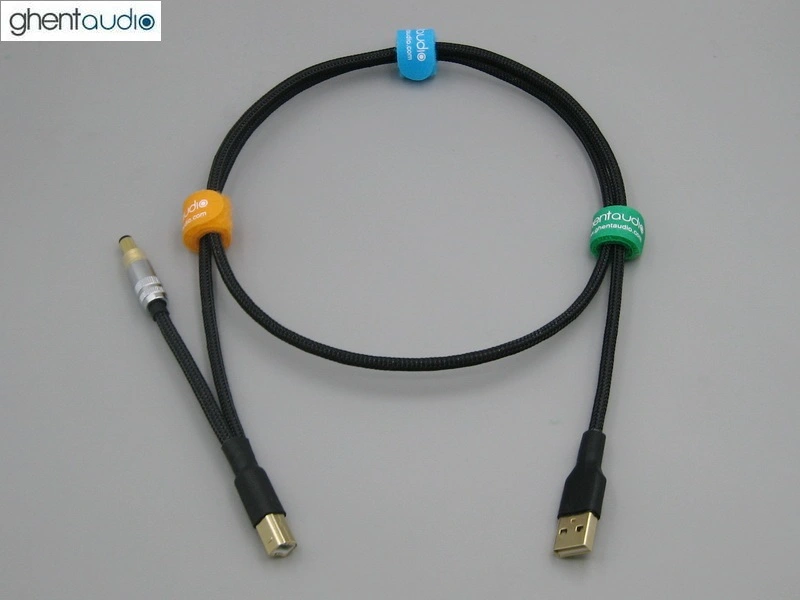

  • (U22) Type-A to Type-B USB Cable with DC-Input(5V/GND), splitting USB Y-cable, single(1pc)
  • 100% handmade craftwork by experienced engineers
  • Cable: Teflon Silver-plated Star Quad, 4 x 24awg, high quality RFI and EMI protection
  • USB Connector: Quality Gold-plated USB Connectors
  • DC-Input: Various quality DC connectors connected to external PSU directly
  • Solder: Lead free, Rosin Core with 3% Silver, 0.5% Copper and Tin
