(PC46) PSU---LP4(5V/GND) Power Cable (JSSG360)

SKU:
0.0 (0)
1 Sold
$22.00 $0.00
PSU --- LP4(5V/GND) Power Supply Cable, two hook-up wires:
--- Gotham OFC Copper 18AWG in PVC Jacket
--- Neotech UP-OCC copper 18AWG in Teflon Insulation
Pre-built JSSG360 dual-shielding, in Black Cotton mesh sleeved
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Hook-up Wire:
  • Length::
    Please select the information you wantX
  • Source Connector (PSU side):
    Please select
    Please select
    Oyaide DC-2.1G (5.5/2.1)[ + $8.00 ]
    Oyaide DC-2.5G (5.5/2.5)[ + $8.00 ]
    GX16-2: P1+; P2-
    GX16-2: P1-; P2+
    GX16-3 (Aurender): P1-; P3+[ + $1.00 ]
    GX16-4 (Farad): P1/P3+; P2/P4-[ + $2.00 ]
    GX16-4 (Plixir): P1/P2-; P3/P4+[ + $2.00 ]
    XLR Female-3P (HDPlex): P1-; P2+[ + $6.00 ]
    XLR Male-3P (KingRex MKII PSU): P1+; P3-[ + $5.00 ]
    XLR Male-4P (Mojo Audio): P1/P2+; P3/P4-[ + $6.00 ]
    XLR Male-4P (Paul Hynes): P1-; P4+[ + $6.00 ]
    Jaeger Male-3P (Paul Hynes): P1-; P2+[ + $15.00 ]
    Weipu SF1210/P4 (Hypsos): P1/P3-; P2/P4+[ + $6.00 ]
    Female 5.5/2.1 DC Input Jack
    Female 5.5/2.5 DC Input Jack
    Hirose Male-4P (Sotm sPS-500): P1/P4 +, P2/P2-[ + $10.00 ]
  • Total extras:$0.00
Quantity:
  • (PC46) PSU---LP4(5V/GND) Power Cable (JSSG360)
  • (PC46) PSU---LP4(5V/GND) Power Supply Cable (JSSG360)
  • Description
Introduction

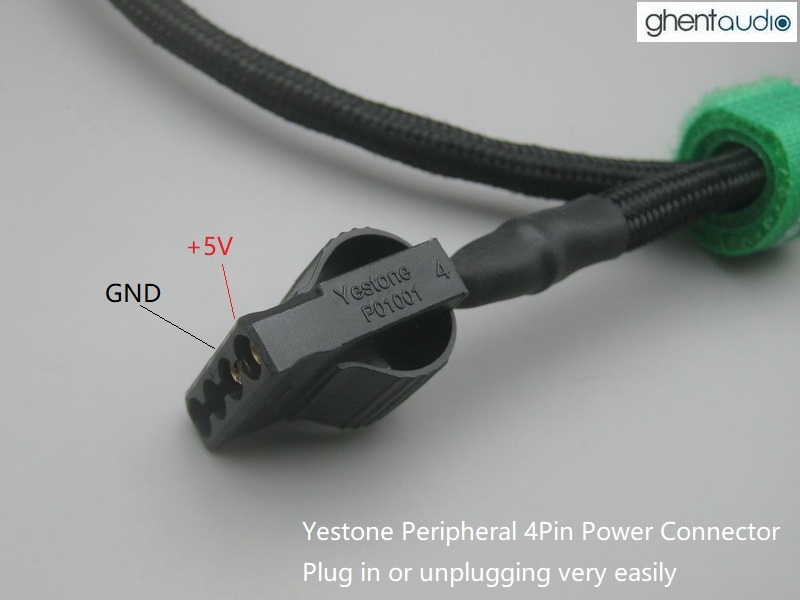

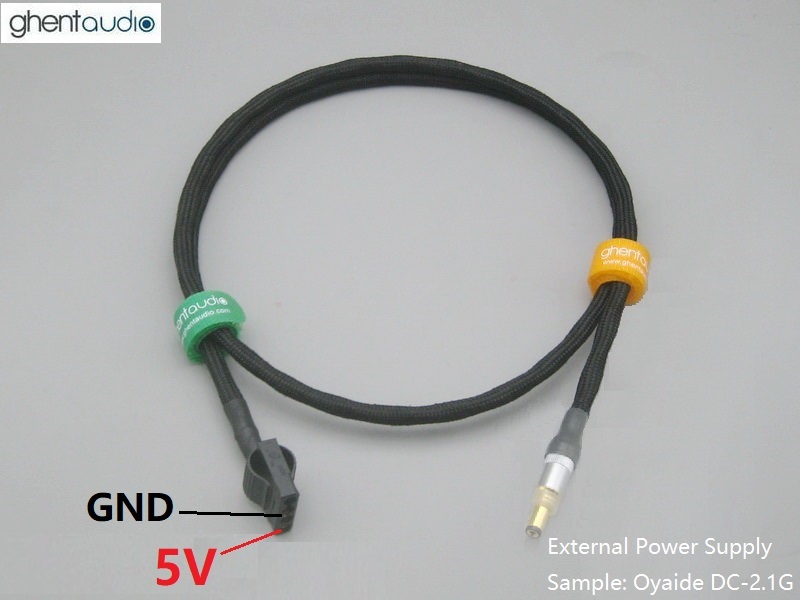

  • PSU --- LP4(5V/GND): 2 wires interconnect cable, external PSU supply 5V/GND to destination devices
  • Cable Length: Including the length of connectors at two ends
  • JSSG360: Two layers of copper shield mesh to protect cable from the complicated EMI(Black sleeved)

Source Connector (PSU side) for selection
Please contact your supplier to know the exact connector/pinout, here are some examples for Branded PSU
(Please mail to [email protected] if you have any other custom requirements)
  • HDPlex PSU: XLR Female-3P connector (P1 GND, P2 VCC+)
  • KingRex MKII: XLR Male-3P connector (P1 VCC+, P3 GND)
  • Mojo Audio: XLR Male-4P connector (P1/P2 VCC+, P3/P4 GND)
  • Paul Hynes SR4/SR5: XLR Male-4P connector (P1 GND, P4 VCC+)
  • Paul Hynes SR7: Jaeger Male-3P (P1 GND, P2 VCC+)
  • Teradak PSU: GX16-2 Female connector (P1 GND, P2 VCC+)
  • Aurender PSU: GX16-3 Female connector (P1 GND, P3 VCC+)
  • Farad PSU: GX16-4 Female connector (P1/P3 GND, P2/P4 VCC+)
  • Plixir PSU: GX16-4 Female connector (P1/P2 GND, P3/P4 VCC+)
  • Reddo PSU: GX16-4 Female connector (P1/P2 VCC+, P3/P4 GND)
  • Hypsos PSU: Weipu Male-4P connector (P1/P3 GND, P2/P4 VCC+)
  • Sotm sPS-500: Hirose Male-4P connector (P1/P4 VCC+, P2/P2 GND)
  • ......
(Please mail to [email protected] if you have any other custom requirements)

Hook-up wires
  • Gotham OFC 18AWG: Stranded Copper 7x 0.388 (0.823 mm²), 18AWG in PVC Jacket, Highest OFC copper in all Gotham Cables
  • Neotech UP-OCC 18AWG: Stranded Copper 19x0.25 (0.932 mm²), 18AWG in Teflon Insulation, 7N (99.99998%) Purity Copper wire

Order Handling / Custom Length
  • Handing time: 3-4 business days, since all cables are handmade carefully, thanks your patience
  • Up-Level price policy for custom length: 0.35m = 0.5m, 1.2m = 1.5m, ...
  • Welcome any other questions, please mail to [email protected] to contact us
