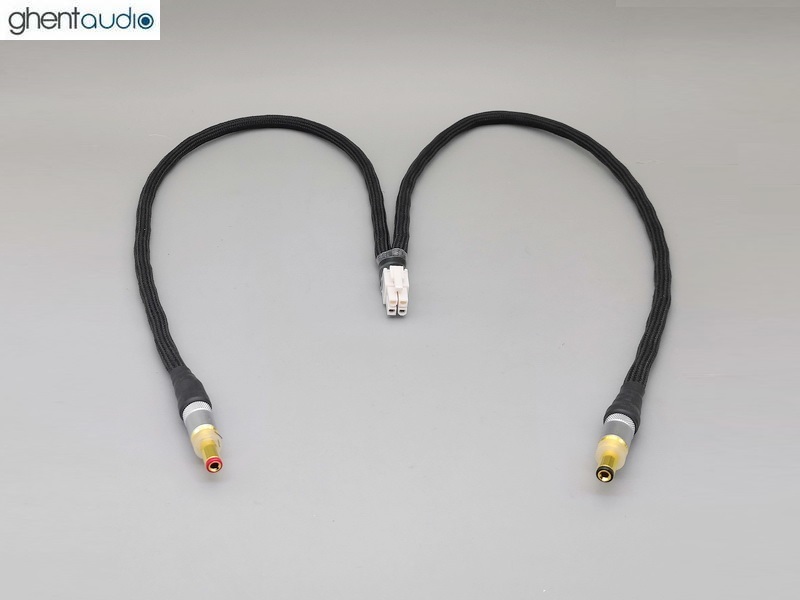

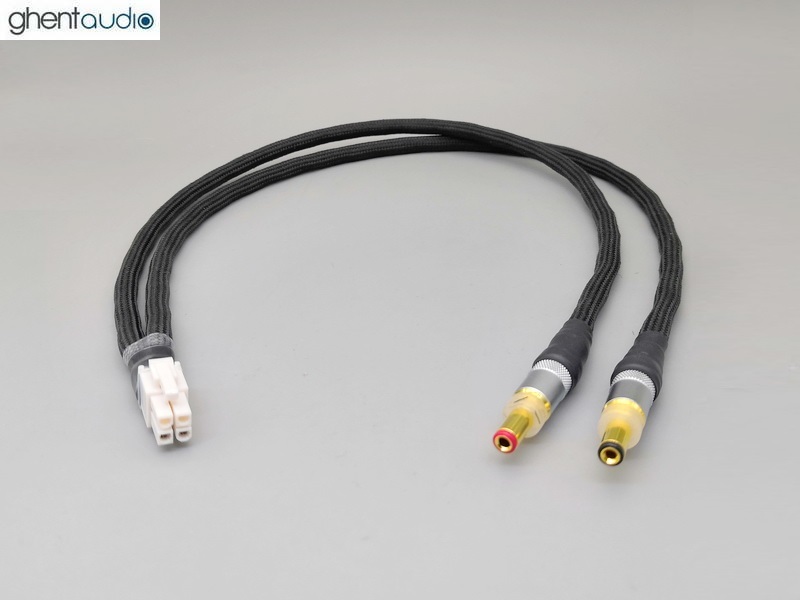

(PC401Y-5V) Molex-4P(5V) to DC outputs power Y-cable

Name: (PC401Y-5V) Molex-4P(5V) to DC outputs power Y-cable
Brand: ghentaudio Do something for HiFi Fans
SKU: PC401Y-5V
Price: 54 USD
Availability: InStock

0.0 (0)

3 Sold

$54.00

Molex-4P(5V only) to 2 x DC outputs power Y-cable, for example:
--- Oyaide DC-2.1G(5.5/2.1) for JCAT USB Card XE EVO
--- Oyaide DC-2.5G(5.5/2.5) for JCAT Master OCXO Clock
Applicable for:
--- Taiko Audio 500W DC-ATX
--- HDPLEX 300W HiFi DC-ATX
--- HDPLEX 400W HiFi DC-ATX (V1.0 version)
--- HDPLEX 500W GaN AIO ATX Power Supply
--- HDPLEX 250W GaN AIO ATX Power Supply

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Hook-up Wire:
DC connectors:
Length:

Quantity:

Add to Favorites (0)

1/1

Description

Introduction

Molex-4P(5V/GND) --- 2 x DC outputs y-cable: 2 wires from Molex-4P, only output 5V/GND to DC connectors
Cable Length: Including the length of connectors at two ends
JSSG360(Option): Two layers of copper shield mesh to protect cable from the complicated EMI(Black sleeved)

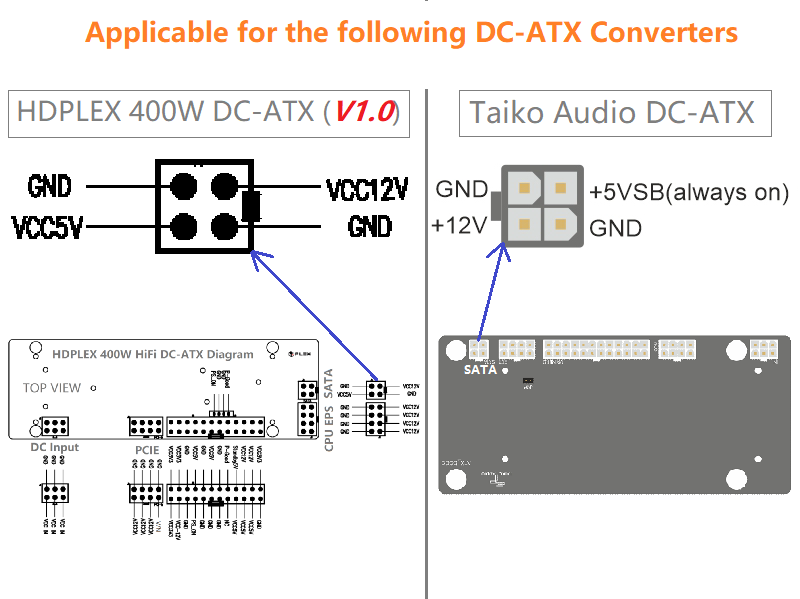

Applicable for

Taiko Audio: DC 500W DC-ATX converter
HDPLEX: 300W HiFi DC-ATX converter
HDPLEX: 400W HiFi DC-ATX converter (V1.0)
HDPLEX: 500W HiFi DC-ATX converter
HDPLEX: 250W GaN Passive AIO ATX Power Supply
Other DC-ATX with the same Molex-4P(pinout)

Hook-up wires

Gotham OFC 18AWG: Gotham GAC-HW18, Stranded Copper 7x 0.388 (0.823 mm²), 18AWG in PVC Jacket, Highest OFC copper in all Gotham Cables
Neotech UP-OCC 18AWG: Neotech STDCT-18, Stranded Copper 19x0.25 (0.932 mm²), 18AWG in Teflon Insulation, 7N (99.99998%) Purity Copper wire
Mundorf Angelique 15AWG: Mundorf ACS115, Stranded Copper 30 x 0.25mm (1.5 mm²), 15AWG in PVC Insulation

Order Handling / Custom Length

Handing time: 3-4 business days, since all cables are handmade carefully, thanks your patience
Up-Level price policy for custom length: 0.35m = 0.5m, 1.2m = 1.5m, ...
Welcome any other questions, please mail to ghentxu@ghentaudio.com to contact us
