molex 43025-1200 Micro-Fit 3.0™ Housing & Contact

SKU:
0.0 (0)
4 Sold
$2.30 $0.00

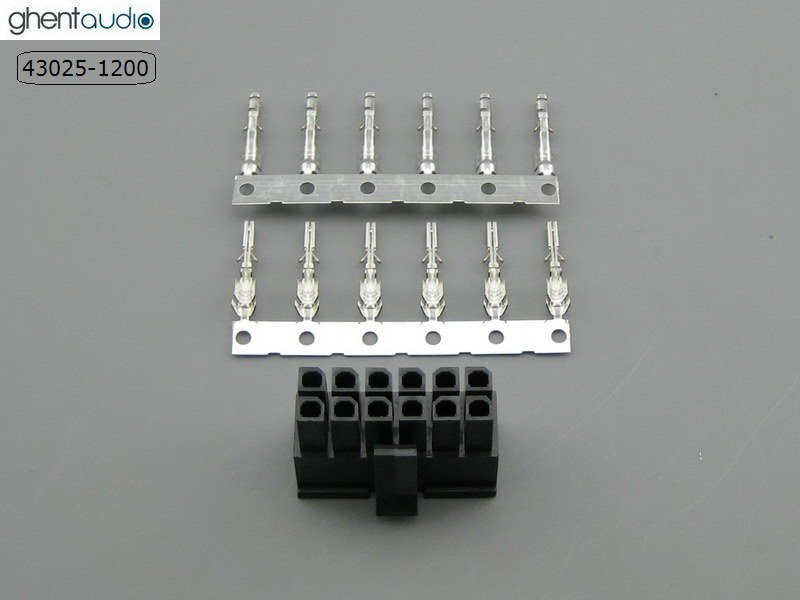

Each set including:
--- 1 x 43025-1200 Housing
--- 12 x Crimp Contacts(pins)
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
  • molex 43025-1200 Micro-Fit 3.0™ Housing & Contact
  • molex 43025-0200 Micro-Fit 3.0™ Housing & Contact
  • molex 43025-1200 Micro-Fit 3.0™ Housing & Contact
  • molex 43025-0200 Micro-Fit 3.0™ Housing & Contact
1/1
  • molex 43025-1200 Micro-Fit 3.0™ Housing & Contact
  • molex 43025-0200 Micro-Fit 3.0™ Housing & Contact
  • Description
molex: a leading provider of electronic components and solutions

Each set including
  • 1 x 43025-1200 Housing
  • 12 x Crimp contacts(pins)

Features & Specifications
Housing Manufacturer Part No: 43025-1200

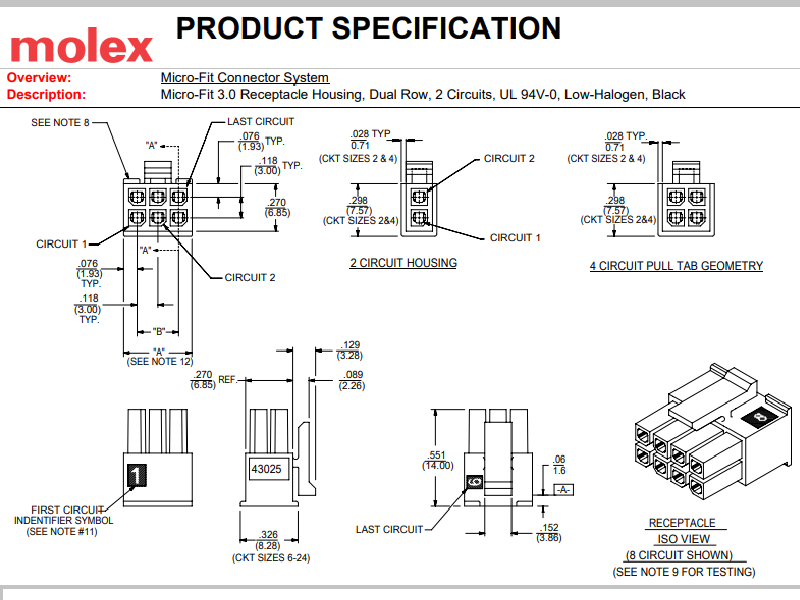

  • Micro-Fit 3.0™ Receptacle Housing, Dual Row, Halogen Free
  • 12 Circuits (maximum), 2 Row, Black color, Flammability 94V-0, Gender Female, Lock to Mating Part: Yes
  • Nylon Material, 3.0mm Pitch, Temperature Range -40°C to +105°C, Maximum Current per Contact 5.0A
  • Mates With: 43020 Micro-Fit 3.0™ Plug Housings, 43045 Micro-Fit 3.0™ Headers, 44242 Micro-Fit 3.0™ Test Plug
  • Use With: 43030 , 45773 Micro-Fit 3.0™ Female Crimp Terminals, 46235 Micro-Fit RMF™ Female Crimp Terminals

Crimp Terminal Part No: 43030-0001
  • Micro-Fit 3.0™ Crimp Terminal, Female, 20-24 AWG, Reel
  • Designed for Power Application, Phosphor Bronze material, Tin Plating Mating
  • Crimp or Compression, Wire Insulation Diameter 1.85mm max.
  • Wire Size AWG 20/ 22/ 24, Maximum Current per Contact 5.0A
