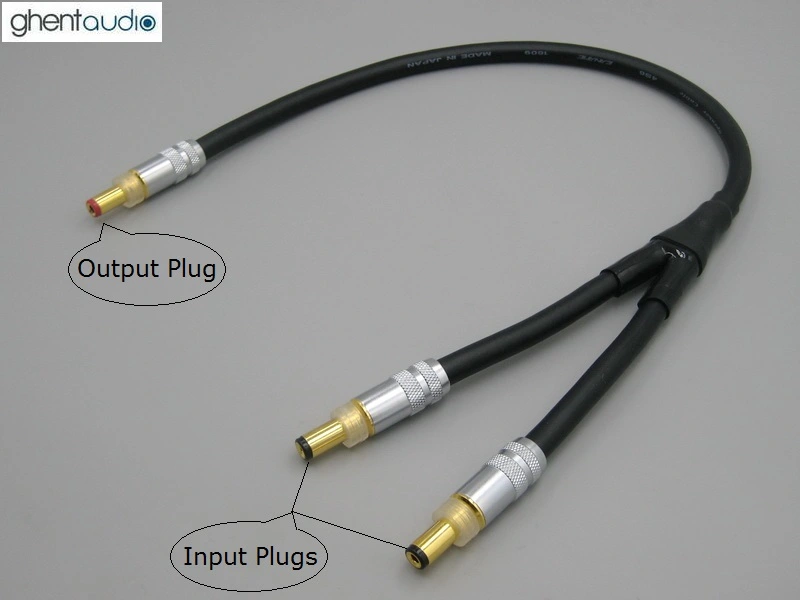

Breif about DC Series-Mode Y-Cable
- This cable is designed only for "Series-Mode" purpose, same way as Series batteries to get higher DC voltage

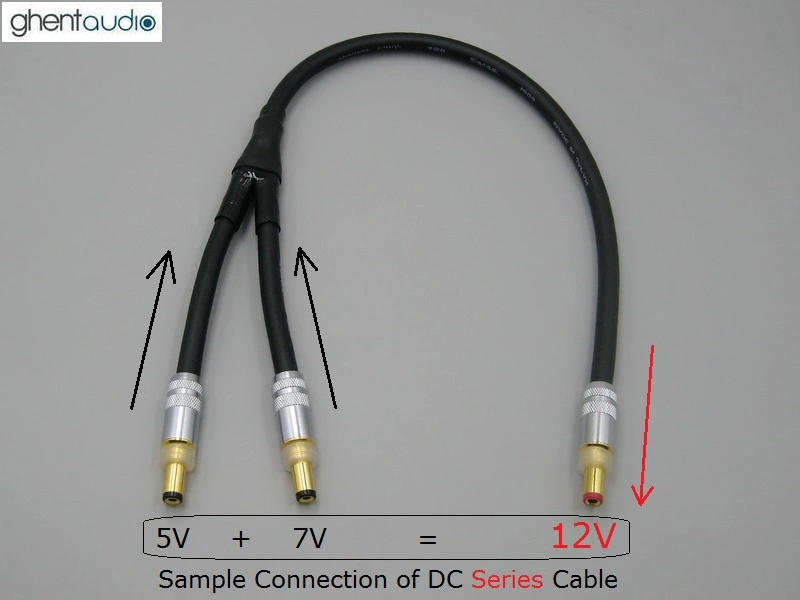

- Sample connection: 3V + 5V = 8V, or 5V + 7V = 12V, or 12V + 12V = 24V......
- Please don't use this "Series-Mode" DC cable as normal DC Y-Cable
- We are not responsible for any misuse of this "Series-Mode" DC Y-Cable
Introduction
- Cable length: not only the cable, but also including the size of plugs at both ends
- Source/Destination: Please choose suitable connector for Source power supplys, and Destination devices
- Non-Directional: This cable is non-directional cable. "Source/destination" is just more simple to identify connectors
Order Handling / Custom length
- Handling time: 4-5 business days, since all cables are handmade carefully
- Up-Level price policy: for custom length: 0.35m = 0.5m, 1.6m = 2m...
- Example: Custom 1.2m, then buy 1.5m and write "custom 1.2m length" mail to [email protected]
- Invoice for custom order: or we could send Paypal invoice for custom order if contacting us in advance
Features & Specifications
- Canare 4S6G OFC Star Quad Audio-grade DC Y-cable
- Also providing Neotech/Gotham/Mundorf hook-up wires for custom purpose
- 100% handmade craftwork by experienced engineers
- Cable: Canare 4S6G OFC Star Quad, OD 6.4mm, 4 OFC conductors x 20AWG/cond
- Connector: Japan Oyaide gold-plated DC plugs(made in Japan) or other quality connectors
- Solder: Lead free, Rosin Core with 3% Silver, 0.5% Copper and Tin
