Home > Encloser Parts for C series > (CR1-BP4-1) 4CH Rear-plate for C-series
  • (CR1-BP4-1) 4CH Rear-plate for C-series
1/1
  • (CR1-BP4-1) 4CH Rear-plate for C-series
Share:

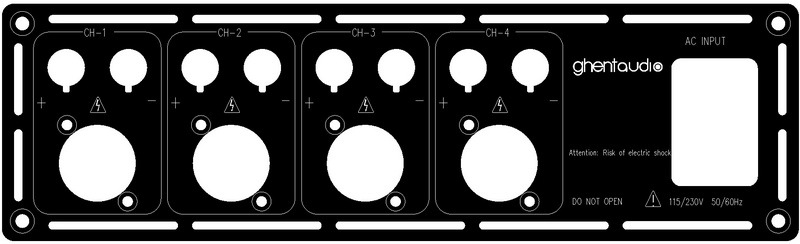

(CR1-BP4-1) 4CH Rear-plate for C-series

SKU:
0.0 (0)
0 Sold
$30.00 $0.00
Applicable Encloser: C-series 250mm(W) x 75mm(H)
Type: 4CH
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
Add to Favorites (0)
  • (CR1-BP4-1) 4CH Rear-plate for C-series
  • (CR1-BP4-1) 4CH Rear-plate for C-series
1/1
  • (CR1-BP4-1) 4CH Rear-plate for C-series
  • Description
Applicable Encloser: C-series 250mm(W) x 75mm(H)


Brief & Features
  • Standard 4CH mode
  • AC-Entry located on the right side
  • D-shape housing (XLR / RCA / 6.35...) as signal input
  • Binding posts output
  • Color: Black
  • Size: 250mm(W) x 75mm(H) x 3mm(D)

    Cut-out for connectors
    • Input(XLR): Φ24mm (Any standard D-housing socket is applicable)
    • Output(Binding Post): Φ11.5mm
    • AC-Entry: 40x27mm (for JEC JR-101-1FSA)

    Packing List
    • Rear-plate: 1pc
