3398-16: Oyaide UL-3398 Style 16AWG hookup wire (102 SSC conductor)

Name: 3398-16: Oyaide UL-3398 Style 16AWG hookup wire (102 SSC conductor)
Brand: ghentaudio Do something for HiFi Fans
SKU: 3398-16
Price: 9.8 USD
Availability: InStock

0.0 (0)

0 Sold

$9.80

Oyaide UL-3398 style, 16AWG (1.25 mm²) wire (1m)
For audio equipment with excellent heat & voltage resistance
Based on precision conductor "102 SSC" and "XLPE" insulation
Color: White / Black

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

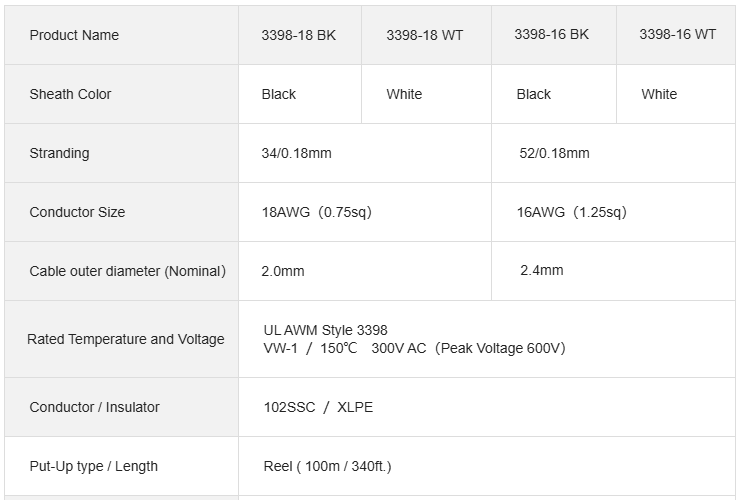

Description

Price: sold by per meter

Gauge: 16 AWG (1.25 mm²)
Conductor: 102 SSC stranded Copper, 52 x 0.18mm
Insulation: XLPE(cross-linked polyethylene)
Rated Temp/voltage: VW-1/150℃ 300VA(Peak Voltage 600V)
Outer diameter: 2.4 mm
Color: White / Black

"102 SSC" - Oyaide Electric Precision Conductor

To avoid impurities as much as possible, only virgin copper that does not contain any recycled copper is used in accordance with JIS C1011.
Peeling process is applied to remove 100% of impurities attached to the surface.
In order to facilitate the flow of electrical signals through the surface layer of the conductor, the strand is made finer using a natural diamond die to improve the surface smoothness of the strand.
The stranded wire is processed with a processing accuracy of ±1μm, far exceeding the standard error tolerance of ±8μm.
Two annealing processes are used to eliminate mechanical stress distortions in the strands.
Thorough product control of manufacturing control values, maintenance, shipping days, etc. Achieved the highest conductivity of 102.3% IACS.

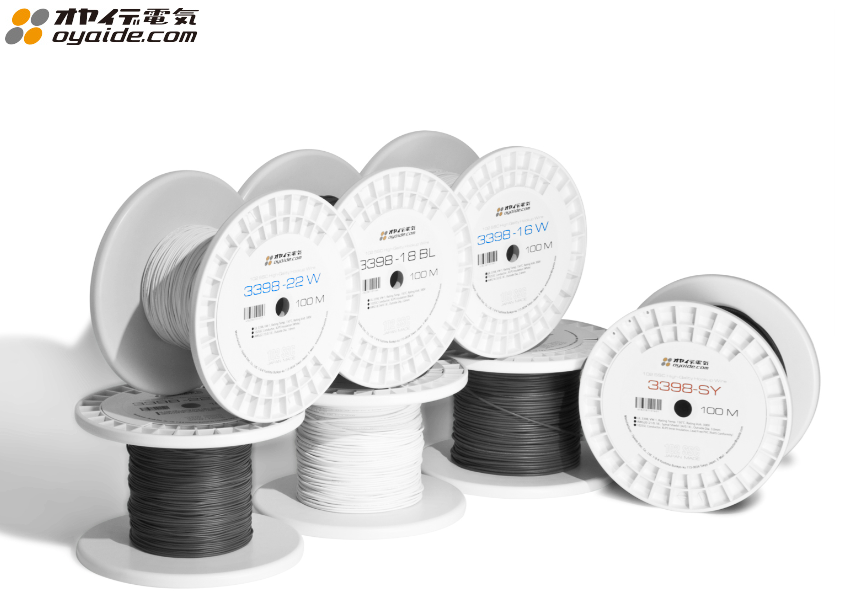

Features of the 3398 Series

The "3398 Series" of internal hookup wires for audio equipment uses the precision conductor "102SSC".
Complies with the U.S. UL Standard AWM Style 3398 (except 3398-SY).
Oyaide Electric's original "102SSC" precision conductor for audio applications is used.
XLPE (cross-linked polyethylene), whose molecular structure has been reinforced by electron beam irradiation, is used as the insulator.
XLPE has high heat resistance (rated 150°C), high withstand voltage (rated 300 V, peak voltage 600 V), and is not easily melted by soldering heat.
The 3398-SY has a spiral shield consisting of 34 strands, eliminating gaps between strands and providing excellent shielding effect. PVC is used for the outer sheath to ensure excellent flexibility.
All 3398 wires are compliant with RoHS2 .
