1331-BK: Anderson Power 1331-BK Silver-plated AWG16-12 Contact (30A)

Name: 1331-BK: Anderson Power 1331-BK Silver-plated AWG16-12 Contact (30A)
Brand: ghentaudio Do something for HiFi Fans
SKU: 1331-BK
Price: 0.29 USD
Availability: InStock

0.0 (0)

0 Sold

$0.29

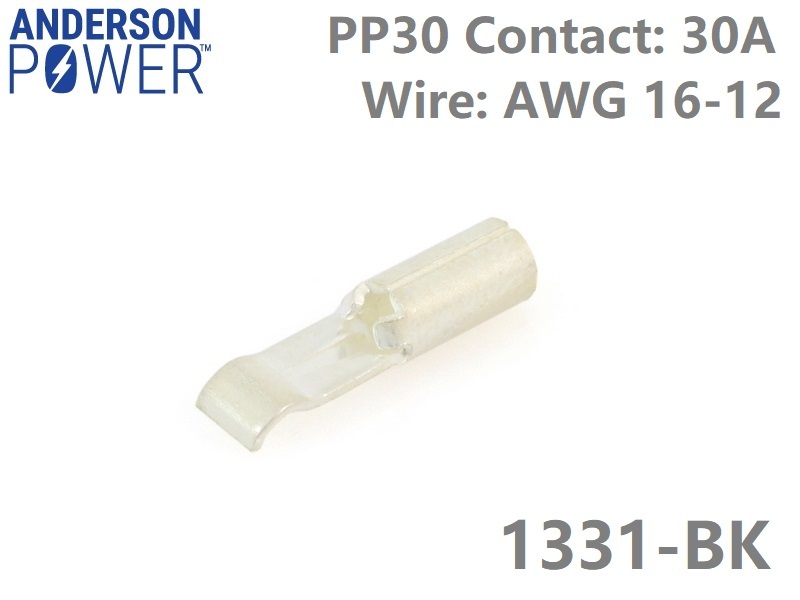

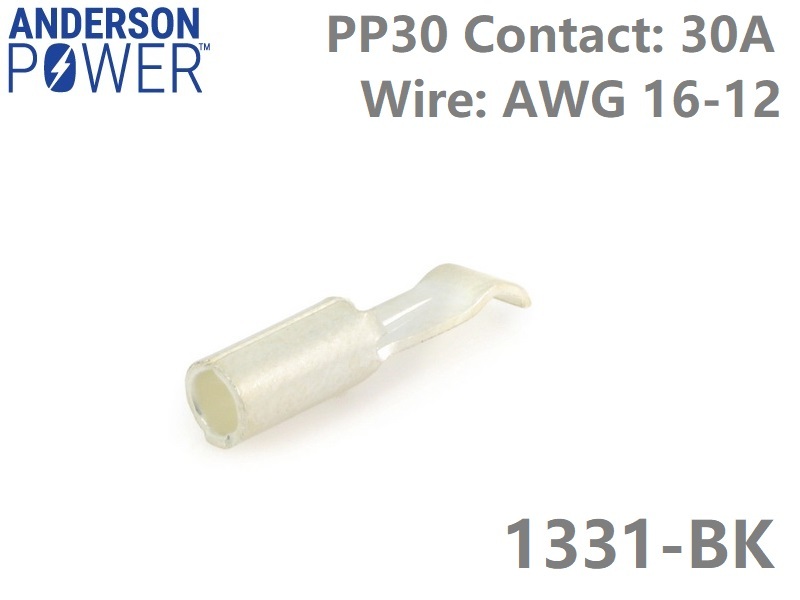

Anderson Power 1331-BK Silver-plated Contact (30A)
Wire Range: AWG #16 --- #12
Amp Rating: 30A

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Anderson PP15/45 series are the smallest Powerpole® housings.
They can be used for wire-to-wire or wire-to-board applications.
Wire sizes from 20 to 10 AWG (0.75 to 6 mm²)
Offer power capabilities up to 55 amps per pole.

Features & Specifications

Series: Powerpole® 15/45
Component Type: Silver-plated Contact
Wire Range: AWG #16 --- #12
Voltage Rating: 600 V
Current Rating: 30A
Each Powerpole® module is a genderless, single-pole connector half
Can be stacked or blocked in-line using dovetails
This versatile connector series invented by Anderson Power (AP®) meets a wide range of power connection needs
There are four basic housing sizes in the Powerpole® product family that allow specific amperage or wire size needs to be filled in the most compact footprint
The Powerpole® connector combines high quality materials and cost-effective innovative design to allow powerful versatility
Powerpole® connectors can be stacked or used inline
15, 30, and 45 amp sizes use the same housings, but different contacts
For a complete system, order one contact with each housing
One housing plug comes with a latch to mate with the other housing plug for a locked connection
Place a spacer key in an empty contact slot and secure assembly with a retaining pin
