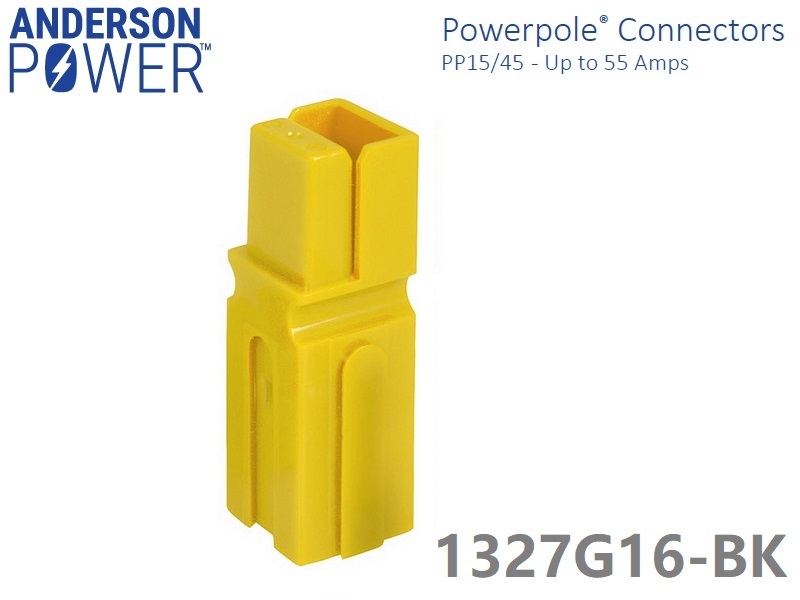

1327G16-BK: Anderson 1327G16-BK PP15/45 Powerpole Housing (Yellow)

SKU:
0.0 (0)
0 Sold
$0.38 $0.00
Anderson PP15/45 Power Products
Part number: 1327G16-BK, in Yellow color
1 Position Blade Type Power Housing Connector
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
  • 1327G16-BK: Anderson 1327G16-BK PP14/45 Powerpole Housing (Yellow)
  • 1327G16-BK: Anderson 1327G16-BK PP14/45 Powerpole Housing (Yellow)
1/1
  • 1327G16-BK: Anderson 1327G16-BK PP14/45 Powerpole Housing (Yellow)
  • Description
Anderson PP15/45 series are the smallest Powerpole® housings.
They can be used for wire-to-wire or wire-to-board applications.

Wire sizes from 20 to 10 AWG (0.75 to 6 mm²)
Offer power capabilities up to 55 amps per pole.


Features & Specifications
  • Series: Powerpole® 15/45
  • Color: Yellow
  • Connector Type: Non-Gendered, Self Mating
  • Contact Type: Non-Gendered
  • Number of Positions: 1
  • Number of Rows: 1
  • Mounting Type: Free Hanging (In-Line)
  • Contact Termination: Crimp
  • Features: Stackable
  • Fastening Type: Spring Retention
  • Note: Contacts Not Included
  • Voltage Rating: 600 V
  • Current Rating: 55 A
  • Material - Insulation: Polycarbonate (PC)
  • Operating Temperature: -20°C to 105°C
