PHR-9 Housing & Contact (9-ways)

SKU:
0.0 (0)
0 Sold
$0.80 $0.00

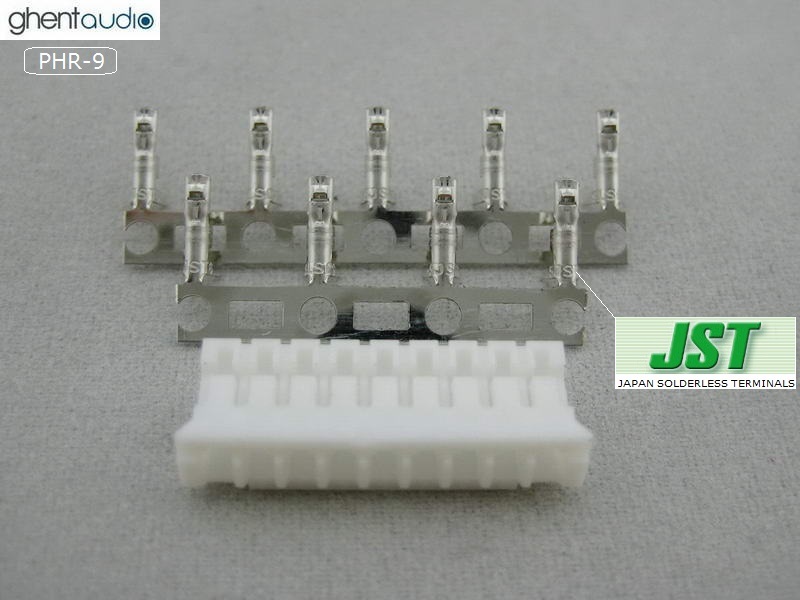

Each set including:
--- 1 x PHR-9 Housing
--- 9 x Crimp Contacts(pins)
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
  • PHR-9 Housing & Contact (9-ways)
  • PHR-7 Housing & Contact (7-ways)
  • PHR-8 Housing & Contact (8-ways)
  • PHR-9 Housing & Contact (9-ways)
  • Description
Each set including
  • 1 x PHR-9 Housing
  • 9 x Crimp contacts(pins)

Features & Specifications
  • JST: JAPAN SOLDERLESS TERMINALS, The Quality Connection

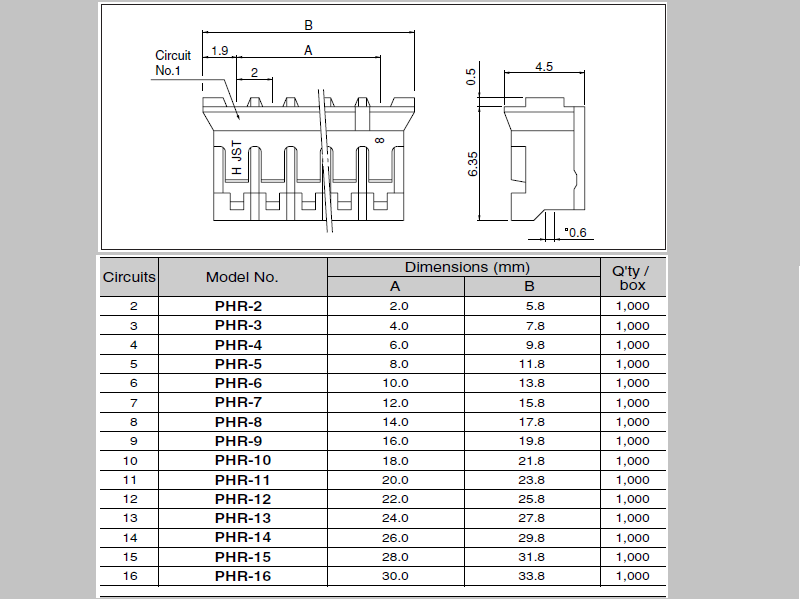

  • Housing Manufacturer Part No: PHR-9
  • No. of Ways: 9

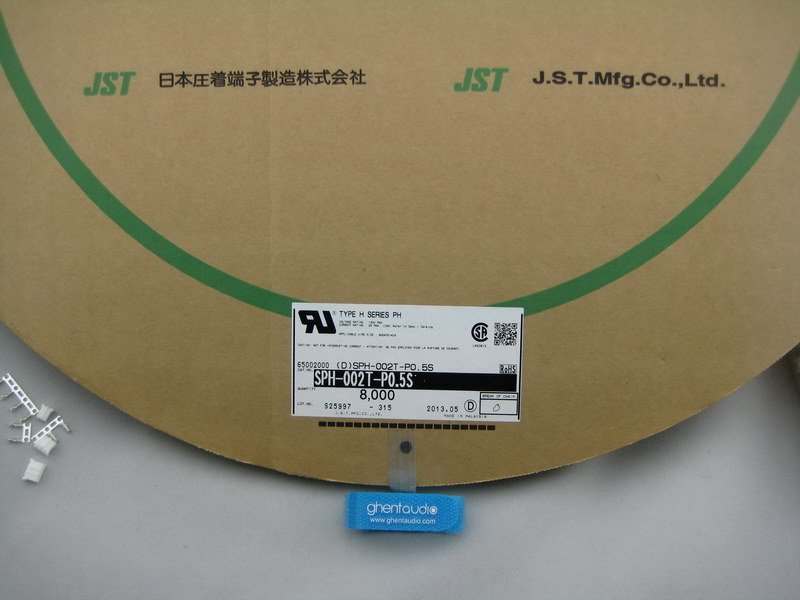

  • Conatct Manufacturer Part No: SPH-002T-P0.5S
  • 2.0mm pitch/Disconnectable Crimp style connector
  • 2, Pitch Spacing: 2mm, Material: Nylon 6.6, Colour: White
  • Applicable wire: AWG #32 to #24, Insulation O.D. 0.9~1.5(mm), Crimp style
  • Contact Plating: Tin, Contact Material: Phosphor Bronze
  • Current rating: 2A AC, DC (AWG #24), Voltage rating: 100V AC, DC
  • Temperature range: -25 ̊C to +85 ̊C(including temperature rise in applying electrical current)
  • Contact resistance: Initial value/ 10m Ω max. After environmental testing/ 20m Ω max.
  • Insulation resistance: 1,000M ohm min., Withstanding voltage: 800V AC/ minute
