PHR-16 Housing & Contact (16-ways)

Name: PHR-16 Housing & Contact (16-ways)
Brand: ghentaudio Do something for HiFi Fans
SKU: PHR-16
Price: 1.15 USD
Availability: InStock

0.0 (0)

0 Sold

$1.15

Each set including:
--- 1 x PHR-16 Housing
--- 16 x Crimp Contacts(pins)

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

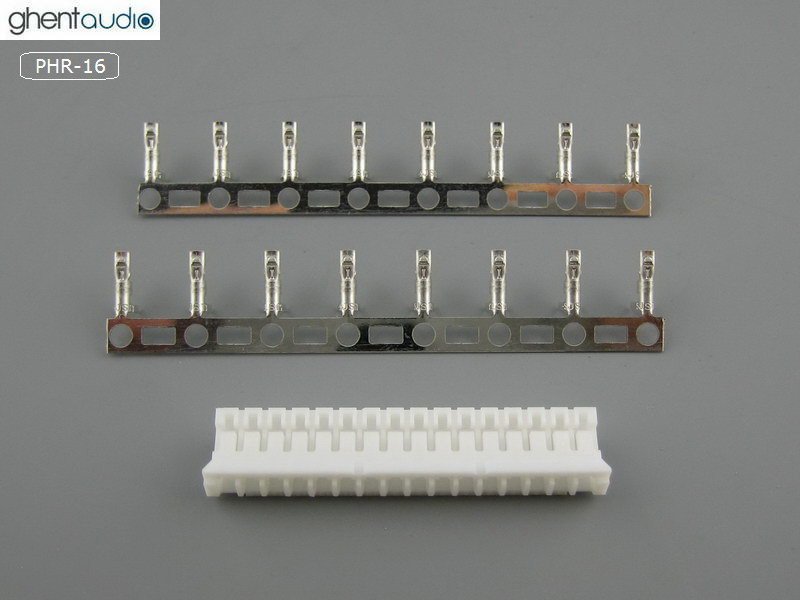

Each set including

1 x PHR-16 Housing
16 x Crimp contacts(pins)

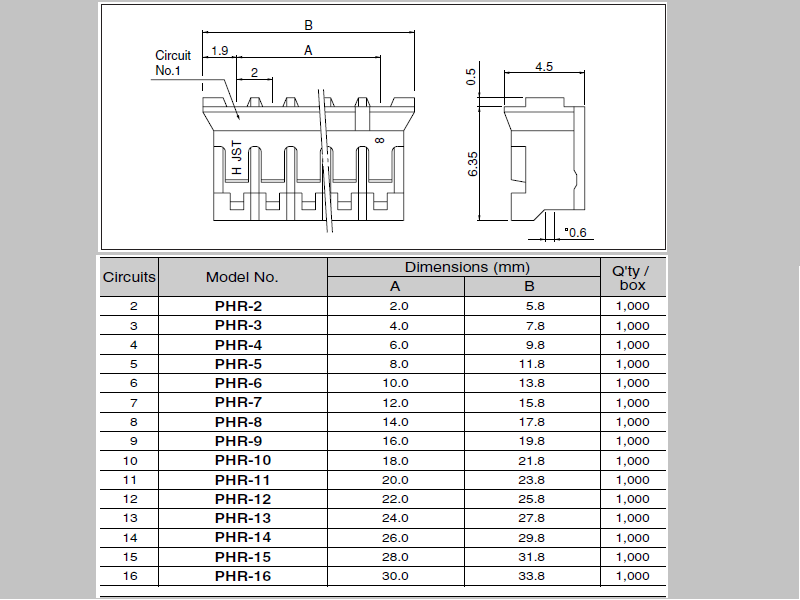

Features & Specifications

JST: JAPAN SOLDERLESS TERMINALS, The Quality Connection

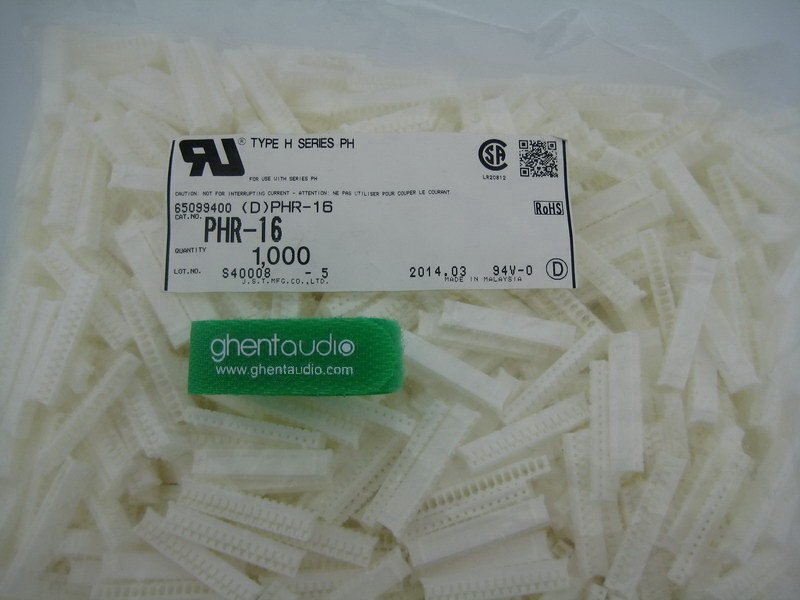

Housing Manufacturer Part No: PHR-16
No. of Ways: 16

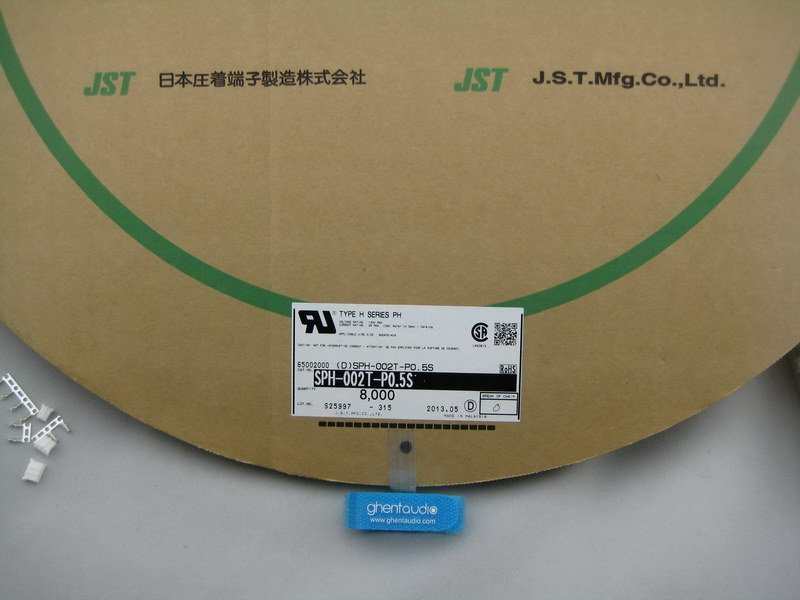

Conatct Manufacturer Part No: SPH-002T-P0.5S
2.0mm pitch/Disconnectable Crimp style connector
2, Pitch Spacing: 2mm, Material: Nylon 6.6, Colour: White
Applicable wire: AWG #32 to #24, Insulation O.D. 0.9～1.5(mm), Crimp style
Contact Plating: Tin, Contact Material: Phosphor Bronze
Current rating: 2A AC, DC (AWG #24), Voltage rating: 100V AC, DC
Temperature range: -25 ̊C to +85 ̊C(including temperature rise in applying electrical current)
Contact resistance: Initial value/ 10m Ω max. After environmental testing/ 20m Ω max.
Insulation resistance: 1,000M ohm min., Withstanding voltage: 800V AC/ minute
